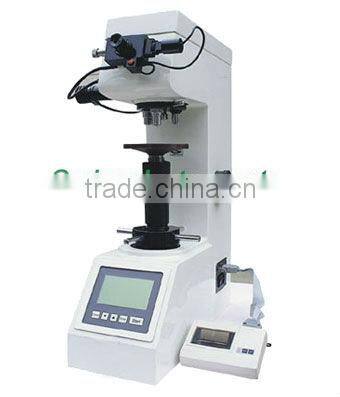

Brinell Hardness Tester Rockwell Hardness Tester Vickers Hardness Tester Leeb Hardness Tester hardness gauge durometerHVS-50 Vickers Hardness Tester
HVS-50 Vickers Hardness Tester is suitable to determine the Vickers hardness of steel, non-ferrous metals, ceramics and treated layers of metal surface, etc.
Feature & Use:
Frictionless loading shaft, high precision testing force
LCD display, menu operating, complete function with data processing, hardness value conversion and so on
Precision conforms to GB/T 4340.2, ISO 6507-2 and ASTM E92
It's suitable to determine the Vickers hardness of steel, non-ferrous metals, ceramics and treated layers of metal surface, etc.
Specifications:
Measuring range: 5-2900HV
Test force: 9.807, 49.03, 98.07, 196.1, 294.2, 490.3N
(1, 5, 10, 20, 30, 50kgf)
Max. height of test piece: 180mm
Depth of throat: 125mm
Magnifications of the measuring system: 125X, 250X
Min. scale value of the optical micrometer: 0.5μm
Power supply: 220V AC or 110V AC, 50 or 60Hz
Dimensions: 580x260x730mm (23x10.3x29 inch)
Weight: Approx. 90kg / 198lb
Standard accessories:
Large flat anvil: 1 pc.
Small flat anvil: 1 pc.
V-notch anvil: 1 pc.
Diamond pyramid penetrator: 1 pc.
Vickers standardized block: 3 pcs.
Printer: 1 pc.
