Brinell Hardness Tester Rockwell Hardness Tester Vickers Hardness Tester Leeb Hardness Tester hardness gauge durometer210HBS-3000 Digital Display Brinell Hardness Tester

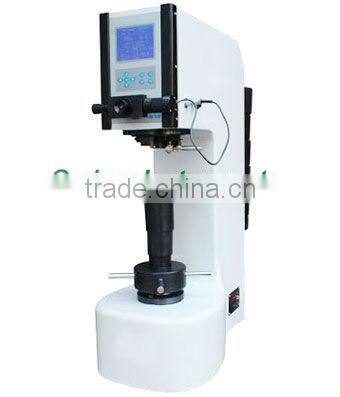

210HBS-3000 Digital Display Brinell Hardness Tester is the newly designed Digital Display Brinell hardness tester. It can be widely applied in the factories, scientific research institutes and laboratories of colleges, for determining the Brinell hardness of unquenched steel.
Feature & Use:
Digital display of Hardness value
Hardness conversion between different hardness scales
Manual turret, weight loading system
Automatic test process, no human operating error
Large LCD display of testing process, easy operation
Precision conforms to GB/T 231.2, ISO 6506-2 and ASTM E10
It's suitable to determine the Brinell hardness of unquenched steel, cast iron, non-ferrous metals and soft bearing alloys, etc.
Specifications
Measuring range: 8-650HBW
Test force: 1838.8, 2451.8, 4903.5, 7355.3, 9807, 29421N
(187.5,250,500,750,1000,3000kgf)
Max. height of test piece: 280mm
Depth of throat: 150mm
Optical magnification: 20X, 40X
Min. Measuring unit: 1μm
Power supply: 220V AC or 110V AC, 50 or 60Hz
Dimensions: 570 x 330 x 910mm (22.5x13x36 inch)
Weight: Approx. 220kg / 484lb
Standard accessories
Large flat anvil: 1 pc.
Small flat anvil: 1 pc.
V-notch anvil: 1 pc.
Tungsten carbide ball penetrator: Φ2.5, Φ5, Φ10mm, 1 pc. each
Brinell standardized block: 2 pcs.
Optional accessory
Rectangle work table: 400 x 150 x 30 mm (16x6x1.2 inch)
Brinell video measuring system
Brinell CCD image processing system
