Specifications
1.HSRD-45 Motor-Driven Superficial Rockwell Hardness Tester2.Test force: 147.1, 294.2, 441.3N (15, 30, 45kgf)

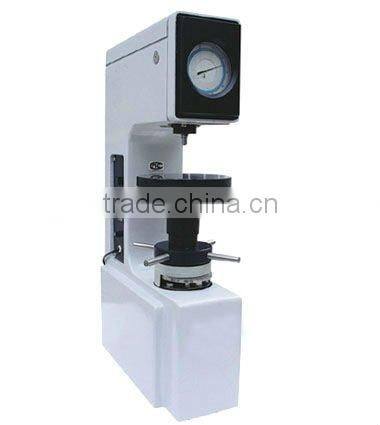

HSRD-45 Motor-Driven Superficial Rockwell Hardness Tester
HSRD-45 Motor-Driven Superficial Rockwell Hardness Tester is suitable to determine the Superficial Rockwell hardness of ferrous metals, alloy steels and hard alloys, as well as treated layers of metal surface, such as carburized layer, nitrided layer and electroplated coating, etc.
Feature & Use:
Frictionless loading shaft, high precision testing force
Automatic testing process, no human operating error
Precision conforms to the Standards of GB/T230.2, ISO 6508-2 and ASTM E18
It's suitable to determine the Superficial Rockwell hardness of ferrous metals, alloy steels and hard alloys, as well as treated layers of metal surface, such as carburized layer, nitrided layer and electroplated coating, etc.
Specifications
Measuring range: 70-91HR15N, 42-80HR30N, 20-77HR45N
73-93HR15T, 43-82HR30T, 12-72HR45T
Test force: 147.1, 294.2, 441.3N (15, 30, 45kgf)
Max. height of test piece: 150mm
Depth of throat: 120mm
Min. scale value: 0.5HRN (T)
Power supply: 220V AC or 110V AC, 50 or 60Hz
Dimensions: 500 x 250 x 700mm (19.7x9.9x27.6 inch)
Weight: approx. 75kg / 165lb
Standard accessories
Large flat anvil: 1 pc.
Small flat anvil: 1 pc.
V-notch anvil: 1 pc.
Diamond cone penetrator: 1 pc
1/16" steel ball penetrator: 1 pc.
Superficial Rockwell standardized block: 4 pcs.
