Specifications
1.HRD-150 Rockwell Motor-Driven Hardness Tester2.Measuring range: 20-88HRA, 20-100HRB, 20-70HRC
3.Depth of throat:130MM

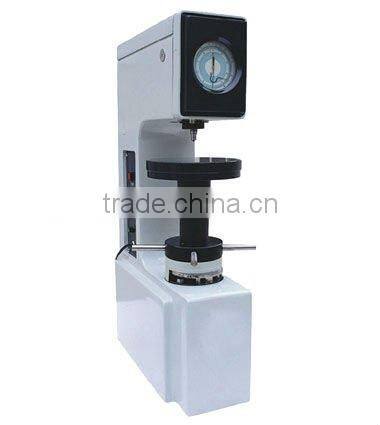

HRD-150 Rockwell Motor-Driven Hardness Tester
HRD-150 Rockwell Motor-Driven Hardness Tester is suitable to determine the Rockwell hardness of ferrous, non-ferrous metals and non-metal materials. It can be widely applied in the Rockwell hardness testing for heat treatment materials, such as quenching, hardening and tempering, etc.
Feature & Use:
Frictionless loading shaft, high precision testing force
Automatic testing process, no human operating error
Precision conforms to the Standards of GB/T230.2, ISO 6508-2 and ASTM E18
It's suitable to determine the Rockwell hardness of ferrous, non-ferrous metals and non-metal materials. It can be widely applied in the Rockwell hardness testing for heat treatment materials, such as quenching, hardening and tempering, etc.
Specifications
Measuring range: 20-88HRA, 20-100HRB, 20-70HRC
Test force: 588.4, 980.7, 1471N (60, 100, 150kgf)
Max. height of test piece: 170mm
Depth of throat: 130mm
Min. scale value: 0.5HR
Power supply: 220V AC or 110V AC, 50 or 60Hz
Dimensions: 500 x 250 x 700mm (20x9.9x27.6 inch)
Weight: approx. 75kg / 165lb
Standard accessories
Large flat anvil: 1 pc.
Small flat anvil: 1 pc.
Large V-notch anvil: 1 pc.
Diamond cone penetrator: 1 pc.
1/16" steel ball penetrator: 1 pc.
Rockwell standardized block: 5 pcs.
