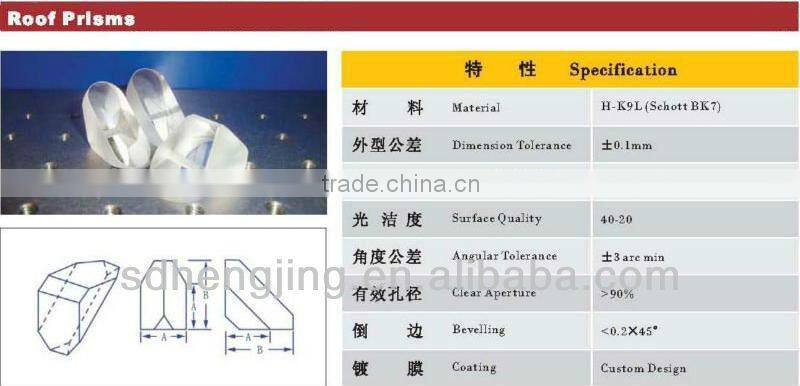

Help CenterRoof Prisms
Related Products
Specifications
1.Material:BK7, H-K9L ,etc2.Dimension Tolerance:+0.0, -0.1mm
3.Deviation: +/-5 arc seconds
4.high quality
Specifications:
| Material: | BK7, H-K9L ,UV fused silica,Corning7980, etc |
| Dimension Tolerance: | +0.1, -0.1mm |
| Surface quality: | 60-40 S/D |
| Surface flatness: | λ/2 @ 632.8nm |
| Angle Tolerance: | ±3 arc min |
| Clear Aperture: | >85% of dimension |
| Coating: | Upon requirement |
specification of the Related prisms:
60 degree prisms
Dimensional details
Available selection ranges:
- Side length: 5 mm – 50 mm
- Height: 5 mm – 50 mm
Tolerances
- Planarity of polished surface or wavefront deformation, resp.: up to λ/10 depending on size details
- Angular accuracy for 45degree and 90degree: ± 3′ standard value, up to ± 1 optionally
90 degree prisms
Dimension details
Available selection ranges:
- Side length: 5 mm – 50 mm
- Height: 5 mm – 150 mm
Tolerances
- Planarity of polished surface or wavefront deformation, resp.: up to λ/10 depending on size details
- Angular accuracy for 45degree and 90degree: ± 3′ standard value, up to ± 1 optionally
Rhomboid prisms
Dimensional details
Available selection ranges:
- Side length: 5 mm-50 mm
- Height: 5 mm-150 mm
Tolerances
- Planarity of polished surface or wavefront deformation, resp.: up to λ/10 depending on size details
- Angular accuracy for 45degree and 90degree: ± 3´standard value, up to ± 1´ optionally
Dove prisms
Dimensional details
Available selection ranges:
- Side length: 5 mm – 50 mm
- Height: 5 mm – 150 mm
Tolerances
- Planarity of polished surface or wavefront deformation, resp.: up to λ/10 depending on size details
- Angular accuracy for 45degree and 90degree: ± 3′standard value, up to ± 1 optionally
Special prisms
Dimensional details
Randomly selectable within limits as follows:
- Side length: 5 mm – 50 mm
- Height: 5 mm – 150 mm
Tolerances
- Planarity of polished surface or wavefront deformation, resp.: up to λ/10 depending on size details
- Angular accuracy for 45 degree and 90degree: ± 3´ standard value, up to ± 1” optionally
our company :
We are specialized in the production of various specifications of optical components according to the customers' demand, And we are committed our standard more than eight years to offering our customers with excellent products, reasonable prices and high level of service.
our production engineering :
