Plumb Level Optical Components:Roof Prism High Precision

Plumb Level Optical Components:Roof Prism High Precision photo-1
US$ 0.5 - 50 MOQ: 10 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
Sdhengjing
Model Number:
Customization
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Shandong, China
Brand Name Sdhengjing
Model Number Customization
Material optical glass
Surface Quality 10/5
Dimension Tolerance +0.0/-0.2mm
Angle Tolerance Up to 10 arc seconds
Flatness 1/10 Lambda

Specifications

1 High Precision
2 Competitive Price
3 Quick Delivery
4 Custom Size Available
5 Good service

Description:





Roof Prism







With the roof surface, these prisms are used to invert and reverse the image. Sinoprime Optic can provide roof right angle prisms, roof penta or half penta prisms, Schmidt prisms, or other roof prism specified by customers.







Features: High Precision Dimension Control,Optional Substrate Material.







Applications: Terrestrial telescope, Imaging system, Viewing system, Range finder.







Roof prism is the hypotenuse surface of right anlge prisms are replaced by the reflective surface mutually vertical, a totally internally reflecting roof attached to hypotenuse surface. It can invert and reverse an image, also, deflect the image 90 degree. Therefore, the degree of cleaning and quality of wedge surface are very important. it is often used in terrestrial telescopes, viewing systems and rangefinders.







 Capabilities



Material BK7, Fuse Silica, other optical glass
Dimension Tolerance +0.0/-0.2mm
Clear Aperture >90%
Angle Tolerance up to 10 arc seconds
Roof Angle Tolerance

 up to 5 arc seconds

Flatness

up to λ/10 632.8nm

Surface Quality up to 20/10 scratch and dig

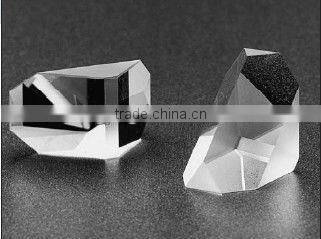

Plumb Level Optical Components:Roof Prism High precision





About US:



We are specialized in the production of various specifications of optical components according to the customers' demand,  And we are committed our standard more than eight years to offering our customers with excellent products, reasonable prices and high level of service.



Plumb Level Optical Components:Roof Prism High precision
