fused silica optical right angle prism
We are the manufacturer of optical line, that is widely used in kinds of surving equipment /camera line/
lensmeter/Refractometer/Microscope/Electric Total Station/luminance colorimeter and so on.
60 degree triangle Equilateral Dispersing Prism
Dispersing Prism also named equilateral Prisms is a normally used as dispersing prisms. For all standard BK7 prism, high Nd SF2 and F2 prism are offered to increase the dispersive power .
Worldhawk offers many types of high precision prisms including Right Angle Prisms, Dove prisms, Penta Prisms, Roof Prisms, Beamsplitter, Wedge prisms, Rhomboid Prisms, Corner Cube, Dispersing Prism etc
Applications: Prisms are widely used in optical system, which can reflect, deviate and rotate beams of light as well as dispersing their wavelengths
Specification
| Material | BK7, H-K9L ,UV fused silica,Corning7980, etc |
| Dimension Tolerance | ±0.02mm |
| Thickness Tolerance | ±0.05mm |
Surface Quality |
5/10 |
| Surface Accuracy | λ/10 |
| Clear aperture | >90 |

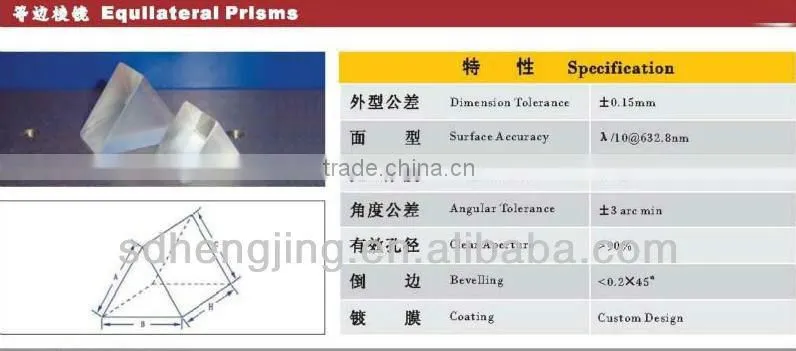

Optical Equilateral Prism :
Specifications are as follows:
Materical:BK6,UVFS or other optical glass
Angle tolerance:5''-3'
Angle Acuracy<10 arc sec
Clear aperture>90%
Surface Flatness: at 632.8nm lambda to lambda /20 per 25mm
Coating: HR,PR AR etcor uncoated
our production engineering :
Overseas exhibition :
Other products are as follows:
-right angle prism
-penta angle prism
-wedge prism
-corner cube prism
-dove prism
-tapered prism
cylindrical prism
triangular prism
Q1: Are you a factory or trading company ?
A: We are a factory.We have been in optics field for 10 years
Q2: Where is your factory located ? How can i visit there ?
A:It is located in North-South 1st Road ,xiangguang Economic Development Zone,Yanggu county,Shandong Province,China
Welcome to visit our factory anytime
Q3: Can I customize the products based on my need?
A: Yes, we can customize the material, specifications and optical coating for your optical components based on your needs.
Q4: What's your MOQ?
A:
(1) For inventory, the MOQ is 1pcs.
(2) For customized products, the MOQ is 10pcs-20pcs.
Q5: Can i get the sample to test before the mass production ?
Sure ,we would like to offer the sample for you to test our quality before large order
Q6: How to pay?
A: T/T, Paypal, Western Union, Secure payment, Credit card and Assurance payment on Alibaba and etc..
Q7: What's the delivery time?
A:
For inventory: the delivery is 2 workdays after you place the order.
For customized products: the delivery is 2 or 4 workweeks after you place the order.
If you have any requests for prisms ,please contact me no hesitate
