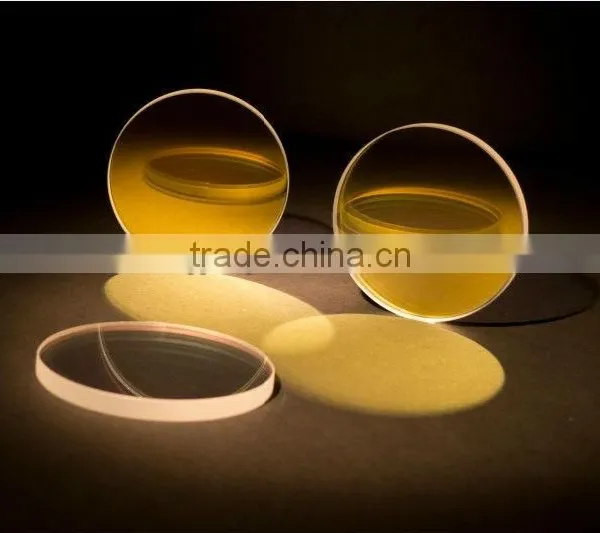

BK7round optical windows,Dia 31X4.6mm Flat Dielectric Mirrors
- 10000 Piece / Pieces per Month
- Qingdao
- T/T L/C D/P D/A Credit Card PayPal
Product Details
Place of Origin: | Shandong, China | Brand Name: | SYCCO | Model Number: | Customization |
Product Description
Specifications :
Materials | BK7, H-K9L ,UV fused silica,Corning7980, etc |
Diameter Tolerance | Minimum±0.01mm |
Thickness Tolerance | ±0.05mm |
Centring Error | <3 arc minute |
Surface Quality | 20-10 for laser application 60-40 for instrumental application |
Surface Figure | λ/10@633nm |
Clear Aperture | Central 90 of diameter |
Coating | HR coating |
Optical Flat Dielectric Mirrors:
Optical Mirrors are designed to reflect light for a variety of applications, including beam steering, interferometry, imaging, or illumination. Optical Mirrors are used in a wide range of industries, such as life sciences, astronomy, metrology, semiconductor, or solar.
Dielectric High Reflectance Optical Mirrors is belonged in reflective coating.We can offer you different mirrores with different shapes or upon your request.
Application:
Optical Mirrors are ideal for applications requiring a constant coefficient of thermal expansion between the Optical Mirror and the mount. Optical Mirrors with a concave surface are ideal for light focusing applications.
There are other products supplied.
Our company :
We are specialized in the production of various specifications of optical components according to the customers' demand, And we are committed our standard more than eight years to offering our customers with excellent products, reasonable prices and high level of service.
Welcome to China and visit our factory. Hope that our cooperation ever lasting!
our production engineering :
packing :
Overseas exhibition :
Q1: Are you a factory or trading company ?
A: We are a factory.We have been in optics field for 10 years
Q2: Where is your factory located ? How can i visit there ?
A:It is located in North-South 1st Road ,xiangguang Economic Development Zone,Yanggu county,Shandong Province,China
Welcome to visit our factory anytime
Q3: Can I customize the products based on my need?
A: Yes, we can customize the material, specifications and optical coating for your optical components based on your needs.
Q4: What's your MOQ?
A:
<![if !supportLists]>(1) <![endif]> For inventory, the MOQ is 1pcs.
(2) For customized products, the MOQ is 10pcs-20pcs.
Q5: Can i get the sample to test before the mass production ?
Sure ,we would like to offer the sample for you to test our quality before large order
Q6: How to pay?
A: T/T, Paypal, Western Union, Secure payment, Credit card and Assurance payment on Alibaba and etc..
Q7: What's the delivery time?
A:
For inventory: the delivery is 3 workdays after you place the order.
For customized products: the delivery is 2 or 4 workweeks after you place the order.
Q8: How to ensure the safety of payment?
A: Hengjing is the gold supplier of aibaba for more than 4 years and supports Alibaba Trade Assurance. We value our reputation in this field
