Survey Lenses:
We are specialized in the production of various specifications of optical components according to the customers' demand, And we are committed our standard more than eight years to offering our customers with excellent products, reasonable prices and high level of service.
Optical Cylindrical lens
Optical Plano-Convex/aspheric Cylindrical Lens(BK7) , Ge, UV-grade fuse silica (JGS1, JGS2 and JGS3) and other optical glass
Shandong Yanggu Constant Crystal Optics Inc. can offer many kinds of normal cylindrical lenses.Including Plano-Convex, Plano-Concave, Bi-Convex, Bi-Concave, Meniscus, Aspherical Cylindrical lens, Toroidal mirror etc.. Cylindrical lens is used to correct astigmatism in the eye, and, in rangefinders, to produce astigmatism, stretching a point of light into a line...They are available in either plano concave or plano convex configurations.
Plano convex cylinder lenses are ideal for UV beam shaping, or for applications operating in harsh or rugged environments. Focusing light in only one dimension, cylinder lenses are commonly used with linear sensor arrays, or to create a line from a laser source.
Plano-Convex Lens
| Length(mm) | width (mm) | center thickness (mm) | edge thickness (mm) | curve radius (mm) | effective focal length (mm) |
| 20 | 15 | 4 | 2 | 15.49 | 30 |
| 17 | 17 | 4 | 3.4 | 29.16 | 56.5 |
| 20 | 15 | 3.3 | 1.41 | 15.85 | 30.7 |
| 19.8 | 15 | 4 | 2 | 15.49 | 30 |
| 45 | 10 | 4.31 | 2 | 6.56 | 12.7 |
| 12.5 | 9 | 4.63 | 2 | 5.17 | 10 |
| 10 | 4 | 2.76 | 2 | 2.98 | 5.8 |
| 12.5 | 7 | 3.93 | 2 | 4.13 | 8 |
| 25 | 5 | 3.15 | 2 | 3.28 | 6.35 |
Plano-Concave Lens
| Length(mm) | width (mm) | center thickness (mm) | edge thickness (mm) | curve radius (mm) | effective focal length (mm) |
| 4 | 2.07 | 12.5 | 3.2 | 2.31 | 2 |
| 5.8 | 2.99 | 10 | 4 | 2.4 | 2 |
| 12.7 | 6.56 | 10 | 10 | 3.78 | 2 |
| 20 | 10.34 | 25 | 15 | 4.73 | 2 |
| 22.2 | 11.47 | 40 | 12.5 | 3.54 | 2 |
| 19 | 7.75 | 25 | 19 | 7.9 | 2 |
| 20 | 7.75 | 70 | 15 | 4.73 | 2 |
| 12.7 | 7.75 | 25 | 11 | 4.31 | 2 |
| 15 | 7.75 | 20 | 10 | 3.44 | 2 |
1.We are manufacturer,so our prices are much more competitive and the production can be fairly controlled .
2.We specialize in making costumer designed products for 10 years ,so your drawings ,products pictures and samples are warmly welcomed !And your special design will be well protected by us!

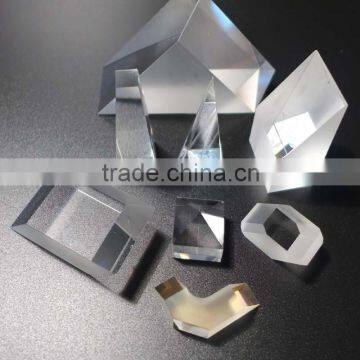

3.We can supply variety of optical materials :JGS1,K9,B270,7980.N-BK7 ,and different products: lens,prisms,windows,mirrors ,beam splitters ,filters ,wave plates.
4.Your inquiry will be reply within 12 hours .
Q1: Are you a factory or trading company ?
A: We are a factory.We have been in optics field for 10 years
Q2: Where is your factory located ? How can i visit there ?
A:It is located in North-South 1st Road ,xiangguang Economic Development Zone,Yanggu county,Shandong Province,China
Welcome to visit our factory anytime
Q3: Can I customize the products based on my need?
A: Yes, we can customize the material, specifications and optical coating for your optical components based on your needs.
Q4: What's your MOQ?
A:
<![if !supportLists]>(1) <![endif]> For inventory, the MOQ is 1pcs.
(2) For customized products, the MOQ is 10pcs-20pcs.
Q5: Can i get the sample to test before the mass production ?
Sure ,we would like to offer the sample for you to test our quality before large order
Q6: How to pay?
A: T/T, Paypal, Western Union, Secure payment, Credit card and Assurance payment on Alibaba and etc..
Q7: What's the delivery time?
A:
For inventory: the delivery is 3 workdays after you place the order.
For customized products: the delivery is 2 or 4 workweeks after you place the order.
Q8: How to ensure the safety of payment?
A: Hengjing is the gold supplier of aibaba for more than 4 years and supports Alibaba Trade Assurance. We value our reputation in this field
