P-11-Y Pin Type Insulator
US$ 1.3 - 1.5
MOQ: 7056 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Jiangxi, China
Brand Name:
TSBXJ
Model Number:
P-11-Y
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen Shanghai Ningbo Qingdao Fuzhou
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Pin Type Porcelain InsulatorUS$ 1.3 - 1.5MOQ: 7056 Pieces -
Pin Type Porcelain InsulatorsUS$ 1.3 - 1.5MOQ: 7056 Pieces
-
Porcelain InsulatorsUS$ 1.3 - 1.5MOQ: 7056 Pieces
-
11kv Pin Porcelain InsulatorUS$ 1.3 - 1.5MOQ: 7056 Pieces
-
Russia Type 11kv Pin Type Insualtor for High VoltageUS$ 1.8 - 3.5MOQ: 5760 Pieces
Place of Origin
Jiangxi, China
Brand Name
TSBXJ
Model Number
P-11-Y
Type
Insulator
Material
Porcelain
Application
High Voltage
Rated Voltage
11kV
Tensile Strength
11kN
Product Description in Detail

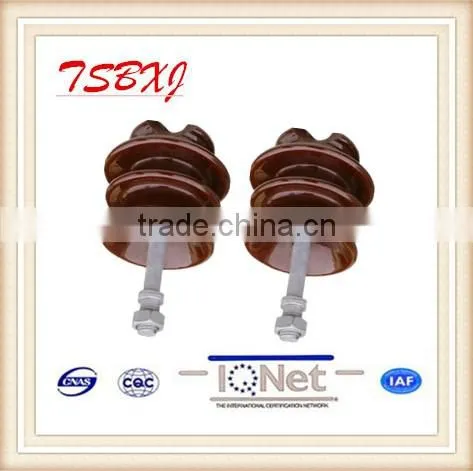

Pin type insulator, P-11-Y
size:D140*H133*L240mm
Specification
| Type | P-11-Y | ||||
| Main Dimensions(mm) | D | 140 | |||
| H | 133 | ||||
| Creepage Distance | 240 | ||||
| Power-frequency Puncture Voltage(kV) | 150 | ||||
| Average flashover voltage | Power-frequency | Dry(kV) | 80 | ||
| Wet(kV) | 45 | ||||
| Critical-Impulse wave | Positive(kV) | 80 | |||
| Negative(kV) | 80 | ||||
| Radio-Influence-voltage Data | Test Voltage to ground(kV) | 15 | |||
| Maximum RIV at 1000kHz(uV) | 80 | ||||
| Electro mechanical Failing Load(kN) | 11 | ||||
| Mechanical Impact Strength(n.m) | |||||
| Unit Weight(kg) | 1.8 | ||||
Procedures
Features
1).Porcelain insulators are mainly used on high-voltage overhead transmission and distribution lines to support and insulate conductors.
2).Pin type insulators usually serve in coastlands and rainy areas with large creepage distance structure and well flashover performance in wet condition.
our products applies to power station,transmission tower/iron tower ,telegraph pole/wire pole,communciation,transformer,cable/electric cable,wire/electric wire,switch cabinet,meter box,etc.
Packing List
| Part No. | size of crate (mm) |
pcs /crate |
pcs /20ft container |
total crate (crate) |
size of pallet (mm) |
total pallet(pallet) | G.W /case |
N.W /case |
G.W /20'FCL |
N.W /20'FCL |
|
P-11-Y with pin |
615*305*305 | 16 | 7056 | 441 |
A:1230*915*80 B:1230*1220*80 |
8 8 |
43.5 |
40.8 |
19343.5 |
17992.8 |
|
