porcelain insulators
USD $5.3 - $5.4
/ Piece
3456 Pieces(Min.Order)
- 200000 Piece / Pieces per Month
- Shenzhen Shanghai Ningbo Qingdao Fuzhou
- T/T Credit Card
You May Like
-
Wenzhou Yika 7.2KV High Voltage Fuse 63 Amp
-
3240 Epoxy Board, High-quality Insulation Material, Flexible Customization, Widely Applicable 3240 Epoxy Sheet
-
Chinese Factory Electrical Insulation Brown 3025 Phenolic Bakelite Resin Cotton Cloth Fabric Laminate Board Sheet Phenolic Board
-
4x8 fiberglass sheets g10 epoxy glass fiber board g10 material
-
Factory Price Bakelite Decorative HPL Press plates bakelite sheet
-
Black G10 Sheet - High Quality Carbon Fiber G10 FR4 Sheets - Precision-made PCB Materials
Product Details
| Place of Origin: | Jiangxi, China | Brand Name: | TSBXJ | Model Number: | 56-3 |
| Type: | Insulator | Material: | Porcelain | Application: | High Voltage |
| Rated Voltage: | 33kV | Tensile Strength: | 13.2kN |
Product Description
Product Description in Detail

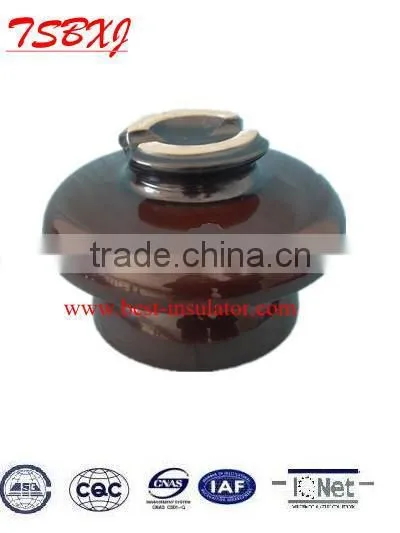

Pin type insulator, 56-3
size:D267*H191*L533mm
Specification
| Type | 56-3 | ||||
| Main Dimensions(mm) | D | 267 | |||
| H | 191 | ||||
| Creepage Distance | 533 | ||||
| Power-frequency Puncture Voltage(kV) | 165 | ||||
| Average flashover voltage | Power-frequency | Dry(kV) | 125 | ||
| Wet(kV) | 80 | ||||
| Critical-Impulse wave | Positive(kV) | 200 | |||
| Negative(kV) | 265 | ||||
| Radio-Influence-voltage Data | Test Voltage to ground(kV) | 30 | |||
| Maximum RIV at 1000kHz(uV) | 200 | ||||
| Electro mechanical Failing Load(kN) | 13.2 | ||||
| Mechanical Impact Strength(n.m) | |||||
| Unit Weight(kg) | 7.0 | ||||
Procedures
Features
1).Porcelain insulators are mainly used on high-voltage overhead transmission and distribution lines to support and insulate conductors.
2).Pin type insulators usually serve in coastlands and rainy areas with large creepage distance structure and well flashover performance in wet condition.
our products applies to power station,transmission tower/iron tower ,telegraph pole/wire pole,communciation,transformer,cable/electric cable,wire/electric wire,switch cabinet,meter box,etc.
Packing List
| Part No. | size of crate (mm) | pcs /crate | pcs /20ft container | total crate (crate) | size of pallet (mm) | total pallet(pallet) | G.W /case | N.W /case | G.W /20'FCL | N.W /20'FCL | |
56-3 with pin | 490*495*225 | 4 | 1728 | 432 | A:980*990*1205 B:980*990*980 |
12 12
| 35.8 | 32.8 | 15705.6 | 14169.6 | |
Factory show
welcome for your inquiry!
Contact Us
- Pingxiang Best Insulator Group Co., Ltd.
- Contact nameZhiWei Luo
- Phone86-0799-6378286, 6378186
- AddressFutian Industrial Park, Pingxiang,Jiangxi
