Carbon Fiber Long Tube Air Supply Trolley for 4 Cylinders - Ayonsafety

FOB Price

Negotiable / Set

1 Set(Min. Order)

Port Shanghai
Payment TermsT/T L/C D/P D/A Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Shanghai, China		Brand Name	AS
Model Number	RHZKF-3/30

Product Description

Long Tube Breathing Apparatus Cart

Brief Introduction:

Long Tube Breathing Apparatus is a kind of respiratory protection device with compressed air as the source of supply and for conveying clean air through a long tube(provide gas for pneumatic equipment can be called airpack).

Feature:

Suitable for narrow working environment.
Material of trolley is stainless steel.
The cylinder can be replaced at work to provide continuous gas supply.

Description:

Model		RHZKF 4*6.8/30 CC	RHZKF 4*9.0/30 CC
Air source	Cylinder material	Carbon Fiber Winding Cylinder with Aluminum Liner
	Cylinder Rated Pressure (bar)	300
	Cylinder Nominal Capacity (L)	4*6.8	4*9.0
	Use of Time for One Person(min)	272	360
Pressure reducer	Output pressure (bar)	6~9
	Output flow (L/min)	≥600
Alarm apparatus	Alarm pressure (bar)	40~60
Clothing band	Dress Belt Tension (Kgf)	70
Air hose	Extended distance (m)	30+210 m/60+215
Supply valve	Maximum air supply (L/min)	≥300
Complete machine	Exhalation resistance (Pa)	<700
	Inhalation resistance (Pa)	0~500
	Size	950800540 mm
	Weight	72kg	78kg

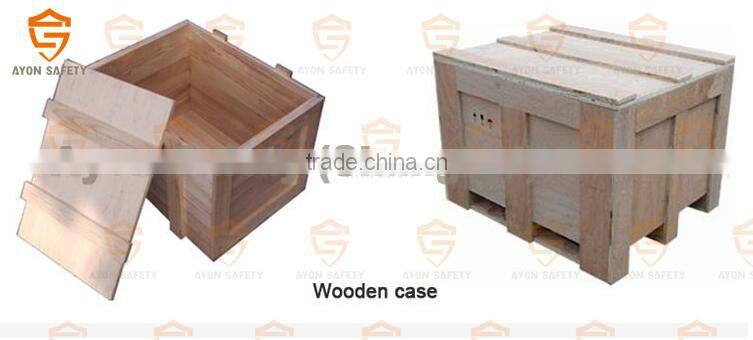

Packing:

Our certifications

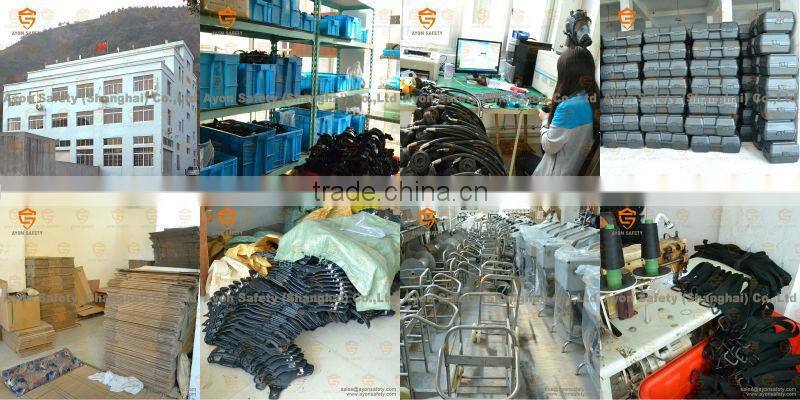

Our Manufacture and Warehouse

Our Safety Show

Our delivery process
