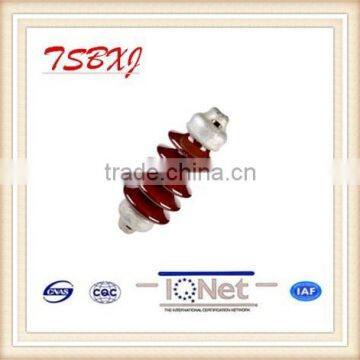

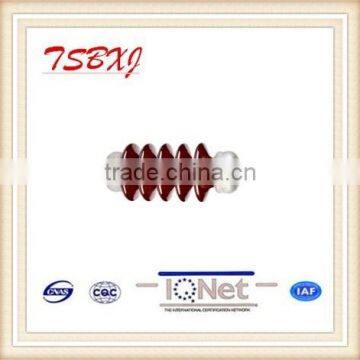

Line post insulator applied with ANSI standard
- 500000 Piece / Pieces per Month
- Shanghai or shenzhen
- T/T
You May Like
Product Details
| Place of Origin | Jiangxi, China | Brand Name | TSBXJ, TSBXJ | |
| Model Number | 57-3L/S, 57-3L | Type | Other, Insulator, Insulating Ceramics | |
| Material | Other, Porcelain, Porcelain | Application | High Voltage | |
| Rated Voltage | 33kV | Tensile Strength | 12.5KN |
Product Description
Post Insulators For High Voltage(ANSI)
ANSI Class | 57-3 |
Creepage Distance (mm) | 737 |
Dry Arcing Distance(mm) | 311 |
Cantilever Strength (KN) | 12.5 |
Low Frequency Dry Flashouer(kv) | 125 |
Low Frequency Wet Flashover (kv) | 100 |
Critical Impulse Flashover Pos(kv) | 210 |
Critical Impulse Flashover Neg(kv) | 260 |
Test Voltage To Ground(kv) | 30 |
Maximum RIV at 1000KHZ (uv)1000KHZ | 200 |
Net Weight Each Approx(kg) | 11 |
Number in standard package | 3 |
