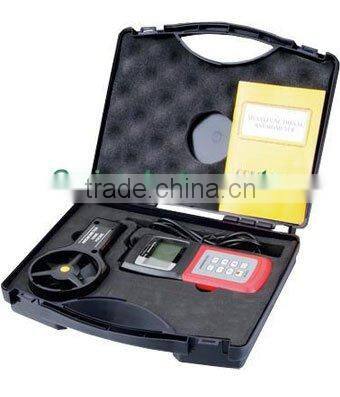

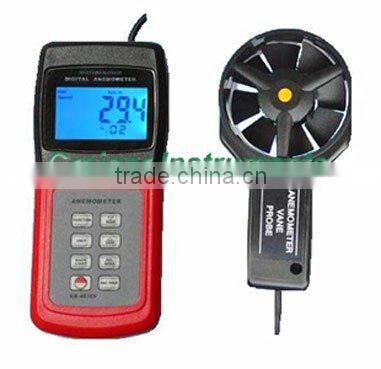

Digital Anemometer AM4836V

Specifications

Wholesale Digital Anemometer AM4836V

I.Introduction:

Installation, debug and repair for refrigeration industry, ventilation duct, environment monit-or, navigation measurement, weather forecast, collection of the weather datum for outdoor busywork and fire department.

II.Parameters:

Display 0.5"(13mm)4-digitLCD

Measurement unist Air Velocity:m/s,km/h,ft/min,knots

Air Flow:CMM(m3/min) CFM(ft3/min)

Beaufort scale:Force

Wave Height:m

TEMP: C&F

Data hold MaxIMum Value

Data memorized 24groups

Sampling rate reading per second approx

Sensors air velocity/flow sensor:

Conventional angled vane arms

Waith low-friction ball bearing

Temperature sensor:Precision thermistor

Automatic Power off 0-9minutes set by users

Data output RS232C serial interface

Operating temperature 14 to140F(-10 to 60C)

Operating humidity Max.80%RH

Power supply 260g(0.571b)including batteries&probe

Dimensions main instrument: 156x67x28mm(6.1x2.6x1.1)

Air Velocity Range Resolution Accuracy

m/s (meters per sec) 0.4-45.0 0.1 m/s ± (2%+0.1m/s)

km/h (kilo-meters/hour) 1.4-162.0 0.1 km/hr ±(2% +0.1km/hr)

ft/min (feet per minute) 80-8860 0.1 ft/min ±(2% + 1ft/min)

knots (nautical MPH) 0.8-88.0 0.1 knots ±(2% +0.1 nots)

Air Flow

CMM (cubic meters/min) 0-9999 0.001 to1 ±(2% +1m?3;/min)

CFM (cubic ft/min) 0-9999 0.001 to1 ±(2% +1ft?3;/min)

Beaufort Scale 0-12 0.1 ±0.5

Direction 0-360° 22.5° ±22.5°

Wave Height 0-14 0.1 ±0.1

Air Temperature
14 - 140F 0.1F 0.9F
-10-60C 0.1 C 0.5C
