US$ 4.1 - 4.2
MOQ: 5760 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Jiangxi, China
Brand Name:
TSBXJ
Model Number:
XP-70
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen Shanghai Ningbo Qingdao Fuzhou
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Electrical Ceramic InsulatorsUS$ 4.1 - 4.2MOQ: 5760 Pieces -
Insulator U70BLUS$ 4.1 - 4.2MOQ: 5760 Pieces
-
Hot Sales Disc Insulator 52-3US$ 4.1 - 4.2MOQ: 5760 Pieces
-
Hot Sales Disc InsulatorUS$ 4.1 - 4.2MOQ: 5760 Pieces
-
Hot China Products HV Electrical Porcelain InsulatorUS$ 4 - 4.32MOQ: 2880 Pieces
Place of Origin
Jiangxi, China
Brand Name
TSBXJ
Model Number
XP-70
Type
Insulator
Material
Porcelain
Application
High Voltage
Rated Voltage
11kV
Tensile Strength
70kN
Product Description in Detail

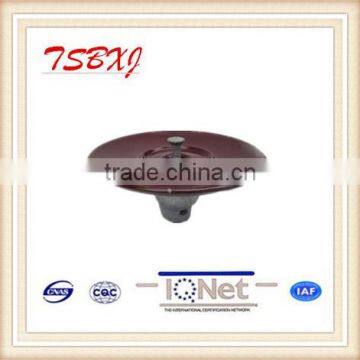

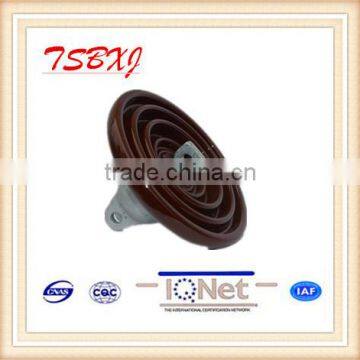

Disc insulator,suspension insulator, XP-70 series
size:D254*H146*L295/320mm
Specification
| Type | XP-70 | ||||
| Main Dimensions(mm) | D | 254 | |||
| H | 146 | ||||
| Creepage Distance | 295/320 | ||||
| Power-frequency Puncture Voltage(kV) | 110 | ||||
| Average flashover voltage | Power-frequency | Dry(kV) | 80 | ||
| Wet(kV) | 50 | ||||
| Critical-Impulse wave | Positive(kV) | 125 | |||
| Negative(kV) | 130 | ||||
| Radio-Influence-voltage Data | Test Voltage to ground(kV) | 10 | |||
| Maximum RIV at 1000kHz(uV) | 50 | ||||
| Electro mechanical Failing Load(kN) | 67 | ||||
| Mechanical Impact Strength(n.m) | 5.5 | ||||
| Unit Weight(kg) | 4.6/5.3 | ||||
Procedures
Features
1).Disc suspension porcelain insulators are mainly used on high-voltage overhead transmission and distribution lines to support and insulate conductors.
2).The normal type disc suspension porcelain insulators include standard type and large creepage distance type insulators,which are widely used in clean areas and light pollution areas.
our products applies to power station,transmission tower/iron tower ,telegraph pole/wire pole,communciation,transformer,cable/electric cable,wire/electric wire,switch cabinet,meter box,etc.
Packing List
| Part No. | size of crate (mm) | pcs /crate | pcs /20ft container | total crate (crate) | size of pallet (mm) | total pallet(pallet) | G.W /case | N.W /case | G.W /20'FCL | N.W /20'FCL | |
| XP-70 | 470*450*270 | 6 | 2880 | 480 | A:940*900*80 B:940*1350*80 | A:12 B:12 | 33 | 27.6 | 17819 | 15840 | |
Factory show
welcome for your inquiry!
