Hot Sales Disc Insulator U120BP

Pingxiang Best Insulator Group Co., Ltd.
Hot Sales Disc Insulator U120BP thumbnail-1
Hot Sales Disc Insulator U120BP thumbnail-2
Hot Sales Disc Insulator U120BP photo-1

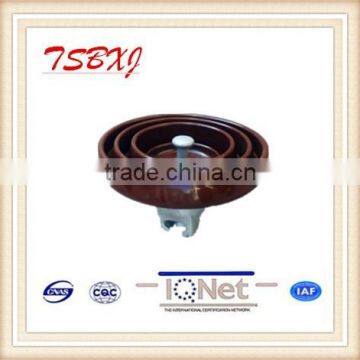

Hot Sales Disc Insulator U120BP photo-2
US$ 8 - 8.3 MOQ: 4608 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Jiangxi, China
Brand Name:
TSBXJ
Model Number:
U120BP
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen Shanghai Ningbo Qingdao Fuzhou
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Jiangxi, China
Brand Name TSBXJ
Model Number U120BP
Type Insulator
Material Porcelain
Application High Voltage
Rated Voltage 33kV
Tensile Strength 120kN

Product Description in Detail

Disc insulator,suspension insulator, U120BP series

size:D255/280*H146*L432/450mm



Specification



TypeU120BP
 Main Dimensions(mm)D255/280
H146
Creepage Distance432/450
Power-frequency Puncture Voltage(kV)120
Average flashover voltagePower-frequencyDry(kV)80
Wet(kV)50
Critical-Impulse wavePositive(kV)120
Negative(kV)120
Radio-Influence-voltage DataTest Voltage to ground(kV)10
Maximum RIV at 1000kHz(uV)50
Electro mechanical Failing Load(kN)120
Mechanical Impact Strength(n.m) 7.0
Unit Weight(kg)7.6/8.2







Procedures

Hot sales disc insulator U120BP



Features

1).Disc suspension porcelain insulators are mainly used on high-voltage overhead transmission and distribution lines to support and insulate conductors.
2).The fog type insulators usually serve in coastlands and rainy areas with large creepage distance structure and well flashover performance in wet condition.

our products applies to power station,transmission tower/iron tower ,telegraph pole/wire pole,communciation,transformer,cable/electric cable,wire/electric wire,switch cabinet,meter box,etc.



Packing List



Part No.size of crate
(mm)		pcs
/crate		pcs
/20ft container		total crate
(crate)		size of pallet
(mm)

total pallet

(pallet)

G.W
/case		N.W
/case		G.W
/20'FCL		N.W
/20'FCL

U120BP

370*455*27042304536A:910*1110*115024

33.4/

35.8

30.4/

32.8

19358.4/

20740.8

17510.4/

18892.8









Hot sales disc insulator U120BP



Factory show

Hot sales disc insulator U120BP



           welcome for your inquiry!
