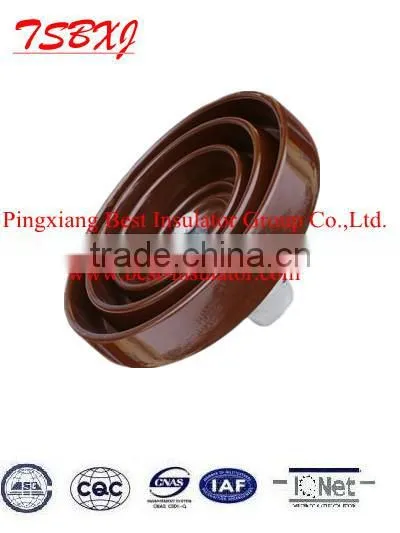

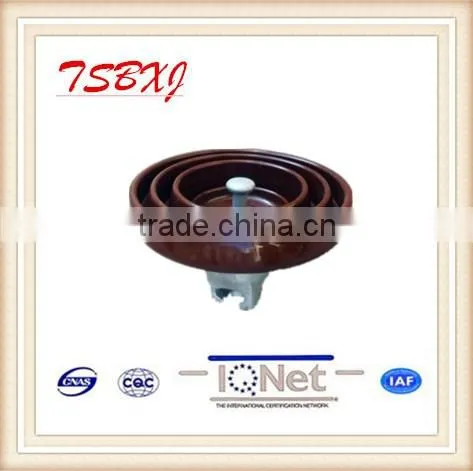

Disc insulator,suspension insulator, XHP1-120 series
size:D255/280*H146*L432/450mm
Specification
| Type | XHP1-120 | ||||
| Main Dimensions(mm) | D | 255/280 | |||
| H | 146 | ||||
| Creepage Distance | 432/450 | ||||
| Power-frequency Puncture Voltage(kV) | 120 | ||||
| Average flashover voltage | Power-frequency | Dry(kV) | 80 | ||
| Wet(kV) | 50 | ||||
| Critical-Impulse wave | Positive(kV) | 120 | |||
| Negative(kV) | 120 | ||||
| Radio-Influence-voltage Data | Test Voltage to ground(kV) | 10 | |||
| Maximum RIV at 1000kHz(uV) | 50 | ||||
| Electro mechanical Failing Load(kN) | 120 | ||||
| Mechanical Impact Strength(n.m) | 7.0 | ||||
| Unit Weight(kg) | 7.6/8.2 | ||||
Procedures
Features
1).Disc suspension porcelain insulators are mainly used on high-voltage overhead transmission and distribution lines to support and insulate conductors.
2).The fog type insulators usually serve in coastlands and rainy areas with large creepage distance structure and well flashover performance in wet condition.
our products applies to power station,transmission tower/iron tower ,telegraph pole/wire pole,communciation,transformer,cable/electric cable,wire/electric wire,switch cabinet,meter box,etc.
Packing List
| Part No. | size of crate (mm) |
pcs /crate |
pcs /20ft container |
total crate (crate) |
size of pallet (mm) |
total pallet(pallet) | G.W /case |
N.W /case |
G.W /20'FCL |
N.W /20'FCL |
|
|
XHP1- 120 |
370*455*270 | 4 | 2304 | 536 | A:910*1110*1150 | 24 |
33.4/ 35.8 |
30.4/ 32.8 |
19358.4/ 20740.8 |
17510.4/ 18892.8 |
|
