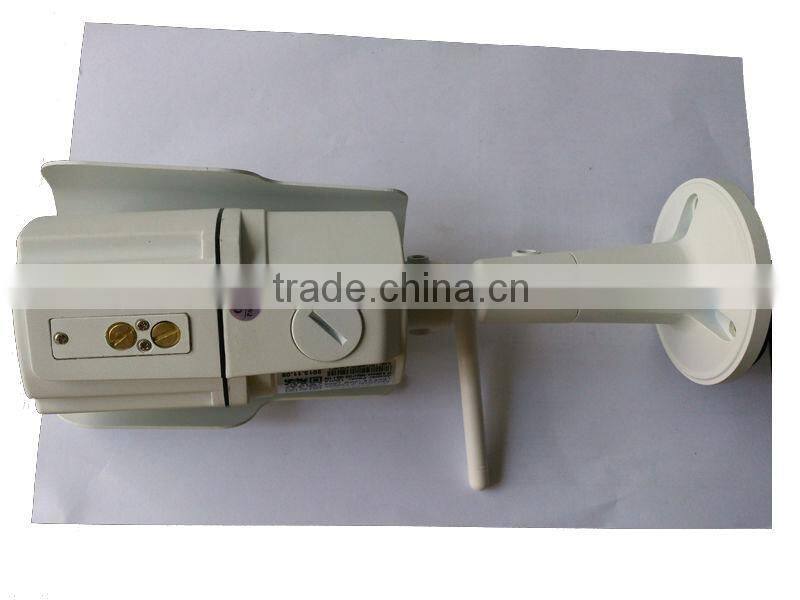

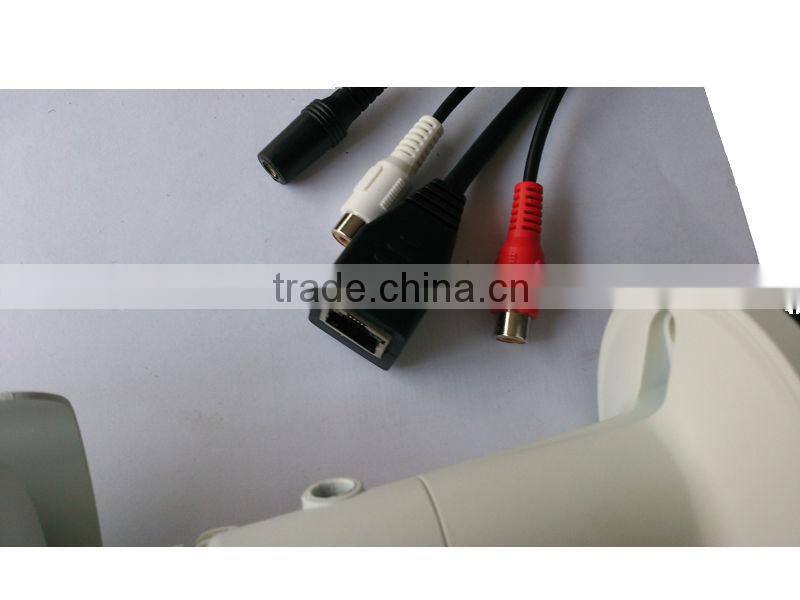

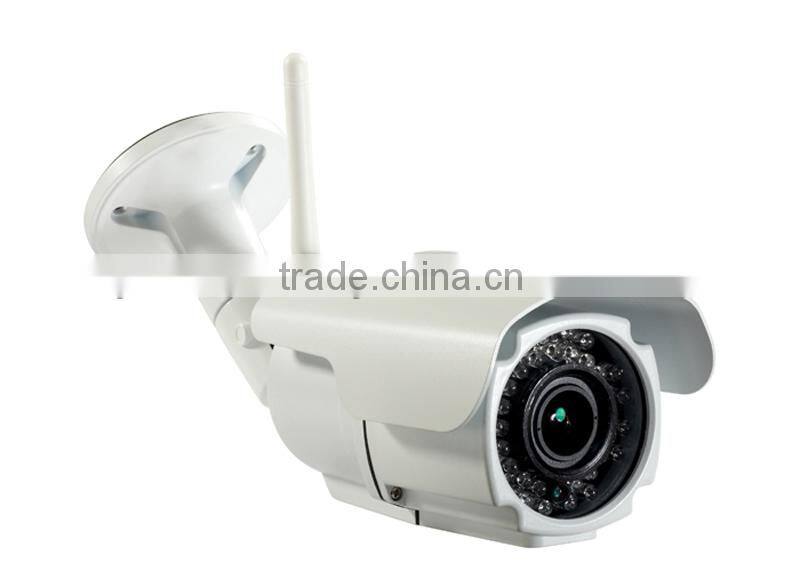

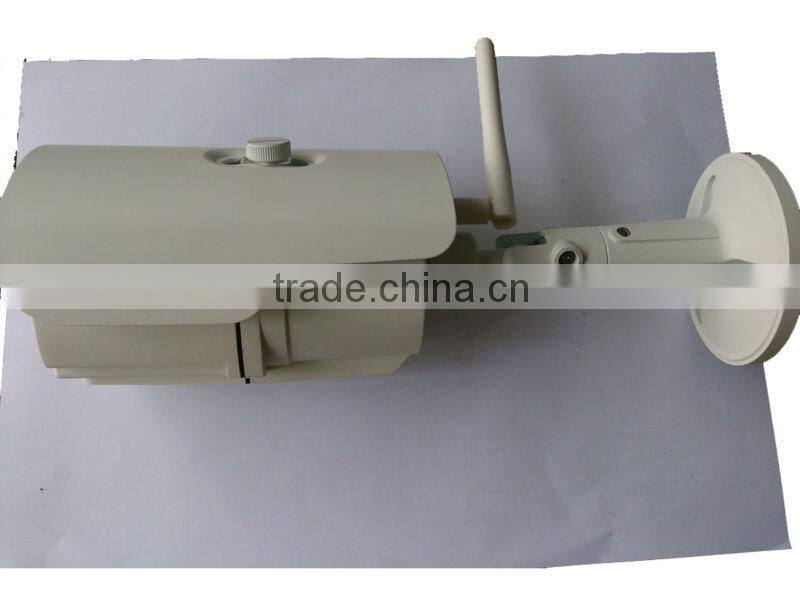

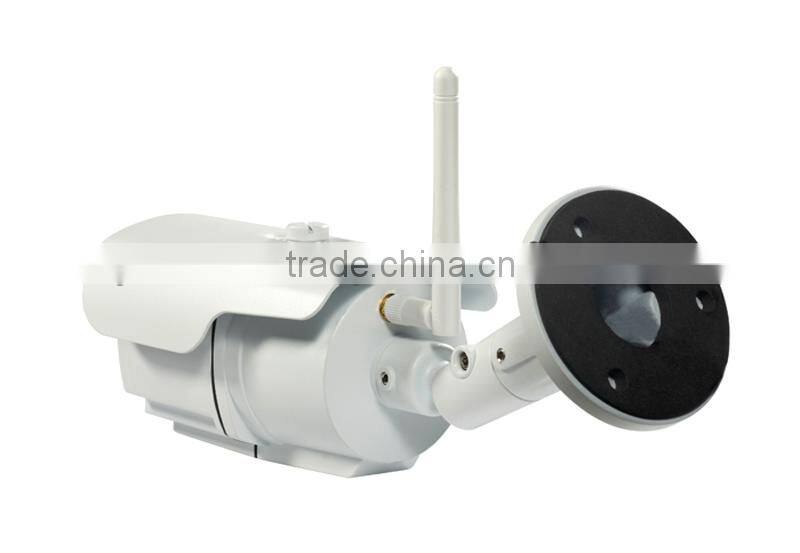

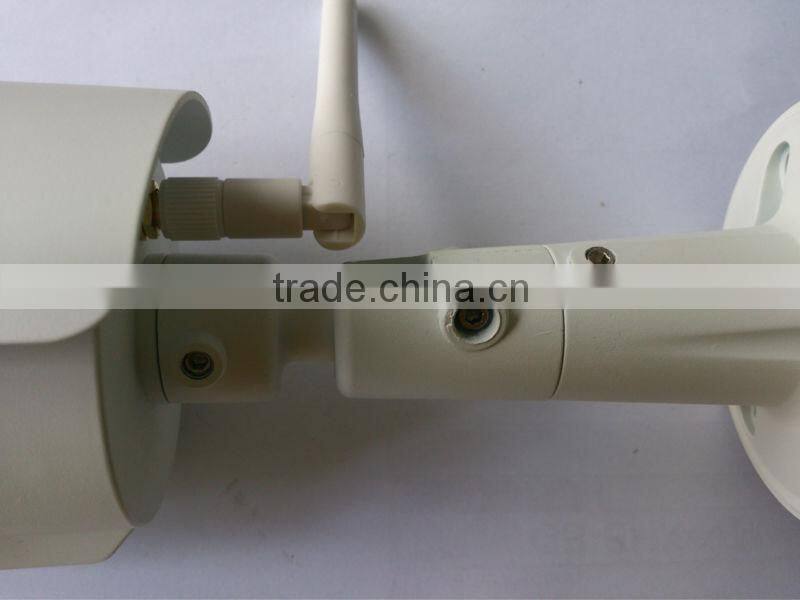

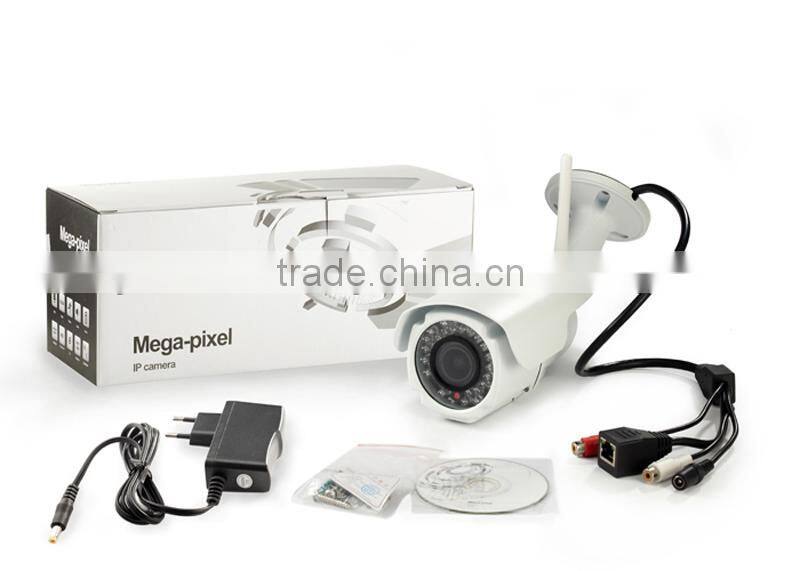

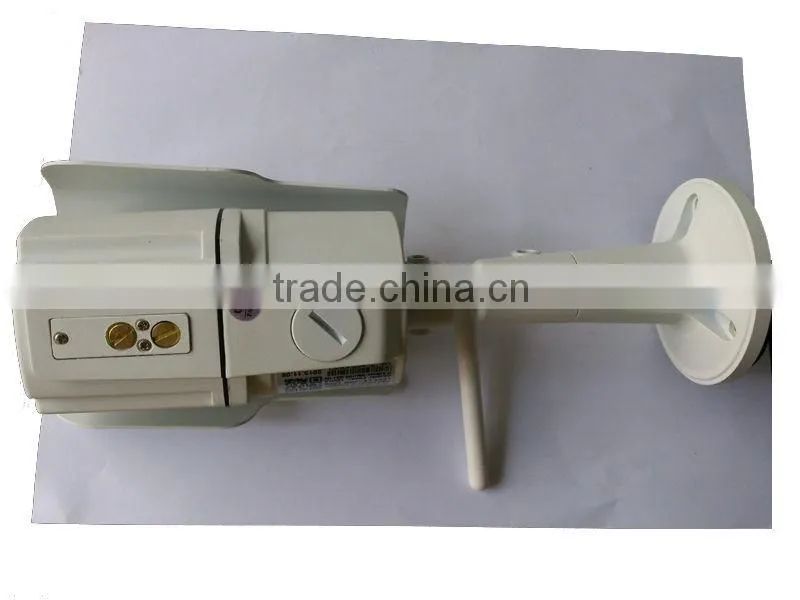

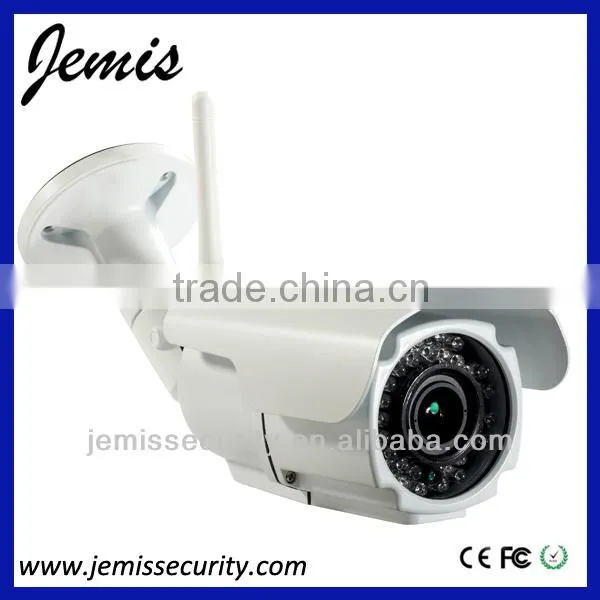

H.264/MJPEG 1.3 Megapixel Low Illumination Bullet Outdoor ONVIF POE WIFI IP Camera
Specification:
Dual stream encoding / H.264 compression mode
1/3'' Aptina Low Lux AR0130 CMOS

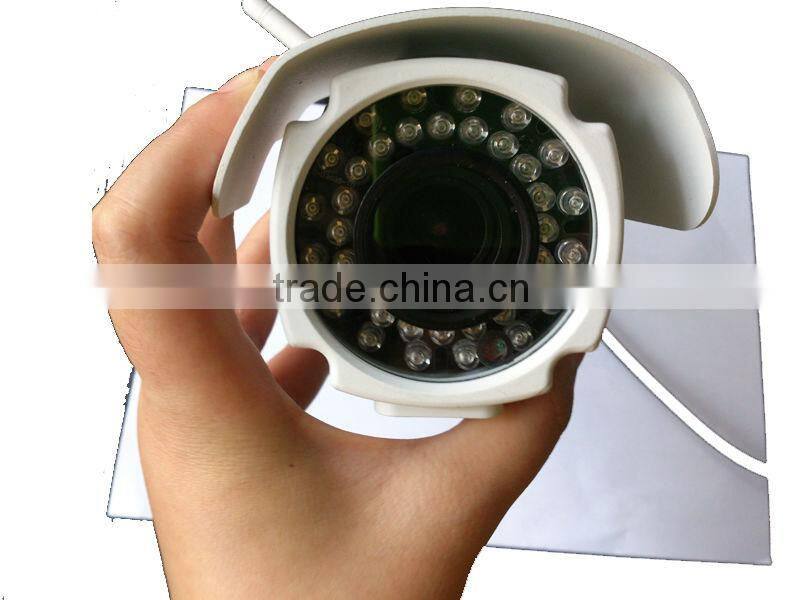

2.8~12mm varifocal lens, 30m night vision with 42pcs ir leds
960P: 1280*960, 720P: 1280*720
Support Multi-screen software,CMS and devices compatible with ONVIF 2.0
Support Remote Access DDNS, Software, P2P
DC12V, Module power consumption is less than 2W
Support iPhone, Android, Bit rate: 32k-512k adjustable, Frame rate: 6-12 fps
Support Protocol: TCP,UDP,IP,HTTP,SMTP,DHCP,DNS,ARP,ICMP,POP3,NTP,IPSec UpnP, RTP and RTCP
Parameters:
Item |
IPC-512VW |
|
Size |
1/3 inch Aptina Low Lux AR0130 CMOS |
|
Effective Pixels |
960P: 1280*960 720P :1280*720 |
|
Min.Scene Illumination |
Color |
0.01LUX(IR ON) |
B/W |
Yes |
|
IR Sensitivity |
Yes |
|
IR Cut |
Yes |
|
Lens |
Lens |
2.8-12mm varifocal lens |
Viewing Angle |
Horizontal 65°/45°/25°/15° |
|
Linux System |
|
Internal Linux system |
Day/Nigh |
IR distance |
30m with 42pcs ir led |
Functions |
Motion Detection |
Yes |
BLC |
Yes |
|
AGC |
Auto |
|
White Balance |
Auto |
|
S/N Ratio |
S/N Ratio |
>50 dB |
Video Compression |
Compression |
H.264 |
Picture Resolution |
Main Flow:960P:1280*960 720P: 1280*720 |
|
Bit Rate |
80 K~ 2.0 M bps |
|
Image Frame Rate |
30 FPS |
|
Audio |
Compression |
G.711 |
Two way audio |
No |
|
Alarm I/O |
Alarm I/O |
1 channel in/out put |
Network |
Ethernet |
Ethernet (10/100 Base-T),RJ-45 connector |
Protocol |
TCP,UDP,IP,HTTP,FTP,SMTP,DHCP,DNS,ARP,ICMP,POP3,NTP,RTP, and RTCP |
|
Software |
Web Browser |
Above Internet Explorer 6 |
Mobile phone |
Support Iphone, Android |
|
Remote |
Support DDNS,P2P |
|
Operating |
Temperature |
-30°~60°C |
Humidity |
-10~85% |
|
Power |
Power Consumption |
DC 12V,1A |
Physical |
Dimension |
250*150*110 MM L*W*H |
|
Weight |
2.0KG |
Approvals |
Certification |
CE ,FCC |
