High Quality Electric Magnetic Lock JM-280G for Single Door
US$ 1 - 20
MOQ: 10 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
JEMIS
Model Number:
JM-280GF
Payment & Shipping
Payment Methods:
Port of Shipment:
SHENZHEN
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Magnetic Electric Lock Apartment Door Safe LocksUS$ 1 - 20MOQ: 10 Pieces -
High Security Magnetic Lock 600LBS(280KG) With FeedbackUS$ 1 - 20MOQ: 10 Pieces
-
Single Door 280KG(600LBS) EM Electric Magnetic Door LockUS$ 1 - 20MOQ: 10 Pieces
-
280kg(600Lbs) Holding Force em Lock,sliding Frameless Glass Door Magnetic LockUS$ 1 - 20MOQ: 10 Pieces
-
280KG 600lbs CCCCCC Time Delay EM LockUS$ 1 - 20MOQ: 10 Pieces
Place of Origin
Guangdong, China
Brand Name
JEMIS
Model Number
JM-280GF

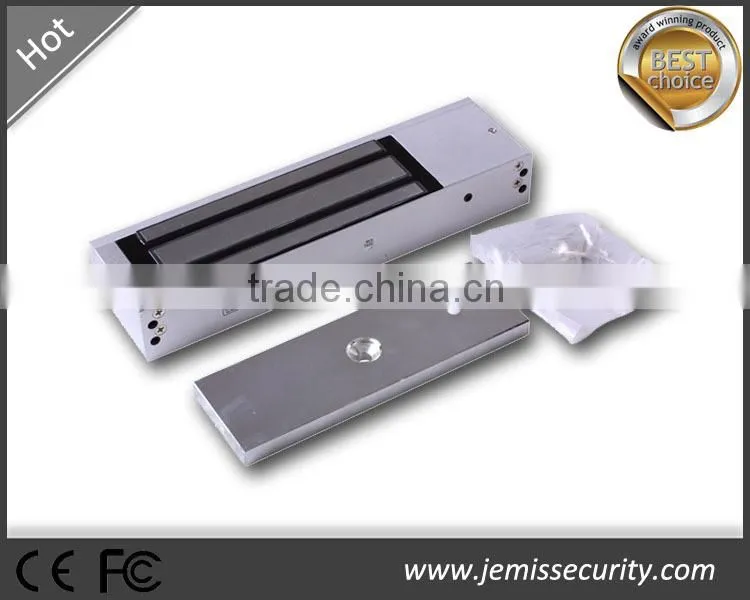

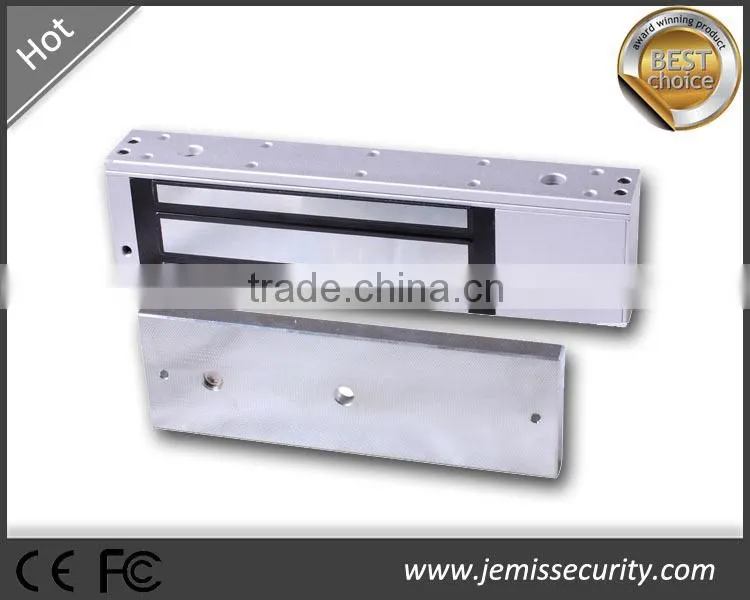

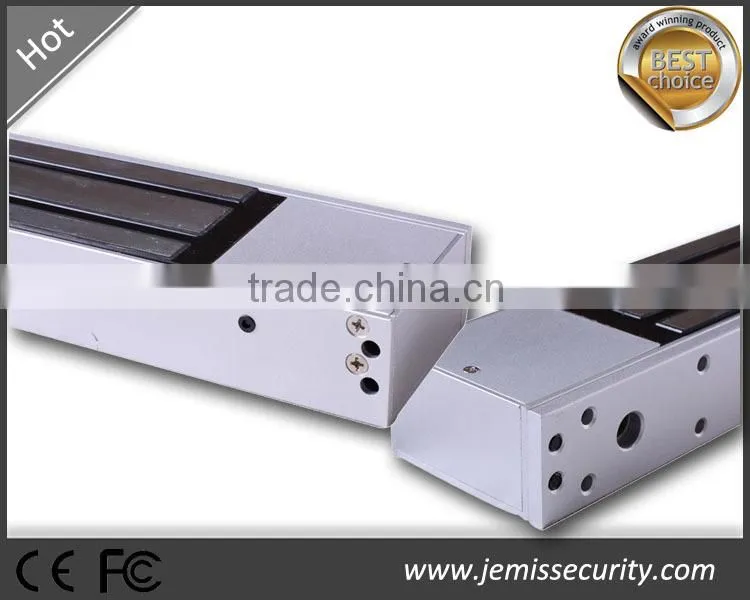

High quality electric magnetic lock JM-280G for single door
Features
1.Safety mode: power-on to lock
2.Voltage:DC12V or DC24V can adjust
3.Current Draw: 12V/480mA 24V/240mA
4.Finishes for Shell:Anodized aluminum & surface texture processing
5.LED indicates the door is unlock,Green indicates the door is lock
6.No residual magnetism, no mechanical damage
7.Suitable for: 90 degrees open for all kinds of doors with frame
8.Bracket choose: L bracket for outswing door, L+Z bracket for inswing door
Specification
| Product | 280kg/600Lbs Electromagnetic Lock with door position detection output |
| Lock Size | 250L*47W*26H(mm) |
| Armature plate | 161L*40W*23H(mm) |
| Voltage: | DC12V or DC24V (adjustable) |
| Current Draw | 12V/480mA 24V/240mA |
| Suitable for | Wooden door , Glass door ,Metal door , Fireproof door |
| Suitable Humidity | 0~90% (non-condensing) |
| Finishes for Shell | Anodized aluminum & surface texture processing |
| Finishes for Magnetic | Zinc |
| Finishes for Armature | Zinc |
| Weight | 2kg |
| Standard Packing | 12pcs |

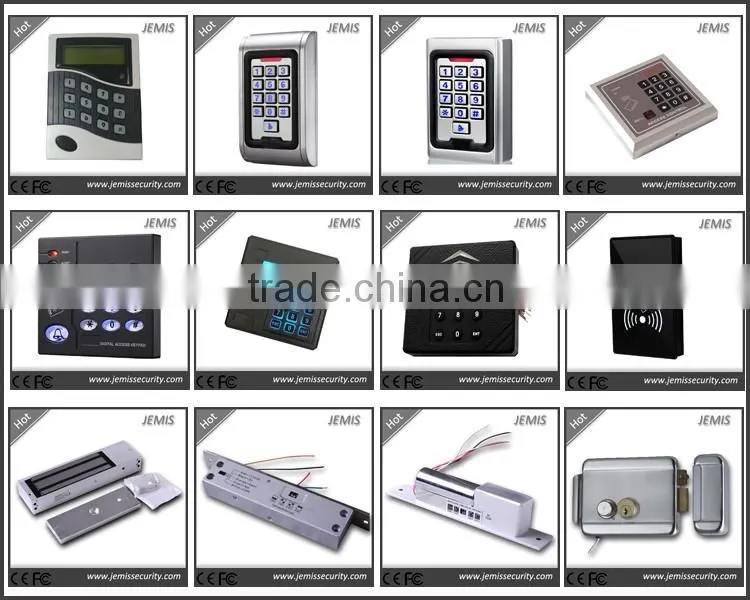

Hot Sale Products
<
| Model | JM-60G | JM-180AF | JM-180GF | JM-180GSF | JM-280GF | JM-280AF | JM-280GFS |
| Voltage | 12V/24V +10% | ||||||
| Current | 300mA/DC12V 150mA/DC24 | 600/DC12V | 480mA/DC12V | 960mA/DC12V | |||
| 300/DC24V | 240mA/DC24V | 240mA/DC24V | |||||
| Max Straight | 60kg(120Lbs) | 180kg(300Lbs) | 180kg(300Lbs) | 180kg(300Lbs)*2 | 280kg(600Lbs) | 280kg(600Lbs) | 280kgx2(600Lbsx2) |
| direction pull | |||||||
| Moisture | 0~95% | ||||||
| Durability | 500,000 times | ||||||
| Weight | 0.5kg | 1.2kg | 1.2kg | 2.4kg | 2kg | 2kg | 4kg |
| Dimension(mm) | 80*35*19 | 170*35*21 | 190*32*21 | 340*35*21 | 250*42*25 | 231*41*24 | 500*42*25 |
| Lock: | |||||||
| Dimension(mm) | 65*33*11 | 130*33*9.3 | 130*33*9.3 | 130*33*9.3 | 180*38*11 | 180*38*11 | 180*38*11 |
| Iron Block: | |||||||
| Suitable Door | File cabinet,locker | single Glass , | single Glass , | Double Glass , | single Glass , | single Glass , | Double Glass , |
| wooden, | wooden, | wooden, | wooden, | wooden, | wooden, | ||
| Wardrobe | fire doors | fire doors | fire doors | fire doors | fire doors | fire doors | |
| Installation | visible | visible | invisible | visible | visible | invisible | visible |
