Home > Security & Protection > Surveillance, Control & Protection > CCTV Camera > H.264/MJPEG 720P Infrared IP Camera With HDMI 4CH POE NVR Kit

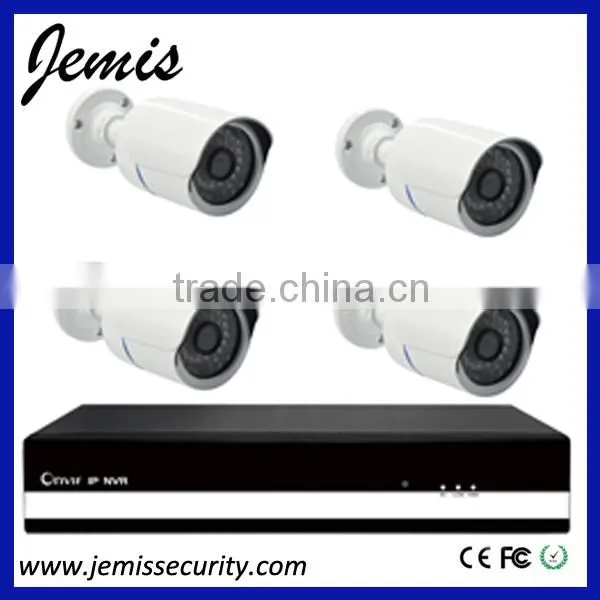

H.264/MJPEG 720P Infrared IP Camera With HDMI 4CH POE NVR Kit
Negotiable
MOQ: 5 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Jemis
Model Number:
JM-Kits02p
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
720P Standalone Network H.264 Infrared WIFI IP Camera With NVR KitNegotiableMOQ: 5 Pieces -
Waterproof Bullet 1 Megapixel IP Camera Network 720P CCTV Standalone NVR KitNegotiableMOQ: 3 Pieces
-
H.264 Bullet 720P Infrared 4CH POE Security NVR KitsNegotiableMOQ: 3 Pieces
-
H.264 Bullet 720P Infrared 4CH POE NVR KitsNegotiableMOQ: 3 Pieces
-
H.264 Bullet 720P Infrared Wireless IP Camera 4CH WIFI NVR Kits CCTV KitsNegotiableMOQ: 1 Piece
Place of Origin
Guangdong, China
Brand Name
Jemis
Model Number
JM-Kits02p
Type
Digital Camera
Style
Bullet Camera
Sensor
CMOS
Technology
NetWork
Special Features
Waterproof / Weatherproof
Specifications
--H.264/MJPEG--1/4'' OV9712 CMOS
--1ch BNC/VGA/HDMI output
--36pcs ir leds with 20m distance
--P2P,WIFI,POE
H.264/MJPEG 720P Infrared IP Camera With HDMI 4CH POE NVR Kit
Product Description
| Specification | ||||||||||
| Video Compression | H.264 | |||||||||
| Video/Audio Channels | Type-port/Channel | Channel | ||||||||
| Video Input | RJ45 | 1 | ||||||||
| Video Output | VGA | 1 | ||||||||
| Audio Input | BNC | 1 | ||||||||
| Audio Output | BNC | 1 | ||||||||
| Alarm | N/A | |||||||||
| PTZ | Yes | |||||||||
| Remote Viewing Specifications | ||||||||||
| Network Interface | Rj45,10M/100M | |||||||||
| Network Protocol | TCP/UDP/DHCP/DDNS/PPPOE/UPNP | |||||||||
| Internet Viewing | Operating System | Browser | Software | |||||||
| PC | IE 7/8/9/10 | CMS View | ||||||||
| MAC | N/A | CMS View | ||||||||
| # of Users | 3 simultaneously | |||||||||
| Mobile Phone Compatibility | Mobile Platform | Model# | ||||||||
| iPhone/iPad | iPhone OS 4.3 or above | |||||||||
| Android/Pad | Android Ver 2.3 or above | |||||||||
| Blackberry | Not at this time | |||||||||
| Symbian | Not at this time | |||||||||
| Windows | Not at this time | |||||||||
| MAC/PC Compatibility | Platform | Browser | Software | |||||||
| MAC | N/A | CMS View | ||||||||
| PC | IE7/8/9/10 | CMS View | ||||||||
| Control Management Software | MAC/PC | CMS View | ||||||||
| Tablet Viewing | Yes | |||||||||
| Camera Specification | ||||||||||
| Image Sensor | 1/4 CMOS | |||||||||
| Resolution | 1280*720 | |||||||||
| Number of LEDs | 36 | |||||||||
| Length of Night Vision | 20M | |||||||||
| Lens Type | 3.6MM | |||||||||
| Weatherproof Rating | IP63 | |||||||||
| Length of Cable | 810MM | |||||||||
| S/N Ration | >50DB | |||||||||
| Minimum IIIumination | 0.5LUX | |||||||||
| Effective Pixels | 1280*720 | |||||||||
| Power Supply | DC 12V | |||||||||
| Operating Temperature | -10°-60° | |||||||||
| Dimensions | Φ69*189MM(D*L) | |||||||||
| Display Specifications | ||||||||||
| Display Frame Rate | 30fps | |||||||||
| Display Resolution | Type-Resolution | Resolution | ||||||||
| VGA | 1280*720,640*480 | |||||||||
| Display Mode | Quad,Single Channels,Auto-switch and Hidden | |||||||||
| Recording & Playback | Channel | Resolution | Recording | Playback | ||||||
| Recording Frame Rate | 1 CH maximum | 720P | 30 | 30 | ||||||
| D1 | 30 | 30 | ||||||||
| 4 CH maximum | 720P | 30 | 30 | |||||||
| D1 | 30 | 30 | ||||||||
| Recording Resolution | 720P:1280*720 | |||||||||
| D1:640*480 | ||||||||||
| Record Modes | Motion Activated, Continuous and Time Schedule | |||||||||
| Playback Options | By Event and Date | |||||||||
| Playback Mode | Multi-Channel(1/4) | |||||||||
| System Information | ||||||||||
| Support SDD | 1*2TB | |||||||||
| Backup | USB2.0 | |||||||||
| Compatible OS for Software | Windows XP,Linux | |||||||||
| Power Supply | DC 12V/2A | |||||||||
| NVR Dimensions(L*W*H) | 315*274*45MM(L*W*H) | |||||||||
| Operation Temperature | 40°F----110°F | |||||||||
| Other Function | ||||||||||
| Mouse Control | Yes | |||||||||
| Remote Control | Yes | |||||||||
| Multi-tasking | Yes | |||||||||
| Languages Supported | Chinese,English | |||||||||
