Nylon Micropore Pleated Cartridge
| Filtration Media: | Nylon 6 or Nylon 66 membrane |
| Media Support | PP non-woven |
| Cage | PP/PP/Reinforced PP |
| Core | PP / Reinforced PP/Stainless steel |
| Out Diameter | Φ68mm Φ69mm |
| Length | 2.5”~40" |
| O-ring | Silicone, EPDM, Nitrile,Viton ,Viton encapsulated PTFE |
| Retention rating | 0.1, 0.22, 0.45,0.65, 1.0, 3.0μm |
| Effective Filtering area | ≥0.65m² |
| PH value | 6~13 |
| Normal operating temperature | ≤65℃ |
| Max.operating temperature | 85℃, Differential pressureP≤0.10Mpa |
| Max.differential pressure | 25℃,Forward 0.42Mpa, reverse direction 0.21MPa |
| Endotoxin | <0.25EU/ml |
| Extractive | <0.03g/10"cartridge |
| Sanitization/Sterilization | 121±2℃ steam for 30min/once or sterile cabinet for 30min/once |

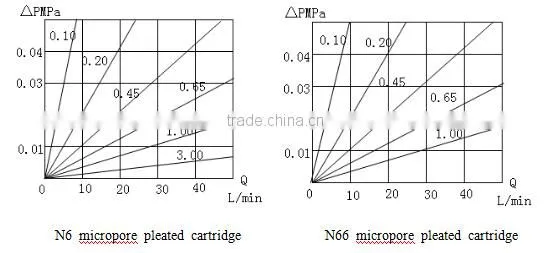

Pressure curves(purify water initial flow-pressure cureve10")
Integrity test(Min. bubble point,25℃,purify water).
Pore size(µm) |
0.10 |
0.20 |
0.45 |
0.65 |
1.00 |
Min. bubble point MPa |
≥0.38 |
≥0.27 |
≥0.19 |
≥0.13 |
≥0.09 |
N6 pleated membrane bubble point
Pore size(µm) |
0.10 |
0.20 |
0.45 |
0.65 |
1.00 |
Min. bubble point MPa |
≥0.38 |
≥0.28 |
≥0.20 |
≥0.14 |
≥0.10 |
N66 pleated membrane bubble point
- High quality hydrophilic nylon membrane provides high throughput and and low pressure drop;
- Requiring no pre-wetting and and are ready to use;
- Absolute filtration precision and no fiber release ensure the filtration effective;
- Material of filter core and o-ring,number of membrane layer give users more optional;
- No adhesives, binders, or surfactants are used in the manufacturing process reduce extractables
- Production in one hundred thousands grade clean room and rinsed by purity water assure the clean and reduce extractables and downtime.
l Electronic grade
Remove particles and end filtration for electronic chemicals,organic solvent,ink and photosensitive resist. End filtration for super purify water,LCD, Polysilicon manufacturing, semi-conductor CD,silicon chip,data storage set,CD RW, DVD disc,FPD, hard ware of computer, PCB of LCD, CRT( contains black carbon paste, PVA solvent,phosphorescence).
l Pharmacy grade
Remove of bacterium and endotoxin for water of pharmacy,biologics and pharmacy solvent, and the filtration of solvent of APIS productive process.
l Food grade
Remove bacterium and clarification filtration of beverage industry and food additives & CIP water.
l Water treatment grade
Remove bacterium of chemical reagent,chemical purification,UF & NF,RO water consuming point.
