SD Card Support high focus 1080p mini bullet home p2p ip camera
Dual stream encoding / H.264 compression mode
1/4 inch 2.0 megapixel OV9712 CMOS with WIFI function
include 3.6mm fixed lens
Day/night mode auto switching night vision :20m(36pcs leds)
1080P 1920*1080 960P: 1280*960 720P 1280*720
Support Multi-Screen software, CMS and the devices Compatible with ONVIF
Support Remote Access DDNS, P2P software
Support different types of smart phones, iphone/ipad/Android for instant remote monitoring anytime, anywhree.
Support motion detection, sensitivity setting, alarm time schedule
Support Capture picture and send to assigned email when alarm is triggered.
Support multi-users remote access vis PC CMS software,Web browsers.
DC 12V ,Module power consumption is less than 2 W
Support iPhone, Android, Bit rate:32K – 512K adjustable,Frame rate:6–12 fps
POE Module Optional
Support Protocol: TCP, UDP, IP, HTTP, SMTP, DHCP, DNS,ARP, ICMP, POP3, NTP, IPSec UpnP, RTP, and RTCP
IP CAMERA | |
Model |
JM-Eye03w |
|
|
Device Type |
1080P OVI2643 CMOS |
Size |
1/4 inch |
Day and Night |
Yes |
Color |
3-8 lux (IR ON) |
IR Cut |
Support |
IR Filter |
IR-CUT Filter |
IR-leds |
36pcs |
IR Distance |
20M |
Lens |
3.6mm fixed lens |
IRIS |
Fixed Aperture F1.2 |
Viewing Angle |
Horizontal 65 degree |
Video |
|
Compression |
H.264 |
|
Picture Resolution |
Main Flow: 1600*1200 /30fps 1280*720 /30fps |
Code Stream |
Support dual stream |
Code Rate |
32-4096kbps |
Bit Rate Type |
CBR/VBR |
S/N Ratio |
>50DB |
|
Image Enhancement |
Auto White Balance, Backlight compensation, Luminance, Contrast, Color Adjustment |
Superposition of Words |
User Defined |
Flip Config |
Up/down. Left/right |
Audio/Alarm |
|
|
Audio
|
Support the microphone input and LINE OUT, support two-way voice intercom equipment |
equipment |
An external audio equipment |
Audio input/output |
One channel audio input, one channel audio output |
|
Audio Compression |
G.711/G.726 |
Alarm input/output |
One channel alarm input, one channel alarm output |
Alarm way |
Motion Detection: Configure motion detection area, detecting sensitivity is adjustable Cover alarm: The alarm sensitivity is adjustable |
Alarm processing |
The control center to monitor, Go to PTZ preset pos, send E-mail, Log record, SD card storage etc |
Network |
|
|
Protocal
|
HTTP, TCP/IP, UDP, SMTP, DDNS, DNS, SNTP, DHCP, FTP, RTP, RTSP, UPNP, ONVIF, 28181 |
Ethernet |
Ethernet(10/100 Base-T), RJ-45 connector |
|
Safety
|
IP address filtering, User level password protection, The user access log |
Software |
|
|
WEB Browser
|
Microsoft Internet Explorer 6.0 and above, goole, firefox, etc |
|
Mobile Phone
|
Support iPhone, Android, Bit rate: 32K-521K adjustable Frame rate: 6-12fps |
Software Management |
CMS and the devices Compatible with ONVIF |
Software intelligence function |
Motion detection, Miss object detection, Moving object tracking, counting, Retrograde motion detection, etc. |
|
Event action
|
Files are stored to the back and equipment, Send E-mail, send SMS, Zoom in alarm, Pop ap map, Go to PTZ preset pos etc. |
Remote Access |
DDNS, Software, P2P |
|
Physical properties
|
|
Accessories |

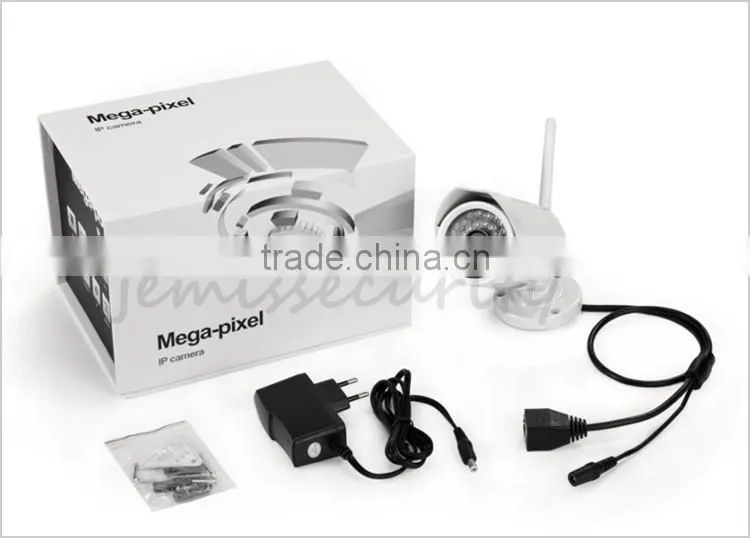

Power adapter, CD, Screw bag |
|
Power Comsumption
|
DC12V, Module power consumption is less than 2W |
Temperature |
-10~60 |
Humidity |
-10~8% |
Weight |
2KG |
Certification |
CE, FCC |
