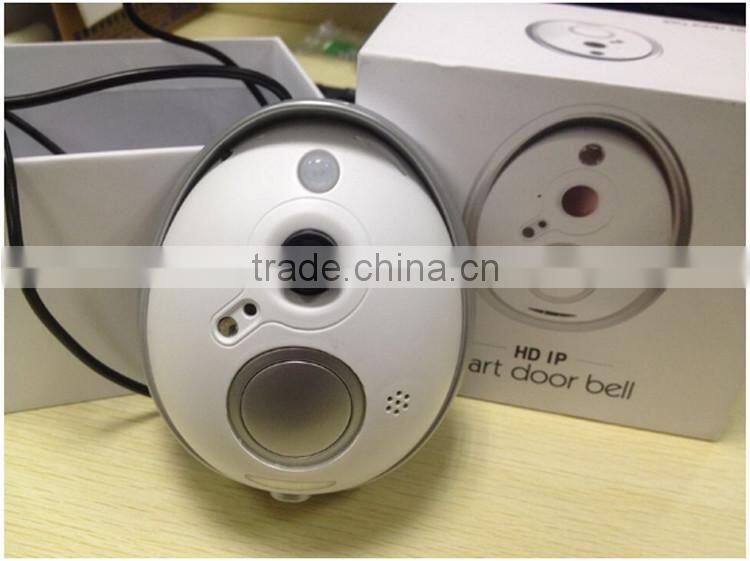

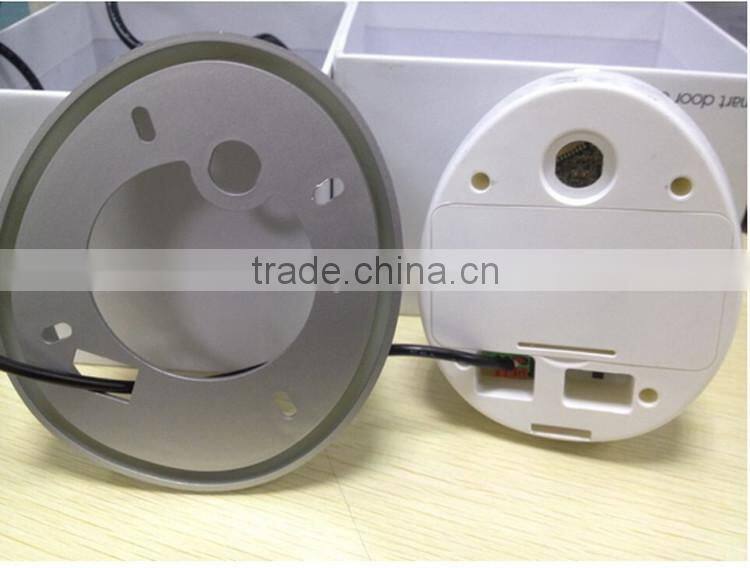

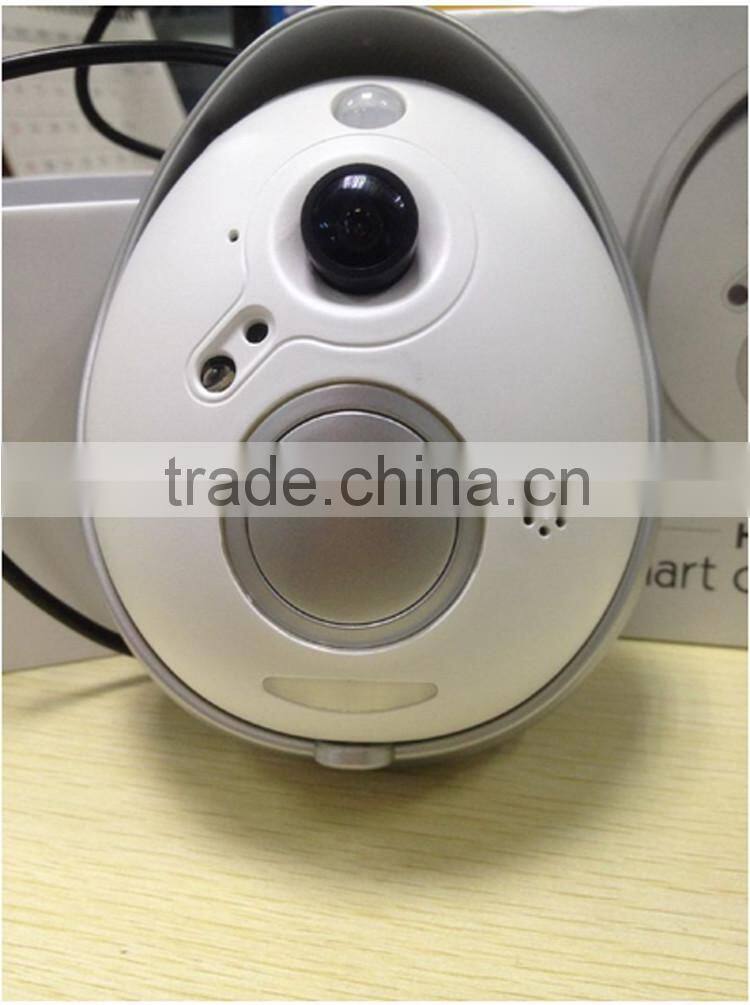

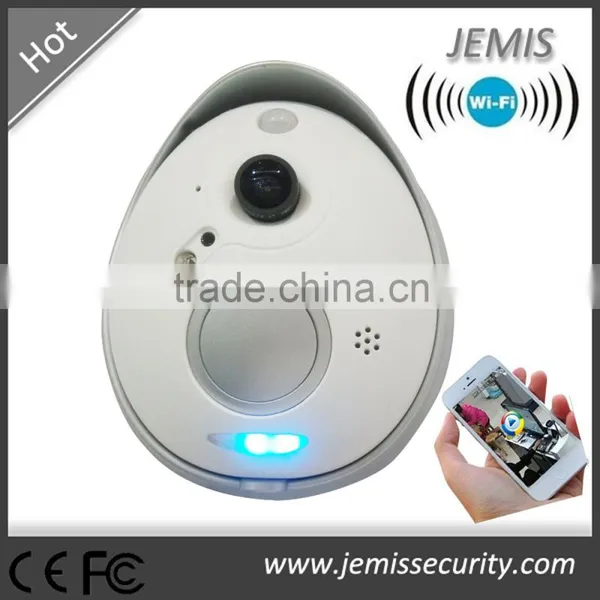

720P 1HD WIFI Video Push P2P video security network door bell ip camera
Main Features:
* Dual stream encoding (H.264/MJPEG)
* 1/4-inch 1.0 Megapixel CMOS, include 3.6mm fixed lens
* Main Flow: 1280*720@20fps
Minor Flow: 640*360@30fps
* Support Multi-Screen software and CMS
* Support Protocol: TCP, UDP, IP, HTTP, SMTP, DHCP, DNS,ARP, ICMP, POP3, NTP, IPSec UpnP, RTP, and RTCP
* Image Processing:Auto Exposure (AE); Auto White Balance (AWB); Auto Gain Control (AGC).
* Alarm action;support email message etc.
* P2P function is included
Specifications
Model |
|
Door Bell |
|
Item |
JM-DB01 |
|
Device Type |
1.0 Megapixel CMOS sensor |
|
Size |
1/4 |
|
Day and Night |
Yes |
|
Min.Scene Illumination |
0.01lux(IR ON) |
|
Infrared sensitivity |
Support |
|
Filter |
IR-CUT |
LENS |
|
|
|
Lens |
2.8 MM |
|
Focus |
Fixed Lens |
|
Aperture |
Fixed Aperture |
Video |
|
|
|
Compression |
H.264 |
|
Picture Resolution |
Main Flow: 1280*720@20fps Minor Flow: 640*360@30fps |
|
Flow Type |
Dual Stream encoding |
|
Bit Rate |
128-8192kbps |
|
Bit Rate Type |
CBR/VBR |
|
S/N Ratio |
>50DB |
|
Image enhancement |
Auto White Balance,Backlight compensation,Brightness, Contrast,Saturation adjusted |
|
Subtitles input |
Support channel name, date/time |
Audio/ Alarm |
|
|
|
equipment |
Built-in MIC,horn |
|
Audio input/output |
one channel audio input, one channel audio output
|
|
Audio Compression |
G.711 |
|
Alarm way |
Motion Detection:Configure motion detection area, detecting sensitivity is adjustable Cover alarm:The alarm sensitivity is adjustable |
|
Alarm processing |
Send E-mail, Log record,SD card storage etc. |
|
PIR |
support |
Network |
|
|
|
Protocol |
TCP,UDP,IP,HTTP,SMTP,DHCP,DNS,DDNS,ARP,ICMP,SMTP, POP3,NTP,RTP, RTCP,Pelco-D |
|
Wireless |
WiFi 802.11b/g/n |
|
Safety |
IP address filtering,User level password protection, The user access log |
Software |
|
|
|
WEB Browser |
Microsoft Internet Explorer 6.0 and above,google,firefox etc. |
|
Software intelligence function |
Motion detection,Miss object detection, Moving object tracking, counting, Retrograde motion detection, etc. |
|
Event action |
Files are stored to the back end equipment,Send E-mail etc |
|
Mobile Phone |
Support iPhone,Android |
|
Remote Access |
DDNS,Software,P2P |
Features |
|
|
|
The doorbell visiting log |
Keys for hd video at the same time,Mobile phones can be synchronous log and video files, and mobile terminal playback. |
|
Tamper design |
support |
|
Anti-theft design |
Stay in 20 seconds to 30 seconds PIR automatically detects, automatically push the mobile phone screen |
Physical properties |
|
|
|
Accessories |
Power adapter, Network cable, Stand, Operation manual, CD, Screw bag |
|
Power Comsumption |
DC 5V,support the battery |
|
Temperature |
-10°C——60°C |
|
Humidity |
10%-80% |
|
Weight |
KG |
|
Dimension |
mm L*W*H |
|
Certification |
CE,FCC |
