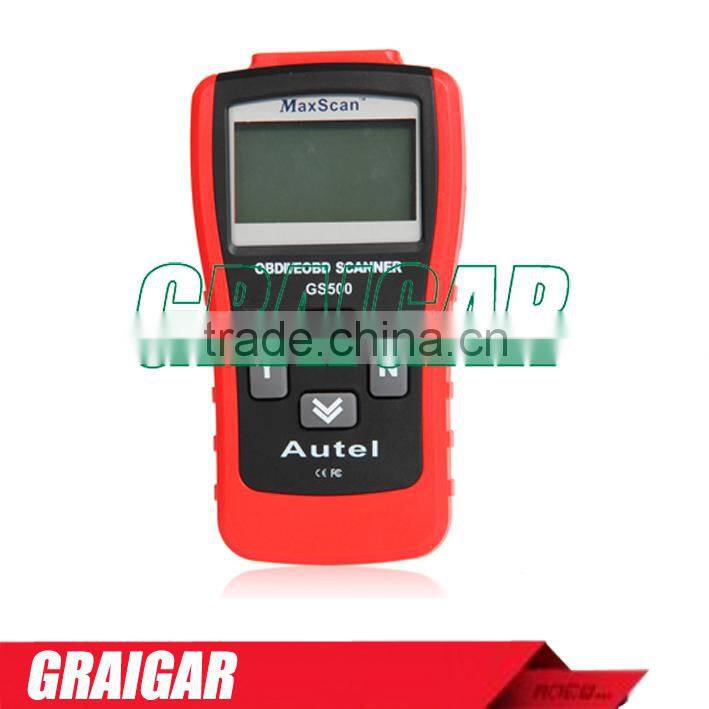

Autel Code Reader MAXSCAN GS 500 OBD II/EOBD
Communication Protocols Included
1 Controller Area Network
2. KWP 2000 ISO 14230-4
3. ISO 9141
4. J1850PWM
5. J1850VPW
VEHICLE COVERAGE:
GM '96 - Current Year (OBD-II)
Ford '96 - Current Year (OBD-II)
Chrysler '96 - Current Year (OBD-II)
Toyota '96 - Current Year (OBD-II)
Honda '96 - Current Year (OBD-II)
NISSAN '96 - Current Year (OBD-II)
All other Asian and European '96 - Current Year (OBD-II )
Benefits
Displays the DTC definitions on screen unlike previous models
Wider coverage - works with equipped vehicles
Reads and clears all generic, and some manufacturer, specific DTCS
Resets check engine lights
Displays I/M readiness status
Views OBD II freeze frame data
Retrieves the Vehicle Identification Number (VIN)
Determines the malfunction indicator lamp (MIL) status
Hot keys for quick read and release
Hand held and easy to use with one plug-in only
Highly reliable and accurate
Safely communicates with the onboard computer
No batteries needed for operation - powered via detachable OBD II cable
and factory packaged
Comes with CD which includes the users manual and a list of DTCS definitions, OBDII cable for connecting the scanner to your vehicle, serial cable for upgrading the scanner, nylon carry pouch and book version of the user manual.
Specifications :
Display: backlit 128 x 64 pixel display with contrast adjustment
Operating temperature: 0-50C (-32 to 122 F)
External power: 8.0 to 15.0 volts provided by vehicle battery
Dimensions: 196mm (l) x 90mm (w) x 34mm (h)
An essential piece of kit for all car and van owners save time and money with this hand held code reader which enables you to troubleshoot any problems in your vehicle by reading the Diagnostic Trouble Codes (DTC's) that appear when the check engine light is showing.
DTC's are codes that are stored by the cars in-board computer system in response to a vehicle issue. Codes relate to a particular problem and are made up of a 5 digit alpha-numeric sequence and are used as a guide to help .

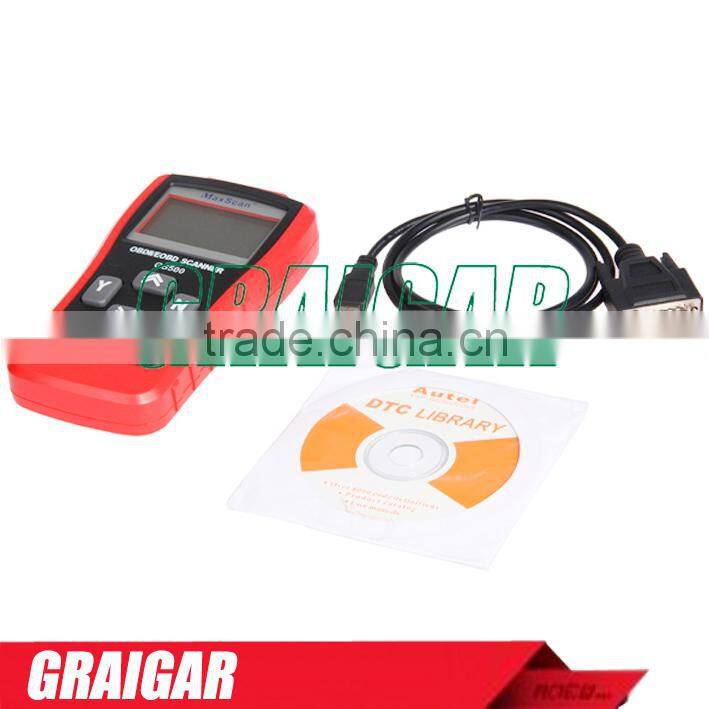

Contents Included:
1. GS500 unit
2. OBD2 Cable
3. Users Manual & DTC Library software CD
4. USBc Cable
5. Carry Case
