Specifications
Resin Bond Cup Diamond Grinding WheelMaterial:resin bond,diamond
Substrate:hard metal
Shape:flat,cup,dish
Consistency:75%

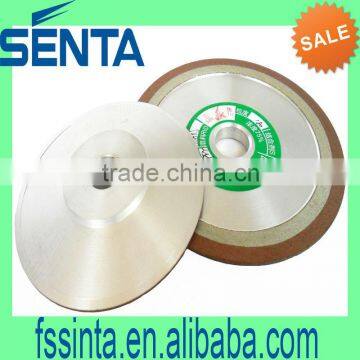

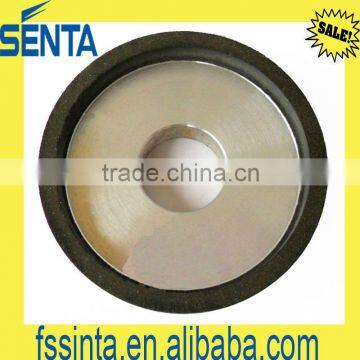

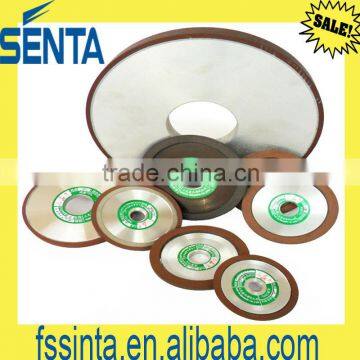

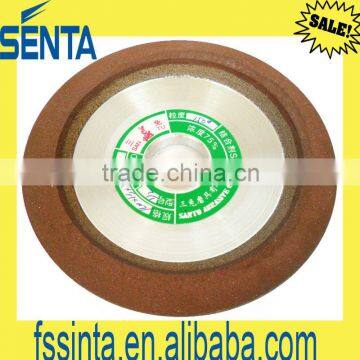

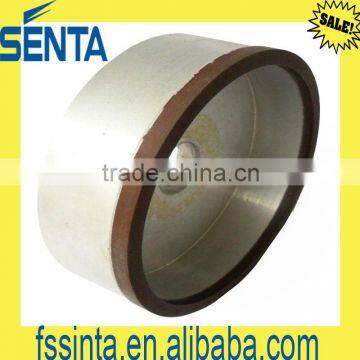

Resin Bond Cup Diamond Grinding Wheel
Material:
diamond , resin bonded , metal.
Description:
| Diamond grinding wheel -Flat Shape | |||||
| Diameter | Height | Arbor hole | Thickness | Consistency | Colour |
| 60 | 4/6 | 10 | 4 | 75% |
Red abrasive surface Black abrasive surface Green abrasive surface |
| 80 | 4/6 | 20 | 3 | 75% | |
| 100 | 4/6/8/10/16/20 | 20 | 4 | 75% | |
| 125 | 6/8/10/16/20 | 32 | 4 | 75% | |
| 150 | 6/8/10/16/20 | 32 | 4 | 75% | |
| 200 | 6/8/10/16/20 | 75/32 | 4 | 75% | |
| 250 | 6/8/10/16/20 | 75/32 | 5 | 75% | |
| 300 | 10/16/20/25 | 75 | 5 | 75% | |
| Diamond grinding wheel -Cup Shape NO.1 and NO.2 | ||||||
| Diameter | Height | Arbor hole | Width | Thickness | Consistency | Colour |
| 75 | 25 | 12/10 | 3/5/10 | 3 | 75% |
Red abrasive surface Black abrasive surface Green abrasive surface |
| 100 | 32 | 20 | 3/5/10 | 3 | 75% | |
| 125 | 32 | 32 | 5/10/15 | 3 | 75% | |
| 150 | 32 | 32 | 5/10/15 | 3 | 75% | |
| Diamond grinding wheel -Tapered on both side | |||||
| Diameter | Height | Arbor hole | Thickness | Consistency | Colour |
| 100 | 6 | 20 | 3 | 75% |
Red abrasive surface Black abrasive surface Green abrasive surface |
| 125 | 6 | 32 | 3 | 75% | |
| 150 | 6 | 32 | 3 | 75% | |
| Diamond grinding wheel -Flat Shape With ARC | ||||||
| Diameter | Height | Arbor hole | Width | Thickness | Consistency | Colour |
| 125 | 6 | 32 | 6 | R3 | 75% |
Red abrasive surface Black abrasive surface Green abrasive surface |
| 125 | 8 | 32 | 8 | R4 | 75% | |
| 150 | 6 | 32 | 6 | R3 | 75% | |
| 150 | 8 | 32 | 8 | R4 | 75% | |
| 150 | 10 | 32 | 10 | R5 | 75% | |
| Diamond grinding wheel -Dish Shape NO.1 and NO.2 | ||||||
| Diameter | Height | Arbor hole | Width | Thickness | Consistency | Colour |
| 75 | 12 | 20/13 | 3/5 | 3 | 75% |
Red abrasive surface Black abrasive surface Green abrasive surface |
| 80 | 12 | 16/13 | 8 | 1.5 | 75% | |
| 100 | 13 | 20/13 | 5/8/10 | 3 | 75% | |
| 125 | 13 | 20/13 | 5/8/10 | 3 | 75% | |
| 150 | 13 | 20/13 | 5/8/10 | 3 | 75% | |
| Diamond grinding wheel -Dish Wheel No.3 | ||||||
| Diameter | Height | Arbor hole | Width | Thickness | Consistency | Colour |
| 80 | 12 | 20 | 7 | 1.5 | 75% |
Red abrasive surface Black abrasive surface Green abrasive surface |
| 100 | 12 | 20 | 7 | 1.5 | 75% | |
| 125 | 12 | 20 | 7 | 1.5 | 75% | |
| 150 | 12 | 20 | 7 | 1.5 | 75% | |
| Diamond grinding wheel - Tapered On Single Side NO.1 | |||||
| Diameter | Height | Arbor hole | Width | Consistency | Colour |
| 80 | 8 | 10 | 5 | 75% |
Red abrasive surface Black abrasive surface Green abrasive surface |
| 100 | 10 | 20 | 5 | 75% | |
| 125 | 10 | 32 | 8 | 75% | |
| 150 | 10 | 32 | 8 | 75% | |
Usage:
mainly used for processimg of magnetic materials, alloy cutting tools, hard non-ferrous metal, porcelain, glass. jewlery, moulds surface, surface grinding, external cylindrical grinding, plunge-cut grinding and contour grinding with the advantages of high processing efficiency, fine surface finish and extended servcice life.
Features:
Superior grinding ratio, achieving reduction of the work period and the number of processes
Unrivaled record made in grooving by cemented carbide cutting tools
