Linear Rail Kit for Cnc EGW15SA HIWIN Linear Guideway

About Details of Product

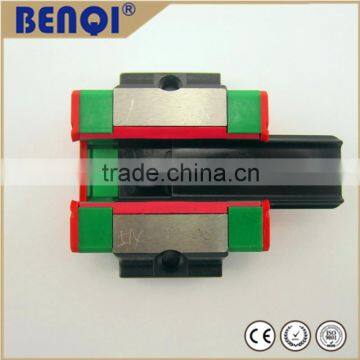

Complete linear guideway system with one Square block installed, Diameter Shaft is 15mm and Rail long is 100mm.

• Model Type:EGW15SA
• Diameter Shaft: 15mm
• Rail length: 100mm
• Block Dynamic Load Rating: 5.35 KN
• Block Static load rating: 9.40 KN
• High repeatability and smooth running performance
• Stiffness, strength and accuracy for improved production processe

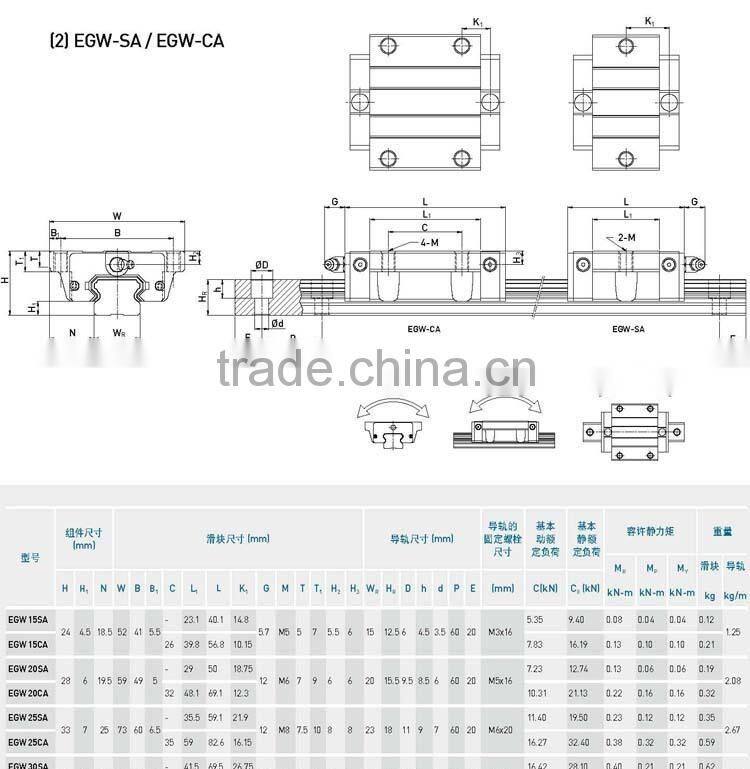

About Drawings and   Dimensions

About our workshop and   workshop process

 workshop process for rail

 workshop process for block

About our company

Shanghai BenQi Mechanical & Electrical Equipment Company is a hardware factory, we are Producing domestic BENQI miniature linear guide, Heavy load linear guide and ball screw independently. We are also the commission agent of the HIWIN and TBI.

About Payment

1) T/T: 30% deposit 70% before shipment.

2) L/C at sight. (High bank charge, not suggest, but acceptable)

3)100% Western Union in advance. (Especially for air shipment or small amount)

 IF YOU NEED MORE INFORMATION ,CONTACT ME NOW!
