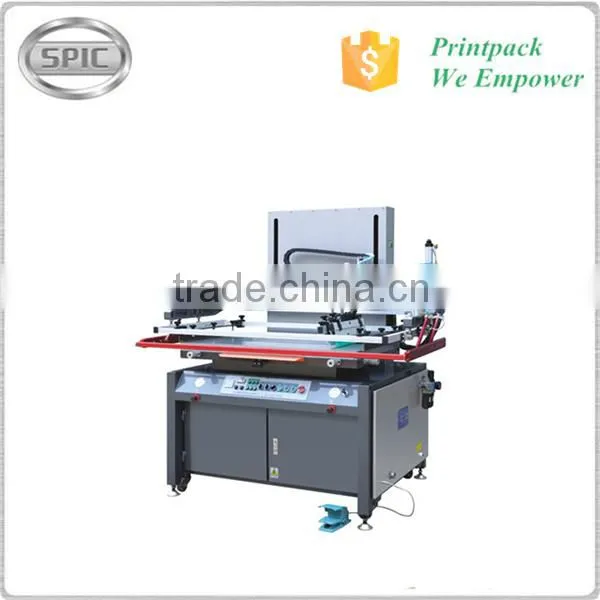

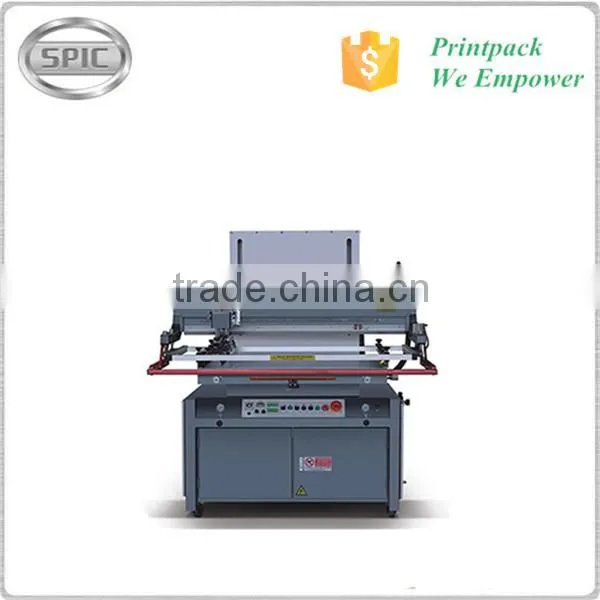

Semi automatic Horizontal-lift screen printing Machine prices
Introduction:
This machine is not easy to deformation substrates for printing need to design, printing range
Wide and can be used for paper, plastic, glass, ceramic, metal, textile,
Screen printing graphic objects, such as leather, especially suitable for PGB in electronics industry,
Liquid photosensitive plastic, soft PCB PCB Servite of solder paste printing.
1, a print head size reduction motor drive vertical lifting, lifting action quickly
And smooth.
2, high precision guide rail with "MEGADYN E" synchronous belt, variable frequency drive
Brush, movement precision is higher and more stable.
3, converter gas and liquid linkage off-grid cylinder, ensure uniform off-grid stability.
4, workbench fine-tuning and locking device independence, clean workbench clamping error.
Five independent control, double cylinder printing ink knife and back plate, printing pressure is big and homogeneous.
Main technical Parameter:
Model |
CJB-750II |
CJB-960II |
CJB-1280II |
Max.printing dimension |
500 >< 700mm |
600 >< 900mm |
800 >< 1200mm |
Max.dimensions of the frame |
800 >< 1160mm |
900 >< 1360mm |
1100 >< 1 660mm |
Dimensions of the workbench |
600 x 900mm |
700 x1100mm |
900 >< 1400mm |
Printing to thickness |
~ 40rnm |
~40mm |
~40mm |
Height of instant off-network |
0 N 20mm |
0 N 20mm |
0 N 20mm |
Printing speed |
1200pcs/h |
1100pcs/h |
900pcs/h |
Weight(Kg) |
600kg |
750kg |
900kg |
Overall dimensions(mm) |
1500× 1080× 1700mm |
1700 >< 1180× 1700mm |
2000 >< 1380× 1700mm |
Printing motor |
0.2Kw |
0.2Kw |
0.4Kw |
Printing shaft |
1.5Kw |
2.2Kw |
2.2Kw |
Wind machine |
0.75Kw |
1.1 Kw |
1.5Kw |
Power |
2.45Kw |
3.5Kw |
4.1Kw |
Shanghai Printpack dedicate to provide "value+" service to those who in need of quality and resonable priced equipment for printing and packaging industry.
Our team of seasoned professional consultants are willing to offer range of products in print & pack machinery of hi performanced, as well as optimizing supply chain management for overseas customer sourcing from China.
We are willing to play as an important partner for those who got inspired by China's growth.
