3/4 Automatic Flat Silk Screen Printing Machine

3/4 Automatic Flat Silk Screen Printing Machine photo-1
3/4 Automatic Flat Silk Screen Printing Machine photo-2
3/4 Automatic Flat Silk Screen Printing Machine photo-3
3/4 Automatic Flat Silk Screen Printing Machine photo-4
3/4 Automatic Flat Silk Screen Printing Machine photo-5
US$ 80,000 - 98,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Shanghai, China
Brand Name:
SPIC screen printing machine
Payment & Shipping
Payment Methods:
Port of Shipment:
any port in china
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Place of Origin Shanghai, China
Brand Name SPIC screen printing machine
Model Number CJB-720A screen printing machine
Usage Bill Printer, Card Printer, Cloths Printer, Label Printer, Paper Printer
Automatic Grade Automatic
Voltage 3P 380V 50Hz
Gross Power 8.89kw
Dimensions(L*W*H) 4050x2240x1680mm
Weight 3500KG
Certification CE ISO
Warranty one year
After-sales Service Provided Engineers available to service machinery overseas



Product Description

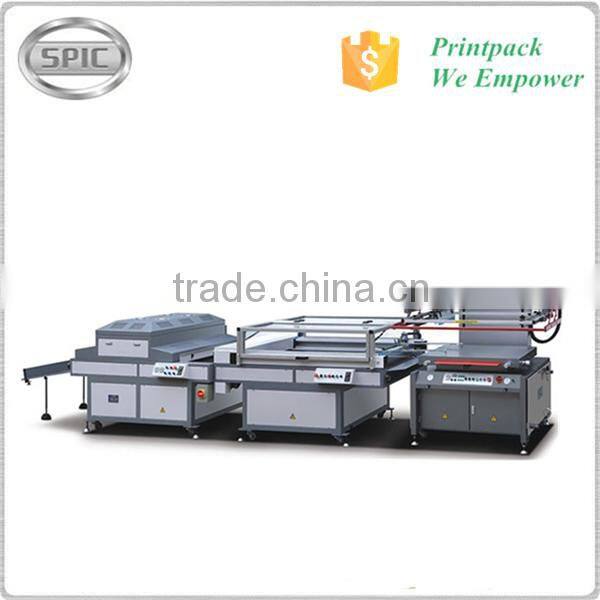

3/4 Automatic flat silk screen printing machine

3/4 Automatic flat silk screen printing machine



Introduction:



The machine is composed of printing part,take-off set machine and UV dryer.

It is a 3/4 automatic line which the printing stock is fed by hands take-off automatically.

After the printing finished and the printing arm put up, the mechanism arm of take off set machine will extend into between the arm and the plane,suck and pull out the printing stock, then send it to next working procedure( drying, solidify or collection).

It's not only can save the man, but also improve the using efficiency of the machine. If s fit for the flexible material, such as paper product.





Main characteristic:



1. Classical stop cylinder mechanism, cylinder stops step automatically to ensure the forehead of the printing stock can be sent accurately to the gripper of cylinder,

which is up to extreme high precision;

at the same time, gripper of cylinder and pull side-lay both have there magic eyes for supervising

if the printing stock is in correct place, which can reduce the waste effectively.



2. The bottom of convey table with vacuum adsorption, assembled with the pull and press mechanism,

ensure printing stock delivered smoothly.



3. The paper delivered by negative pressure, feed paper accurate and steady.



4. Adopt the numerical control electric eye system. When the paper arrived the front guide,

 the electric eye will contraposition automatically, tiny dislocation,misplace, stop automatically,

 guarantee the print stock’s high precision, reduce the wastrel effectively.



5. Main transmission and main parts lubricate automatically, prolong the using precision and machine life in effect;



6. The whole machine controlled by PLC, can choose touch screen for operating,

 which is very easy and high degree automatism;



7. It can be used with CJB Series screen drying machine, UV dryer,

UV & IR dryer and automatic stacker to form the full automatic screen printing line.



Main technical Parameter:



Take-off Set

800CL

800CL

900CL

Screen Printing Part

CJB-750C/750 II

CJB-960 II

CJB-1280 II

Top Speed

1100 PCS/h

1000 PCS/h

900 PCS/h

Space of printing paper

7500X500mm

900X600mm

1200X800mm



500gsm

500gsm

400gsm

Power

15.2KW

16.49KW

16.89KW

Weight(about)

1400KG

15300KG

1650KG

Overall dimension

6600X1050X1760mm

6800X1180X1760mm

7100X1400X1850mm



Take-off Set





Model

CJB-800CL

JB-900CL



Top Speed

1200pcs/h

1200pcs/h



Specs of paper

720mm(W)500g

820mm(W)400g



Power

220V 290W

220V 290W



Weight

350kg

400kg



Overall dimension

2000X1000X1100mm

2200X1100X1100mm












     3/4 Automatic flat silk screen printing machine               3/4 Automatic flat silk screen printing machine               3/4 Automatic flat silk screen printing machine

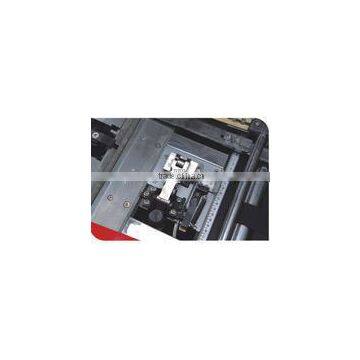

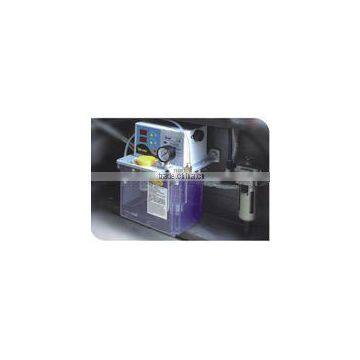

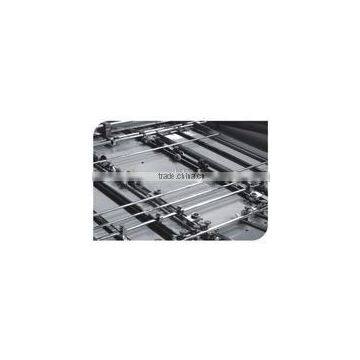

            Paper load part                                           PUSH side guide                                              Lubricate automatically

    3/4 Automatic flat silk screen printing machine

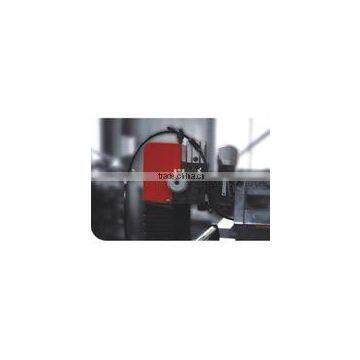

             Pressure holder

Finished Products

 3/4 Automatic flat silk screen printing machine
