hiwin linear bearing hgh20ha 1000mm linear rail for cnc machine



  • Model Type:HGH20HA
  • Width: 20mm
  • Rail length: 1000mm
  • Block Dynamic Load Rating: 21.18 KN
  • Block Static load rating: 48.84 KN
  • High repeatability and smooth running performance
  • Stiffness, strength and accuracy for improved production processe

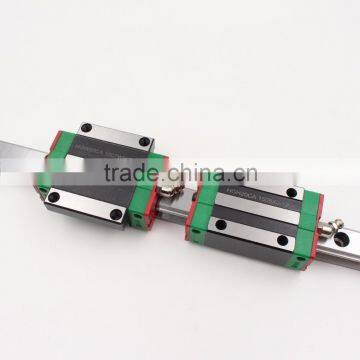

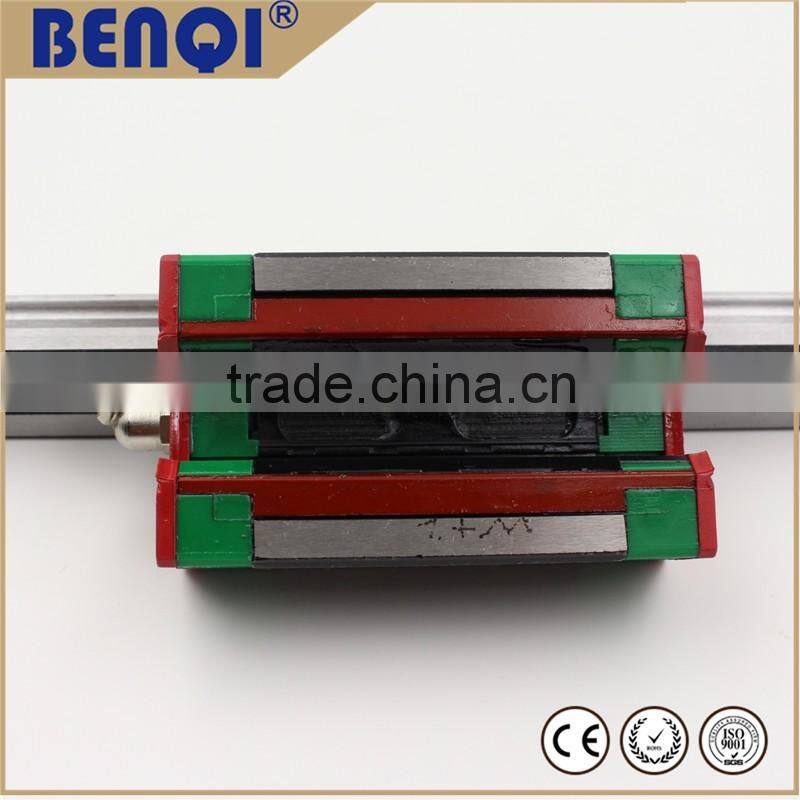

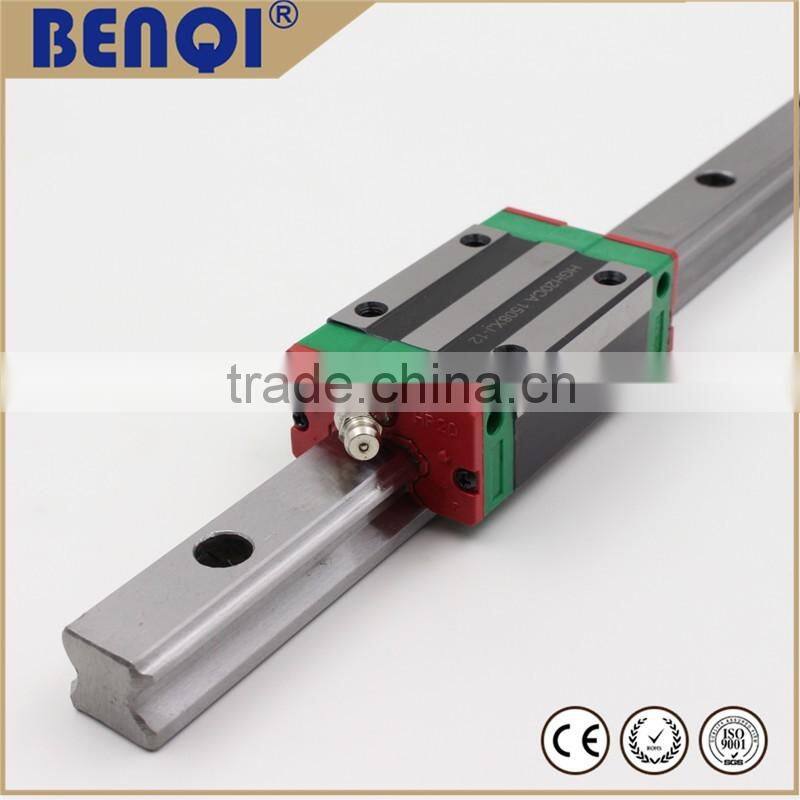

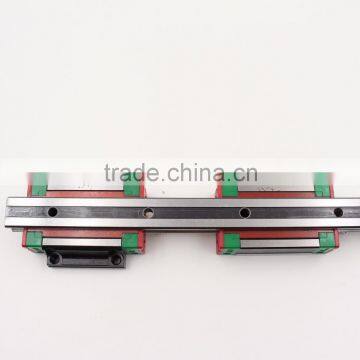

 hiwin linear bearing hgh20ha 1000mm linear rail for cnc machinehiwin linear bearing hgh20ha 1000mm linear rail for cnc machine

Product care maintenance

1.             Lubrication        When using a linear motion system, good lubrication function must be provided. If no lubrication state, guiderail rolling parts of linear guideway will wear faster, and its service life will be shortened.

2.            Rust –proof        It is necessary to confirm material of linear guideway to meet environmental conditions. In order to use in the          Corrosion resistance of the environment, some linear guideways can use Martensitic Stainless Steel.

3.         Dust –proof        if dust and other foreign matter get in to linear guideway ,it will leads to abnormal wear, and shorten its usage life.  so dust and other foreign must be kept out. If necessary ,you can install sealing device or dust-proof device.



Appliance in machine

hiwin linear bearing hgh20ha 1000mm linear rail for cnc machine

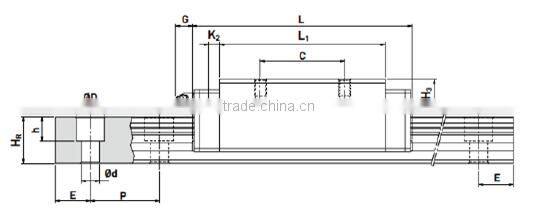

About Drawings and Dimensions



ModelPhysical dimensionBlock dimension
HH1NWBB1C L1LK1K2GM x LTH2H3
HGH 15CA284.39.5342642639.461.4104.855.3M4x567.957.7
HGH 20CA304.612443263650.577.512.25612M5x6866
HGH 20HA5065.292.612.6
HGH 25CA405.512.548356.535588416.8612M6x88109
HGH 25HA5078.6104.619.6
HGH 30CA45616604010407097.420.25612M8x108.59.513.8
HGH 30HA6093120.421.75
HGH 35CA557.5187050105080112.420.6712M8x1010.21619.6
HGH 35HA72105.8138.222.5
HGH 45CA709.520.58660136097139.4231012.9M10x171618.530.5
HGH 45HA80128.8171.228.9
HGH 55CA801323.51007512.575117.7166.727.351112.9M12x1817.52229
HGH 55HA95155.8204.836.4
HGH 65CA901531.5126762570144.2200.243.11412.9M16x20251515
HGH 65HA120203.6259.647.8



ModelRail dimensionSize of Mounting bolt for rail
(mm)		Basica load ratingWeightAllow static moment
WRHRDhdPEC(kN)Co(kN)Block
(kg)		Rail
(kg/m)		MR(kN-m)MP(kN-m)MY(kN-m)
HGH 15CA15157.55.34.56020M4x1611.3816.970.181.450.170.150.15
HGH 20CA2017.59.58.566020M5x1617.7527.760.302.210.380.270.27
HGH 20HA21.1835.900.390.480.470.47
HGH 25CA232211976020M6x2026.4836.490.513.210.640.510.51
HGH 25HA32.7549.440.690.870.880.88
HGH 30CA2826141298020M8x2538.7452.190.884.471.060.850.85
HGH 30HA47.2769.161.161.401.471.47
HGH 35CA3429141298020M8x2549.5269.161.456.301.731.201.20
HGH 35HA60.2191.631.922.292.082.08
HGH 45CA453820171410522.5M12x3577.57102.712.7310.413.102.352.35
HGH 45HA94.54136.463.614.004.074.07
HGH 55CA534423201612030M14x45114.44148.334.1715.085.664.064.06
HGH 55HA139.35196.205.497.497.017.01
HGH 65CA635326221815035M16x50163.63215.337.0021.1810.026.446.44
HGH 65HA208.36303.139.8214.1511.1211.12

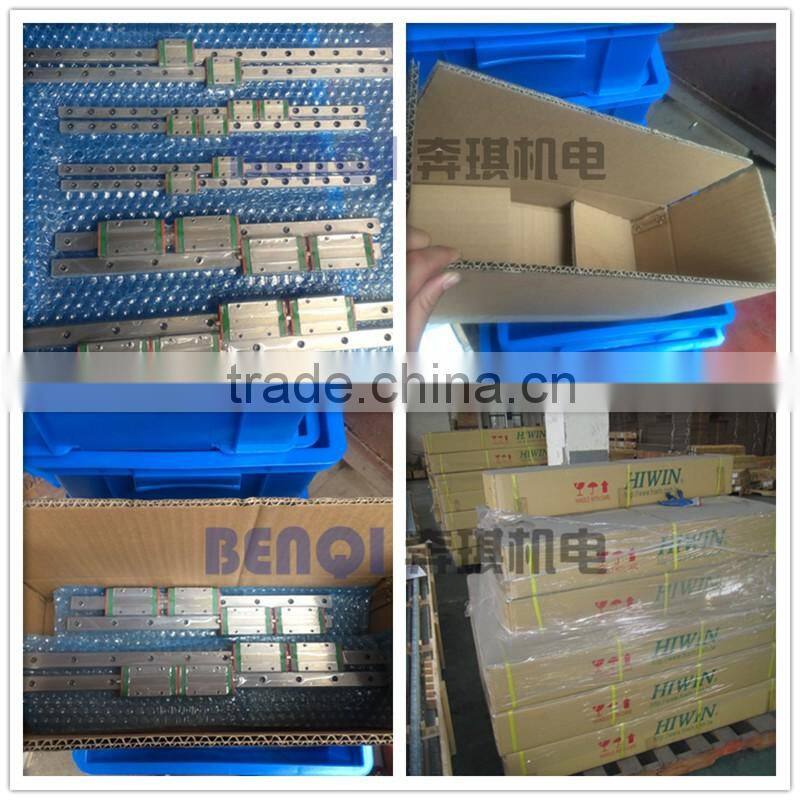

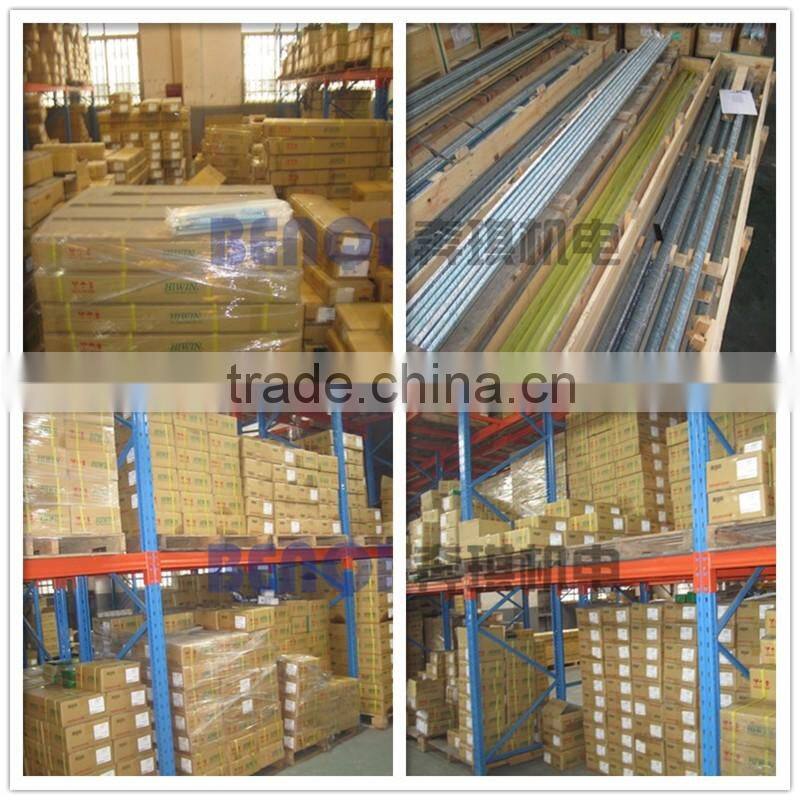

 Package and workshop

About our company

Shanghai BenQi Mechanical & Electrical Equipment Company is a hardware factory, we are Producing domestic BENQI miniature linear guide, Heavy load linear guide and ball screw independently. We are also the commission agent of the HIWIN and TBI.



About Payment

1) T/T: 30% deposit 70% before shipment.

2) L/C at sight. (High bank charge, not suggest, but acceptable)

3)100% Western Union in advance. (Especially for air shipment or small amount)



Why choose us?



A short period of delivery



Generally, we can delivery goods within 5days



Exchangeability



All Linear guideways we produced have exchangeability with Hiwin brand .



Cost-effective



Same product, our product is very competitive in price.



OEM we can also process as your need. but need you provide drawings.





 IF YOU NEED MORE INFORMATION ,CONTACT ME NOW!
