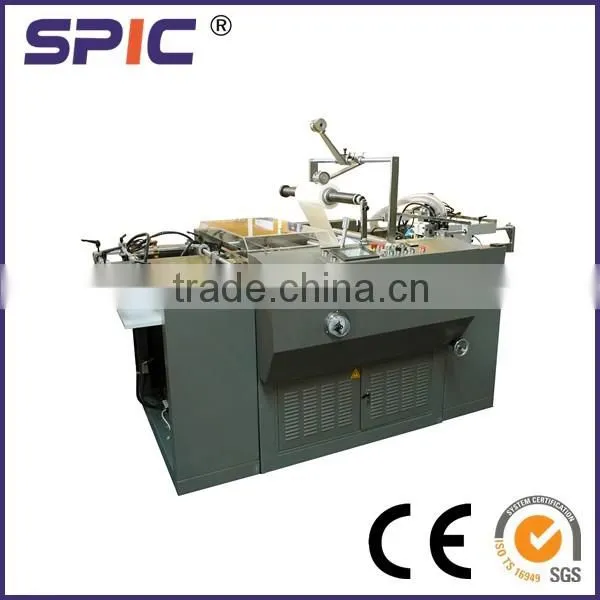

CATL Series Automatic Thermal Laminating Machine
Features:
1. PLC centralized control, frequency speed control, efficient automation design. It’s applicable for different lamination works of digital printing, short-run printing, tag printing.
2. Automatic feeder feeding system, automatic sheet separating system by pneumatic bouncing principle.
3. Compact machine size, easy operation,
4. The PID temperature control system shortens the warming-up time, keep the temperature constantly, and the temperature compensation system also can help you to save energy.
5. Electric hydraulic pressing system insures the high pressure and keeps it constantly.
6. All the main electrics adopt the world famous brands such as OMRON, SCHNEIDER, to guarantee the stable working.
Highlight:
1. Feeding Unit
The feeding unit is independently controlled by the servo motor, it can insure the paper feeding precisely and stable. Both the paper feeding length and the overlapping length can be set through the touching screen.
2. Laminating Unit
1) Heating Roller
We adopt the hollow cylinder structure design for our heating roller which has been plated with high glossy chrome surface. Between the double layers it’s filled with an organic thermal conductive liquid which can shorten the warming-up time, keep the temperature constantly on the surface of the roller(temperature difference can be controlled within ±5℃both on axial and radial direction), and the temperature compensation system also can save more energy. Compare with the oily heating roller, it has the advantages of non-toxic, non-volatile, non-flammable, odorless.
2) Electric Hydraulic Pressing System
The pressure is controlled by the contact voltmeter of the electric hydraulic pressing system. Through adjusting the indicator of the voltmeter, the machine could be set as Max. or Min. pressure. The system would automatically compensate the pressure when it’s needed, to insure the pressure constantly.
3. Auto-stacking Unit
The pneumatic flapping system will stack the laminated paper automatically, which would not only keep the paper pile neatand clean, but also the working environment.
Parameters:
|
FM-520 |
Max. paper size (mm) |
520*740 |
Min. paper size (mm) |
273*393 |
Paper thickness(gsm) |
157~350 |
Max. working speed(m/min) |
30 |
Max. height of the paper pile(mm) |
500 |
Electric Supply |
380V 50/60hz |
Main Motor Power(KW) |
2.2 |
Heating Power(KW) |
4.5 |
Total Power(KW) |
12.3 |
Machine Weight(kg) |
800 |
Dimension(mm) |
2400x1375x1600 |
Note: Machinde sizes can be customzied according to customers.
* The above information and specifications are subjects to change without prior notification.
* SPIC reserves all the rights for final explanations.
