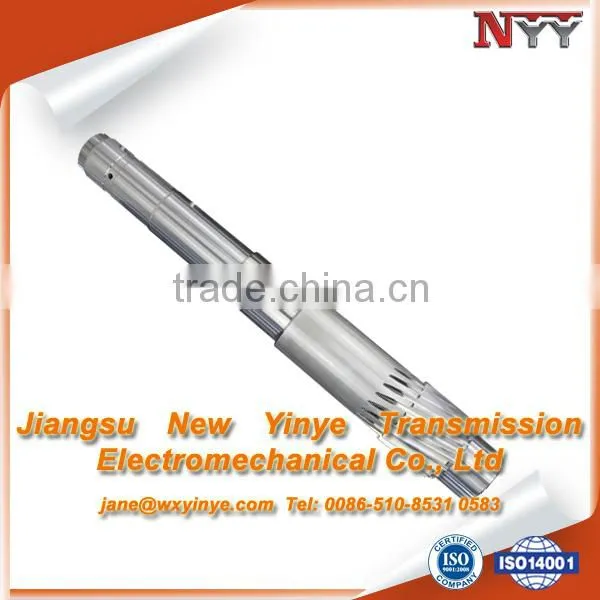

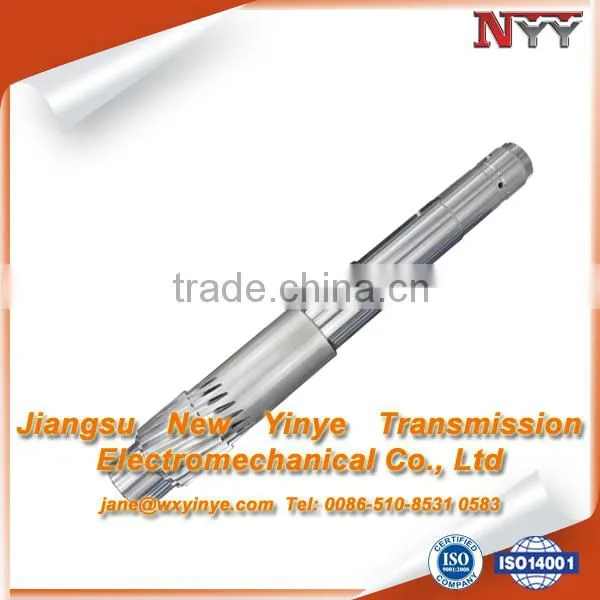

custom precision driver linear shaft
- 5000 Piece / Pieces per Month
- Shanghai
- T/T L/C D/P D/A
Product Details
Structure: | Gear | Material: | Steel | Coatings: | Nickel |
Torque Capacity: | 13330 | Length: | Customers' Request | Model Number: | DSC05343 |
Place of Origin: | Jiangsu, China | Brand Name: | YL |
Product Description
custom precision driver linear shaft
Production Description | |
Product name | gear shaft |
Features | hard tooth surface |
Application | mining machine gear shaft |
Tooth profile | involute |
Material | 18NiCrMo5 |
Process | forging+carburizing and quenching+boring+keyseating+teeth grinding; |
Pressure angle | 20° |
Accuracy grade | DIN 6 |
Type | M=9,Z=19,a=20°,β=13°,x=+0.35, left hand; |
Max. torque N.M | 13330 |
Original place | Jiangsu, China |
Brand | YL |
1. Products: high precision involute spur gears, helical gears, gear boxes, precision sheet metal products
2. Patents: 5 National Invention Patents, over 40 utility new model patents
3. Certifications: ISO 9001: 2008, ISO 14001: 2004
Production Capability
Internal gears, external gears and internal splines:
1. milled
2. shaped
3. ground
4. hobbed
Processing Scope
Our machine tools are able to manufacture gear and spline products with the following specifications:
Processing Capability | |||||
Material | Alloy Steel | Casting Steel | Gray cast iron | Ductile Iron | Weldment |
20CrMnTi | 20CrMnTi | HT200 | QT400-18 | 20CrMnTi | |
20CrMnMo | 20CrMnMo | HT250 | QT400-15 | 20CrMnMo | |
20 CrMo | 20 CrMo |
|
| 20 CrMo | |
35CrMo | 35CrMo |
|
| 35CrMo | |
42CrMo | 42CrMo |
|
| 42CrMo | |
20Cr2Ni4A | 20Cr2Ni4A |
|
| 20Cr2Ni4A | |
20CrNiMo | 20CrNiMo |
|
| 20CrNiMo | |
20CrNi2Mo | 20CrNi2Mo |
|
| 20CrNi2Mo | |
40CrNiMo | 40CrNiMo |
|
| 40CrNiMo | |
18CrNiMo7-6 | 18CrNiMo7-6 |
|
| 18CrNiMo7-6 | |
17CrNiMo6 | 17CrNiMo6 |
|
| 17CrNiMo6 | |
34 CrNiMo6 | 34 CrNiMo6 |
|
| 34 CrNiMo6 | |
18Cr2Ni4WA | 18Cr2Ni4WA |
|
| 18Cr2Ni4WA | |
18Cr2Ni4WE | 18Cr2Ni4WE |
|
| 18Cr2Ni4WE | |
45 C | 45 C |
|
| 45 C | |
40Cr | 40Cr |
|
| 40Cr | |
38CrMoAl | 38CrMoAl |
|
| 38CrMoAl | |
16Mn | 16Mn |
|
| 16Mn | |
16MnCr5 | 16MnCr5 |
|
| 16MnCr5 | |
GCr15 | GCr15 |
|
| GCr15 | |
Module | 1mm-50mm | ||||
Accuracy | DIN Class 4, ISO/GB Class 4, AGMA Class 13, JIS Class 0 | ||||
Standard | DIN, ISO/GB, AGMA, JIS | ||||
Heat treatment | Quenching and tempering, gear teeth induction quenching, nitriding, carburization | ||||
Application | Wind turbine, locomotive, feeding machinery, metallurgy machinery, mining machinery | ||||
Gear shaft length | 2500mm max. | ||||
Weight | 15 tons max. |
Inspection Capability
USA GLeason 1000GMM Gear Testing Center, Portable Hardness Testing Instrument Equotip 3 Mechanical
Property test machines, Spectro Mobile Spectrometer SPECTROMAX,etc.
1. customized service based on requirements
2. design and development service
3. provide high quality products
4. accept small or mix orders
Our company is a customized gear products supplier, we manufacture according to customers' specific requirements,please send us your drawings for any inquiry, thanks!
