Specifications
1. Item:Electro Galvanized Welded Wire Netting2. Material: Galvanized steel
3. Size in roll: 30m * 0.5m
4. Widely used
1. General Introduction: Electro galvanized welded wire netting is made by means of wire drawing followed by heat treatment and electro galvanizing.
2. Materials: Carbon steel wire, mild steel wire.
3. Wire diameter: BWG8# to BWG16#.
We also offer thinner wire down to BWG5# or up to BWG28# upon customer's specific order.
4. Packing: In coils or spools. Single coil package can be as small as 10 kg and up to maximum 1000 kg per coil.
5. Advantages: Thick zinc coating, good corrosion resistance, firm zinc coating, etc.
6. Applications: This kind of industrial wire is mainly used in construction, making of wire nails and wire ropes, express way fencing, binding of flowers and wire mesh weaving.
Specification List of Welded Wire Mesh
Opening
In inch in metric unit (mm) Wire Diameter (BWG)
1/4" x 1/4" 6.4mm x 6.4mm 22, 23, 24
3/8" x 3/8" 10.6mm x 10.6mm 19,20,21,22
1/2" x 1/2" 12.7mm x 12.7mm 16, 17,18,19,20,21,22,23
5/8" x 5/8" 16mm x 16mm 18,19,20,21,
3/4" x 3/4" 19.1mm x 19.1mm 16, 17, 18,19,20,21
1" x 1/2" 25.4mm x 12.7mm 16, 17, 18,19,20,21
3/2" x 3/2" 38mm x 38mm 14, 15, 16,17,18,19
1" x 2" 25.4mm x 50.8mm 14, 15, 16
2" x 2" 50.8mm x 50.8mm 12, 13,14,15,16
Technical Note:
(1) Standard roll length: 30m; width: 0.5m to 1.8m
(2) Special sizes available at request
(3) Packing: in waterproof paper in rolls. Customer’s packing available at request.

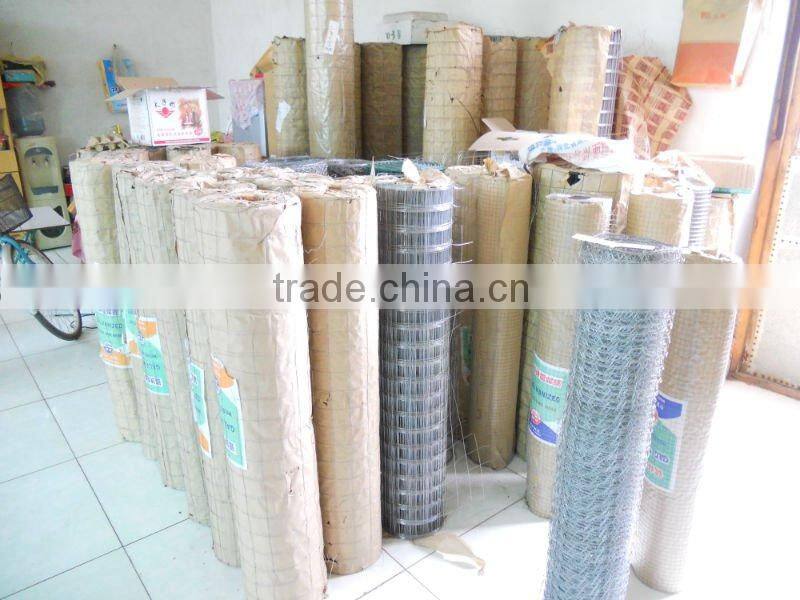

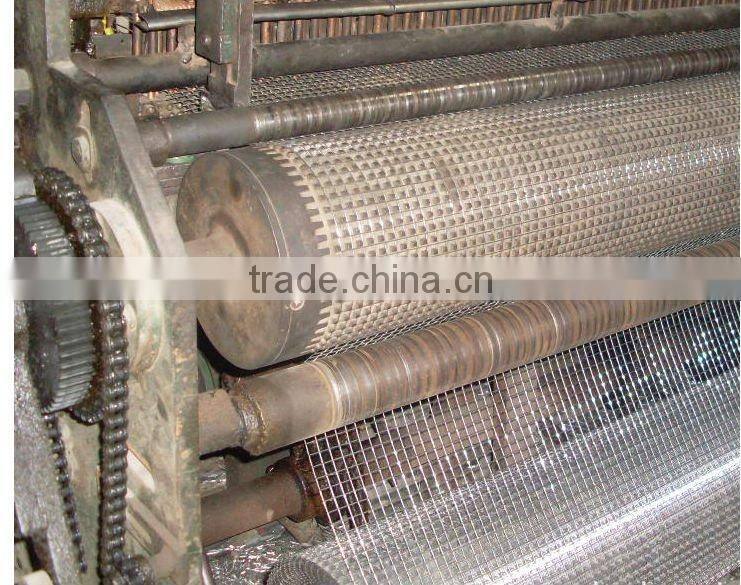

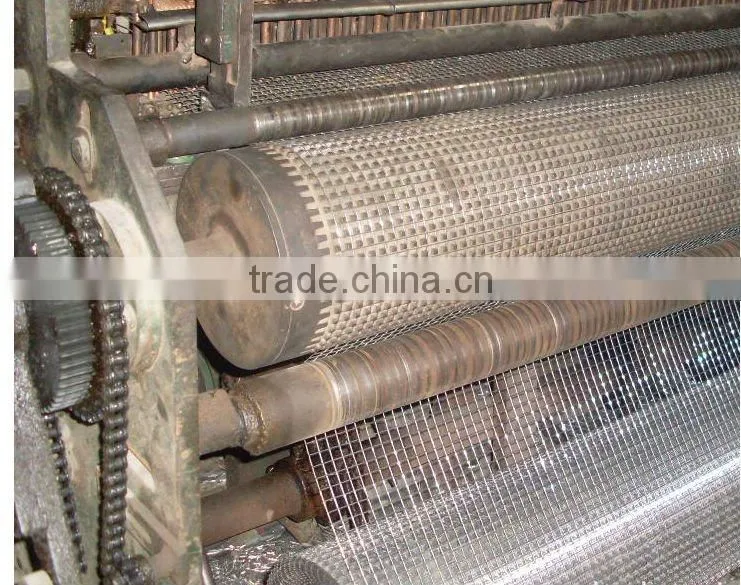

Picture:
|
|
