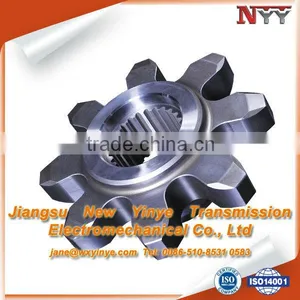

Help CenterMechanical Power Transmission Parts
Related Products
Specifications
1. Professional Gear Manufacturer2. Experience in Cooperate with Fortune 500 Companies
3. Stable Quality
4. Reasonable price
mechanical power transmission parts specifications:
|
Our Feature:
1) In-house capability: OEM service as per customers' requests, with in-house tooling design & fabricating
2) Professional engineering capability: on product design, optimization and performance analysis
3) Manufacturing capability range: DIN 3960 class 8 to 4, ISO 1328 class 8 to 4, AGMA 2000 class 10-15, JIS 1702-1703 class 0 to 2, etc.
4) Packing: Tailor-made packaging method according to customer's requirement
5) Just-in-time delivery capability
Primary Competitive Advantages:
• Professional Gear Manufacturer
• Experience in Cooperate with Fortune 500 Companies
• Professional Engineering Capability
• Stable Quality
• Reasonable Price
• Small Orders Accepted
• Continuous Improvements
• High Product Performance
• Prompt Delivery
• Professional Service
Gear and Gear Shaft Product Specifications:
Material |
Alloy Steel |
Casting Steel |
Gray cast iron |
Ductile Iron |
Weldment |
20CrMnTi |
20CrMnTi |
HT200 |
QT400-18 |
20CrMnTi |
|
20CrMnMo |
20CrMnMo |
HT250 |
QT400-15 |
20CrMnMo |
|
20 CrMo |
20 CrMo |
20 CrMo |
|||
35CrMo |
35CrMo |
35CrMo |
|||
42CrMo |
42CrMo |
42CrMo |
|||
20Cr2Ni4A |
20Cr2Ni4A |
20Cr2Ni4A |
|||
20CrNiMo |
20CrNiMo |
20CrNiMo |
|||
20CrNi2Mo |
20CrNi2Mo |
20CrNi2Mo |
|||
40CrNiMo |
40CrNiMo |
40CrNiMo |
|||
18CrNiMo7-6 |
18CrNiMo7-6 |
18CrNiMo7-6 |
|||
17CrNiMo6 |
17CrNiMo6 |
17CrNiMo6 |
|||
34 CrNiMo6 |
34 CrNiMo6 |
34 CrNiMo6 |
|||
18Cr2Ni4WA |
18Cr2Ni4WA |
18Cr2Ni4WA |
|||
18Cr2Ni4WE |
18Cr2Ni4WE |
18Cr2Ni4WE |
|||
45 C |
45 C |
45 C |
|||
40Cr |
40Cr |
40Cr |
|||
38CrMoAl |
38CrMoAl |
38CrMoAl |
|||
16Mn |
16Mn |
16Mn |
|||
16MnCr5 |
16MnCr5 |
16MnCr5 |
|||
GCr15 |
GCr15 |
GCr15 |
|||
Modulus |
1mm-50mm |
||||
Accuracy |
DIN Class 4, ISO/GB Class 4, AGMA Class 13, JIS Class 0 |
||||
Standard |
DIN, ISO/GB, AGMA, JIS |
||||
Heat treatment |
Quenching and tempering, gear teeth induction quenching, nitriding, carburization |
||||
Application |
Wind turbine, locomotive, feeding machinery, metallurgy machinery, mining machinery |
||||
Gear shaft length |
2500mm max. |
||||
Weight |
15 tons max. |
||||
Capabilities of Gears/ Splines
INTERNAL GEARS AND INTERNAL SPLINES | |||
Milled |
SHAPED |
GROUND |
|
Maximum O.D. |
2500 mm |
2500 mm |
2500 mm |
Minimum I.D. |
30 mm |
30 mm |
320 mm |
Maximum Face Width |
500 mm |
500 mm |
500 mm |
Maximum DP |
DP 1 |
DP 1 |
DP 0.5 |
Maximum Module |
26 mm |
26 mm |
45 mm |
AGMA Level/ DIN Level |
DIN Class 8 |
DIN Class 8 |
DIN Class 4 |
Tooth Finish |
Ra 3.2 |
Ra 3.2 |
Ra 0.6 |
Maximum Helix Angle |
±22.5° |
±22.5° |
±45° |
EXTERNAL GEARS AND EXTERNAL SPLINES | |||
HOBBED |
MILLed |
GROUND |
|
Maximum O.D. |
2500 mm |
2500 mm |
2500 mm |
Minimum O.D. |
20 mm |
20 mm |
20 mm |
Maximum Face Width |
500 mm |
500 mm |
1480 mm |
Maximum DP |
DP 1 |
DP 1 |
DP 0.5 |
Maximum Module |
26 mm |
26 mm |
45 mm |
AGMA Level/ DIN Level |
DIN Class 8 |
DIN Class 8 |
DIN Class 4 |
Tooth Finish |
Ra 3.2 |
Ra 3.2 |
Ra 0.6 |
Maximum Helix Angle |
±45° |
±45° |
±45° |
Q&A:
Trade information:
1. Q: What’s the MOQ (minimum order quantity)?
A: One piece.
2. Q: What’s the best FOB price?
A: Our price is made as per your drawing specification as well as the purchasing quantity.
3. Q: What’s the lead time?
A: Normally, it takes around 60 days.
4. Q: Why the lead time is so long?
A: One gear part is made in around 20 machining processes. If every process takes 1 to 2 days, then it’s already at least 40 days. Not to say the forging and heat treatment time which take around 7 days min.
5. Q: What’s the payment term?
A: FOB Shanghai, paid by T/T. We will ask for down payment before production, and the balance paid off before shipment. Of course, we may also negotiate it.
6. Q: What kind of packing can you provide?
A: Tailor-made packaging method according to customer's requirement, otherwise, we will make the sea-worthy packing.
7. Q: Which countries have you exported?
A: Germany, Denmark, Spain, Holland, Italy, Japan, India, Indonesia, etc.
Service and quality information:
8. Q: Can you make as per custom drawing?
A: Yes, we can do that.
9. Q: If I don’t have drawing, what can you do for me?
A: If you don’t have drawing, but have the sample part, you may send us. We will check if we can make it or not.
10. Q: How do you make sure the quality of your products?
A: We will do a series of inspections, such as:
a. raw material inspection (includes chemical and physical mechanical characters inspection),
b. machining process dimensional inspection (includes: 1st pc inspection, self inspection, final inspection),
c. heat treatment result inspection,
d. gear tooth inspection (to know the achieved gear quality level),
e. magnetic particle inspection (to know if there’s any cracks in the gear).
We will provide you the reports 1 set for each batch/ shipment.
