Aluminum Strip For Cable Armouring

Specifications

1.Temper: H14, H16, H18, H24, O
2.Thickness: 0.02mm - 10mm
3.Width: 15mm -1220mm
4.Length: Coil

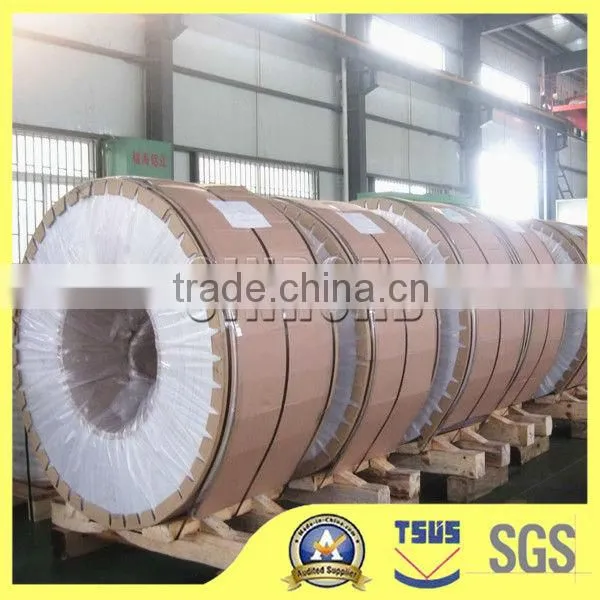

Aluminum Coil

 1.Description of aluminum coil

 a.Aluminum Alloy: 1050, 1060, 1070, 1100, 3003, 3004, 5052, 5754,5082, 5083, 8011
 b.Temper: H14, H16, H18, H24, O
 c.Thickness: 0.02mm - 10mm
 d.Width: 15mm -1220mm
 e.Length: Coil
 f.Package: Export standard, wooden case or wooden pallet

 g.Use: Transformer, cable, car water tank, radiator, bottle cap, ect.



2.Payment item:By T/T or by L/C(at sight)

3.Delivery time:15 days after the prepayment
4.OEM:Welcome



Aluminum Coil Specification



Product Code #	Thickness TTL (μm)	Thickness AL (μm)	Thickness Adhesive(μm)	Thickness PET (μm)	Specific Gravity(g/M2)	Tensile Strength (Kgf/mm2)	Breaking Strength (Kgf/mm)	Elongation (%)
SR007012	22 ±3	7	3	12	39 ±2	8.2	0.18	35
SR007015	25 ±3	7		15	43 ±3	7.2	0.18	35
SR010012	25 ±3	10		12	47 ±3	7.2	0.18	35
SR015012	30 ±3	15		12	60 ±4	6.7	0.20	20
SR010025	38 ±3	10		25	65 ±4	7.9	0.30	35
SR030012	45 ±3	30		12	101 ±5	6.7	0.30	15
SR010038	51 ±4	10		38	83 ±4	8.8	0.45	35
SR035012	50 ±4	35		12	115 ±5	8.0	0.40	15
SR025025	53 ±3	25		25	106 ±5	8.5	0.45	20
SR010050	63 ±5	10		50	100 ±5	9.5	0.60	35
