Right Hand Small Helical Grinding Gear
- Shanghai
- T/T L/C D/P D/A
You May Like
Product Details
| Standard or Nonstandard | Nonstandard | Tooth Profile | Other, Helical Gear, Involute | |
| Direction | Left Hand | Material | Steel | |
| Processing | Forging | Pressure Angle | 20° | |
| Place of Origin | Jiangsu, China | Model Number | DSC05569 | |
| Brand Name | YL |
Product Description
right hand small helical grinding gear
Production Description | |
Product name | helical gear |
Features | hard tooth surface |
Application | mining machine gear |
Tooth profile | involute |
Material | 18CrNiMo6 |
Process | forging+carburizing and quenching+internal grinding+teeth grinding+linear cutting; |
Pressure angle | 20° |
Accuracy grade | DIN 6 |
| Type | M=10,Z=33,a=20°,β=8°,x=+0.2, right hand; |
Original place | Jiangsu, China |
Brand | YL |
1. Products: high precision involute spur gears, helical gears, gear boxes, precision sheet metal products
2. Patents: 5 National Invention Patents, over 40 utility new model patents
3. Certifications: ISO 9001: 2008, ISO 14001: 2004

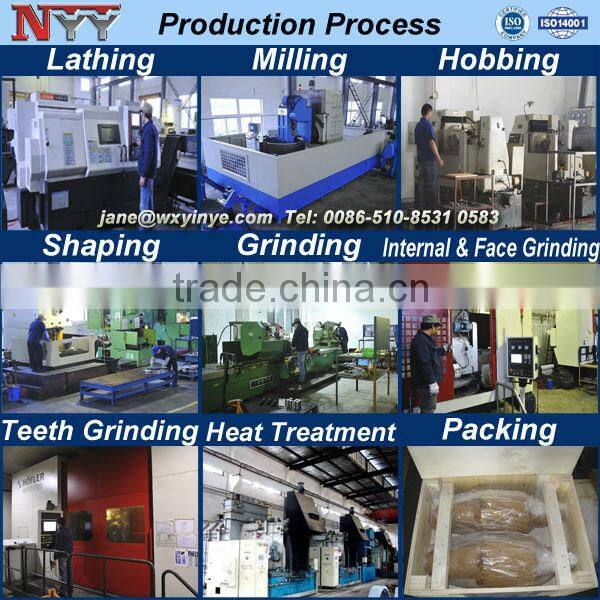

Production Capability
Internal gears, external gears and internal splines:
1. milled
2. shaped
3. ground
4. hobbed
Processing Scope
Our machine tools are able to manufacture gear and spline products with the following specifications:
Processing Capability | |||||
Material | Alloy Steel | Casting Steel | Gray cast iron | Ductile Iron | Weldment |
20CrMnTi | 20CrMnTi | HT200 | QT400-18 | 20CrMnTi | |
20CrMnMo | 20CrMnMo | HT250 | QT400-15 | 20CrMnMo | |
20 CrMo | 20 CrMo |
|
| 20 CrMo | |
35CrMo | 35CrMo |
|
| 35CrMo | |
42CrMo | 42CrMo |
|
| 42CrMo | |
20Cr2Ni4A | 20Cr2Ni4A |
|
| 20Cr2Ni4A | |
20CrNiMo | 20CrNiMo |
|
| 20CrNiMo | |
20CrNi2Mo | 20CrNi2Mo |
|
| 20CrNi2Mo | |
40CrNiMo | 40CrNiMo |
|
| 40CrNiMo | |
18CrNiMo7-6 | 18CrNiMo7-6 |
|
| 18CrNiMo7-6 | |
17CrNiMo6 | 17CrNiMo6 |
|
| 17CrNiMo6 | |
34 CrNiMo6 | 34 CrNiMo6 |
|
| 34 CrNiMo6 | |
18Cr2Ni4WA | 18Cr2Ni4WA |
|
| 18Cr2Ni4WA | |
18Cr2Ni4WE | 18Cr2Ni4WE |
|
| 18Cr2Ni4WE | |
45 C | 45 C |
|
| 45 C | |
40Cr | 40Cr |
|
| 40Cr | |
38CrMoAl | 38CrMoAl |
|
| 38CrMoAl | |
16Mn | 16Mn |
|
| 16Mn | |
16MnCr5 | 16MnCr5 |
|
| 16MnCr5 | |
GCr15 | GCr15 |
|
| GCr15 | |
Module | 1mm-50mm | ||||
Accuracy | DIN Class 4, ISO/GB Class 4, AGMA Class 13, JIS Class 0 | ||||
Standard | DIN, ISO/GB, AGMA, JIS | ||||
Heat treatment | Quenching and tempering, gear teeth induction quenching, nitriding, carburization | ||||
Application | Wind turbine, locomotive, feeding machinery, metallurgy machinery, mining machinery | ||||
Gear shaft length | 2500mm max. | ||||
Weight | 15 tons max. | ||||

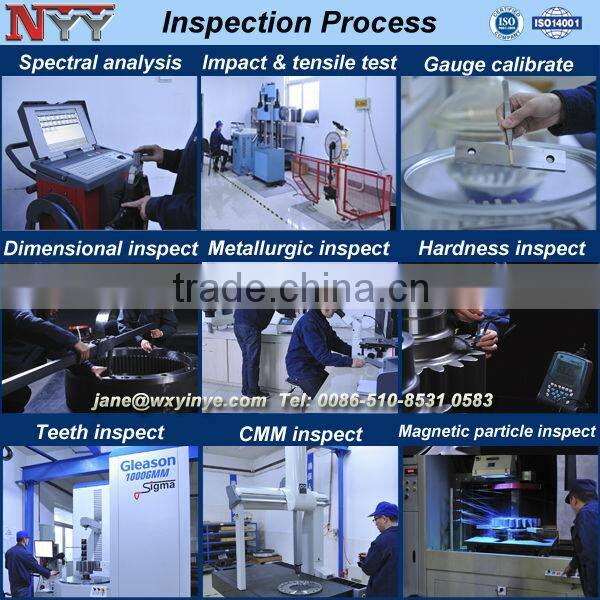

Inspection Capability
USA GLeason 1000GMM Gear Testing Center, Portable Hardness Testing Instrument Equotip 3 Mechanical
Property test machines, Spectro Mobile Spectrometer SPECTROMAX,etc.
1. customized service based on requirements
2. design and development service
3. provide high quality products
4. accept small or mix orders
Our company is a customized gear products supplier, we manufacture according to customers' specific requirements,please send us your drawings for any inquiry, thanks!
