Heavy Duty Take Up System with Tension Structure for Printer
Product information:
1.The first take up system with inductive tension and track design in domestic.
2.Adopt the inductive tension structure, stretch the graphics smoothly, avoid the medium deviating or scratching the nozzles, ensure neat rolling.
Specification:
Model: |
AFN-T103 |
Available width: |
1300mm (54”) |
Voltage: |
24V |
Power: |
36W |
Motor warranty: |
12MONTHS |
Paper core diameter: |
2”(Ø48-53mm) / 3”(Ø75-80mm) |
Max. media diameter |
Ø260mm |
Bearing weight: |
50KG |
Packing size: |
2300*360*390mm |
G.weight: |
32KG |
Working printer: |
INKJET PRINTER, like: ROLAND, MIMAKI, EPSON, MUTOH, GONGZHENG, etc.. |
Applicable material: |
Water-based media: PP, Transfer paper, Adhesive sticker, etc.. |
Eco-solvent media: Car sticker, Wallpaper, etc… | |
Sublimation media: Banner, Chemical fabrics without elasticity, etc. | |
More information, please contact us. | |
Detailed fetures:
1.Tension Bar & Inductive Sensor
Using paricular tension bar & inductive sensor to achieve automatically take up, ensure neat rolling.

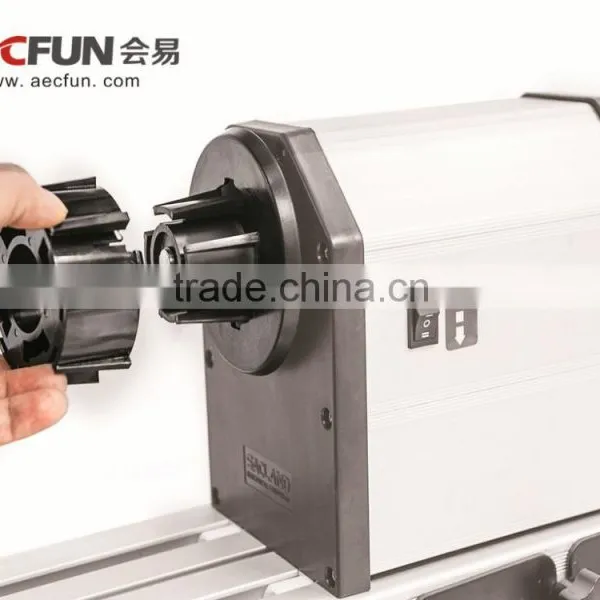

2.New Version Plastic Axis
New plastic axis is suitable for 2" (Ø48-53mm)-3"(Ø75-80mm) paper core. It is much stronger and wearproof.
3. Creative Track Design
Track design ensures machine main holder removable to match paper core in different width.
4.Horizontal Ajustment Screw & Universal Linking Slab
On both sides of the bottom has screw to adjust balance. Special designed universal linking slab is fixed directly to any printer without punching hole.
Applications:
Packing:
2.Package
