GS6000 PRINTER Take up Device

GS6000 PRINTER Take up Device thumbnail-1
GS6000 PRINTER Take up Device thumbnail-2
GS6000 PRINTER Take up Device thumbnail-3
GS6000 PRINTER Take up Device thumbnail-4
GS6000 PRINTER Take up Device thumbnail-5
GS6000 PRINTER Take up Device thumbnail-6

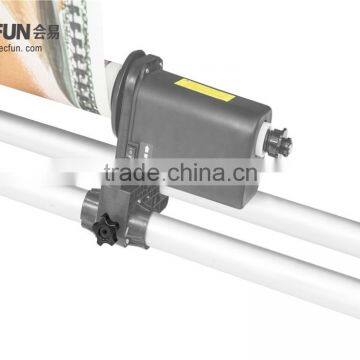

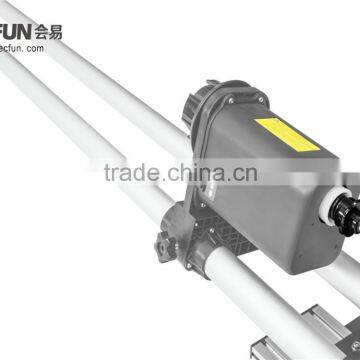

GS6000 PRINTER Take up Device photo-1
GS6000 PRINTER Take up Device photo-2
GS6000 PRINTER Take up Device photo-3
GS6000 PRINTER Take up Device photo-4
GS6000 PRINTER Take up Device photo-5
GS6000 PRINTER Take up Device photo-6
US$ 245 - 260 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
JACLAND
Model Number:
K3
Contact Supplier Request Quote Chat Now
Jiaxing AECFUN Commercial&Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI/NINGBO
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name JACLAND
Model Number K3
Type Roller
Use Other, roland
Printing Type Inkjet Printer

Passive Padiator Automatioc Damper Take Up System K3

GS6000 PRINTER Take up device



Ps: Take up system K3 series has 3 normal sizes: 54" 1300mm/ 64"1600mm/ 64"1800mm

Product information:

  • 1.Universal linking slab, easy fixed on the printers' feet. Apply to any printer.
  • 2.Improved through-hole to fix removable track. Bearing 35kg medias.
  • 3.Simple passive padiator ensure easy operation, neat rolling.



GS6000 PRINTER Take up device

Specification:

Model:

AFN-K317

Available width:

1600mm (64”)

Voltage:

12V

Power:

24W

Torque:

30KGCM

Paper core diameter:

2”(Ø48-53mm) / 3”(Ø75-80mm)

Max. media diameter

Ø220mm

Bearing weight:

35KG

Packing size:

Rolling tube:1900*65*100mm;   Main holder:450*440*290mm

G.weight:

Rolling tube:3kg/pc.  Main holder: 7.5kg/set

Working printer:

INKJET PRINTER, like: ROLAND, MIMAKI,  MUTOH, GONGZHENG, etc..

Applicable material:

Water-based media: PP, Transfer paper, Adhesive sticker, etc..

Eco-solvent media: Car sticker, Wallpaper, etc…

Sublimation media: Banner, Chemical fabrics without elasticity, etc.

More information,  please contact us.





Detailed features:

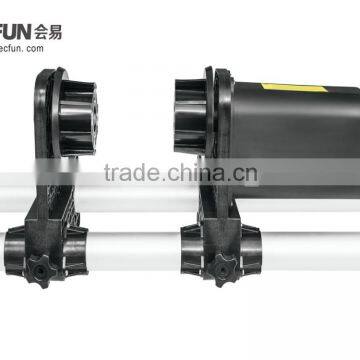

1. Creative & Easy Body Design

Removable main holders, suitable for paper core in different width. Motor drives internal rolling and external rolling.

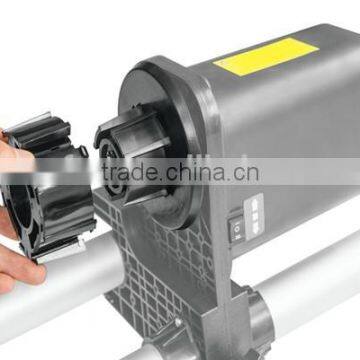

2. New Plastic Axis

New plastic axis is suitable for 2" (Ø48-53mm)-3"(Ø75-80mm) paper core. It is much stronger and wearproof.

GS6000 PRINTER Take up device

3. Adjustable Torque and Fastening Screw Design

Both diameter and weight of media are changing during printing process. The strength of rolling can b  e adjusted by torque.

Fastening screws of main holders fix the paper core tightly to insure neat rolling.



GS6000 PRINTER Take up device

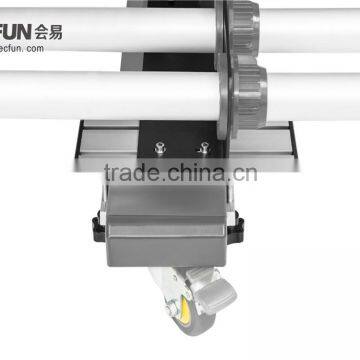

4. Universal Linking Slab & Through-hole

Special designed universal linking slab is fixed   directly to any printer without punching hole.

Through-hole can efficiently eliminate the size deviation caused by printer, strong bearing.

GS6000 PRINTER Take up device



Instruction:

GS6000 PRINTER Take up device



Applications:

GS6000 PRINTER Take up device



Packing:

GS6000 PRINTER Take up device

2. Package

GS6000 PRINTER Take up device



Packaging Details
  • Unit Type: piece
  • Package Weight: 10.500kg (23.15lb.)
  • Package Size: 190cm x 7cm x 10cm (74.80in x 2.76in x 3.94in)
