Acrylic Bending Machine

Acrylic Bending Machine photo-1

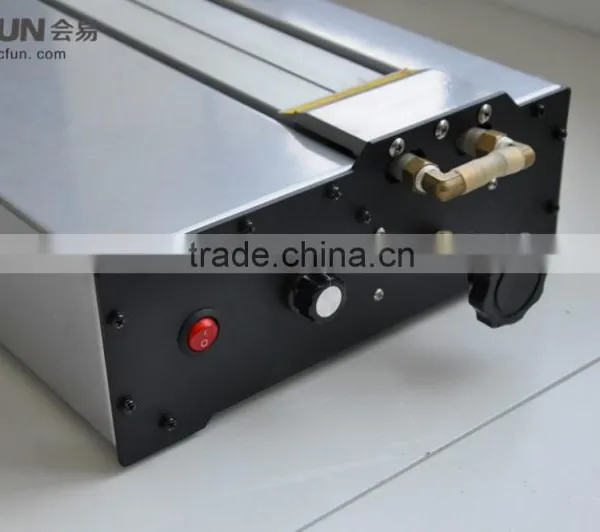

Acrylic Bending Machine photo-2
Acrylic Bending Machine photo-3
Acrylic Bending Machine photo-4
Acrylic Bending Machine photo-5
Acrylic Bending Machine photo-6
US$ 430 - 500 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Zhejiang, China
Brand Name:
AECFUN
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI/NINGBO
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Place of Origin Zhejiang, China
Brand Name AECFUN
Model Number ABM
Machine Type Beading Machine
Raw Material Steel Bar
Material / Metal Processed Plastic
Power Other, electric
Automation Manual
Extra Services Heat Treating
Certification CE
After-sales Service Provided No overseas service provided

Manual Acrylic Bending Machine ABM700/ 1300 Large Format Working Plate

Acrylic bending machine

Production information:

Acrylic bending machine is also called plastic plate bending machine, soften and bend the plastic plate by heating.

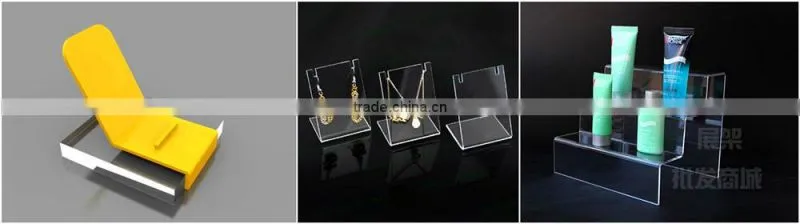

Applications:

Acrylic bending machineAcrylic bending machine

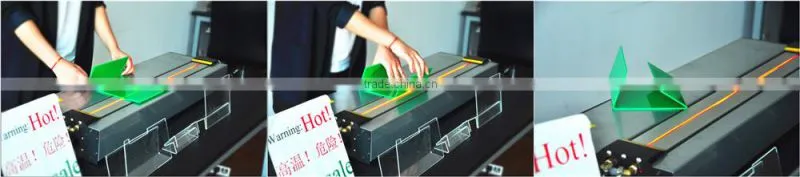

Demonstration:

Acrylic bending machineAcrylic bending machine



Sepecification:

Acrylic bending machine
Model Theory Applicable length Applicable thickness Voltage Power Temperature Range Outline size Weight
ABM700 Thermal forming <700mm 3-10mm 220v 800w 0-600 1100*360*150mm 15kgs
ABM1300 Thermal forming <1250 3-10mm 220V 1500W 0-600 1700*360*150mm 25kgs
More information, please contact us!



 Detailed features:

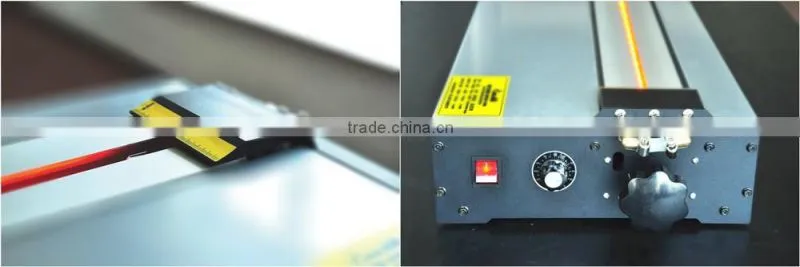

1.Temperature Adjustable:0-600Centigrade

Working temperature adjustable within 0-600Centigrade, due to different thickness of sheet material.

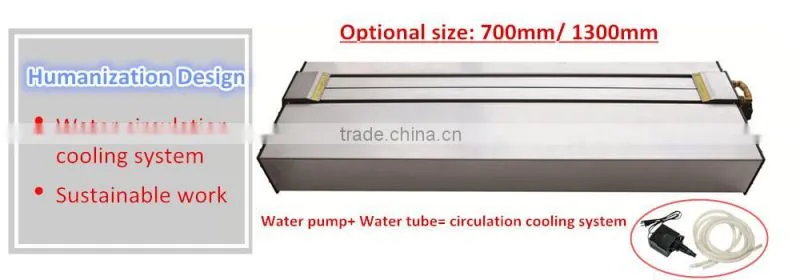

2.Circulating Water Cooling System

Adopted advanced infrared heating technology and circulating water cooling system ensure fast cooling.

Acrylic bending machine

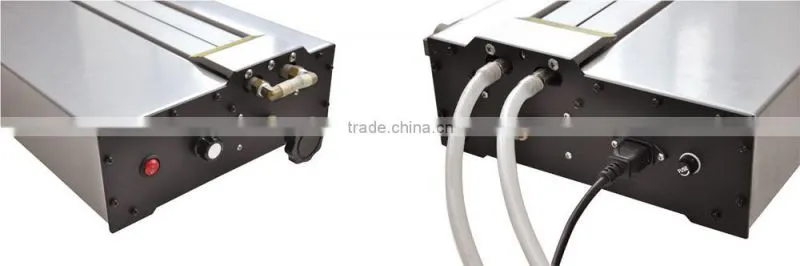

3.Heating Gap Width Ajustable:0-20mm

According to different material and thickness of sheet, heating gaps width can be adjustable with 0-20mm.

Acrylic bending machine

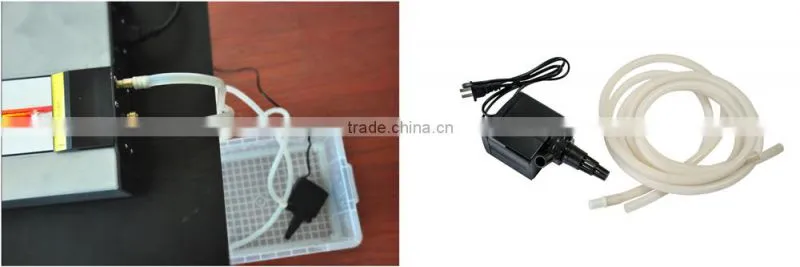

4.Standard Configuration:

Water pump, water tube keep the work plate cool to avoid any hurt.

Acrylic bending machine

Note:

1.When water temperature up to 50 Centigrade, replace the water after heavy, long time working. To keep circulating cooling system works in good effect.

2.After working, ensure the machine cool completely, then turn off heating tube gap.

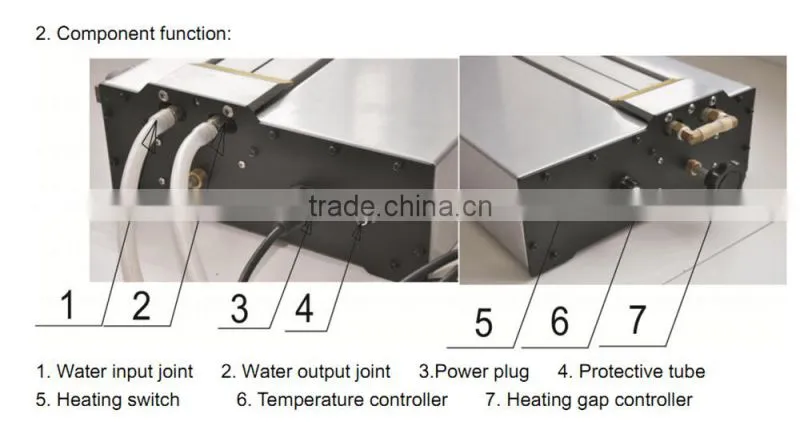

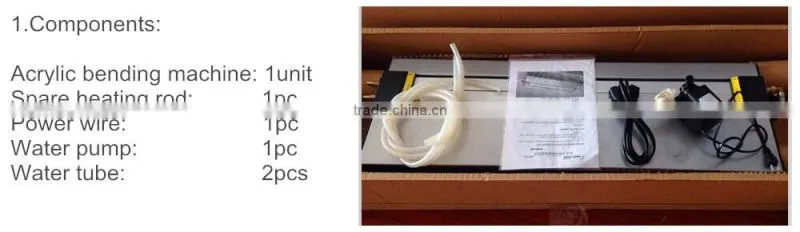

Components Introduction:

Acrylic bending machineAcrylic bending machine

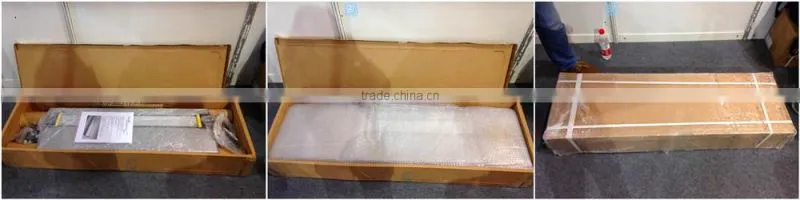

Packing:

Acrylic bending machine

  Q & A:

Problem 1: No heating

Fault: Check whether the power works or not.

Solution: Make sure the power on.

Fault: Whether the temperature controller is in lowest or not.

Solution: Adjust the temperature controller to a high scale.

Fault: Whether the protective tube is intact or not.

Solution: Replace the protective tube.





Problem 2: Can not pump the water



Fault: Whether the pump has electric to work or not.



Solution: Replace the damaged pump.



Fault: Whether there is much air in the tube.



Solution: Fill up two tubes with water, dip the pump into water.



Packaging Details

  • Unit Type: piece
  • Package Weight: 25.000kg (55.12lb.)
  • Package Size: 125cm x 43cm x 21cm (49.21in x 16.93in x 8.27in)
