Portable Arc Welding Machine/ Inverter Welder for Arc Welding With CE ZX7-160
- Shanghai/Ningbo
- T/T Credit Card PayPal
You May Like
Product Details
| Condition | New | Place of Origin | Zhejiang, China | |
| Brand Name | SONSCN/OEM | Model Number | ARC160P | |
| Arc Current | 10-160A | Pulse Frequency | 60Khz | |
| Pilot Arc Current | 20a | Rated Duty Cycle | 35%@160A,60%@120A | |
| Motor Type | Other, no motor | Dimensions | 31x13x21cm | |
| Usage | Metal welding | Voltage | 220V | |
| Power(W) | 4.8KW | Certification | CE CCC | |
| Warranty | 1 Year | After-sales Service Provided | Overseas service center available |
Product Description
Portable arc welding machine/ inverter welder for arc welding with CE ZX7-160
Portable arc welding machine/ inverter welder for arc welding with CE ZX7-160 has charactristics:
1. An industrial grade ultra powerful lightweight 160amp Arc/Stick/MMA welding machine with CE approval.
2. Protection for over voltage, over current. This welder adopts advanced circuitry ensuring consistent performance and reliability day in and day out.
3. This arc welding machine/MMA welding machine/welder uses advanced inverter technology (IGBT Inverters) which allows for an ultra powerful welder that is lightweight (4.5kgs).
4. Handle on top allows you to carry the unit for those off site jobs requiring portability.
5. The beauty of this welder is that it does not sacrifice power output for its reduced weight.
6. The circuitry of the inverter welding machine reduces energy costs up to 50% compared to traditional welders while being highly effective.
7. The welders robustness makes it usable for your average weekend hobbier all the way up to your Industrial welding machine.
8. The Inverter technology produces a very stable and reliable welding current.
Technical data:
Model | ARC160P | Input voltage | 50/60hz(1ph) |
230V, 110V ±10% | |||
Rated input current | Max.24A | No-load voltage | 80V |
Efficiency | 85% | Input power | Max.5kw |
Current range | 10-160A | Duty cycle | 35%@160A; 60%@120A |
Welding rod | 1.5-3.2mm | Weight | 3.9kgs |
Protection class | IP21 | Dimensions | 28*11*17cm |
Standard | CE,CCC | Trademark | OEM/SONSCN |
Product pictures
Unit Includes |
Inverter Welder box carton |
or
Unit Includes |
Inverter Welder plastic suitcase (carrying case) carton |
There are standard accessories and optional accessoies for your choose.

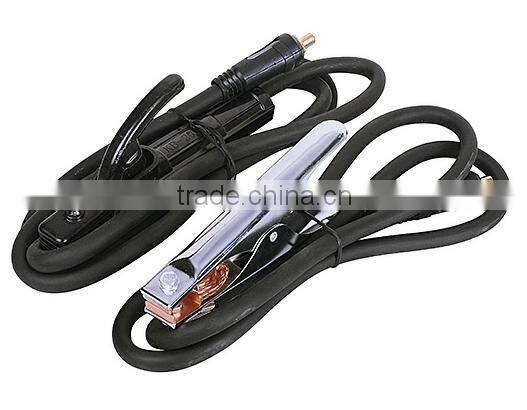

Standard accessories | Connector |
Electrode holder | |
Earth clamp | |
Cable | |
Optional accessories | Wire brush |
Welding mask | |
Plastic tool box | |
|
1. One Portable arc welding machine/ inverter welder for arc welding with CE ZX7-160 and the accessories put in 1 color box or 1 cardboard box
Then 2 boxes put in one standard carton.
2. One Portable arc welding machine/ inverter welder for arc welding with CE ZX7-160 and the accessories put in 1 plastic tool box.
Then 2 boxes put in one standard carton.
1. Cardboard/color box packing | 2.Plastic tool box packing | ||
Box size | 36.5x15x28cm | Tool box size | 43x15x37cm |
Carton size | 38x33x30.5cm (2boxes/carton) | Carton size | 43x31x39cm (2boxes/carton) |
G.W/CTN | 14kgs | G.W/CTN | 17.5kgs |
20FT'S | 1470pcs/735ctns | 20FT'S | 1040pcs/520ctns |

Company Information
Yongkang Songshi Electric Appliance Factory was founded in 2002,which is located in beautiful YongKang City, Zhejiang Province in china. We are a hi-tech enterprise integrating the researching, developing, manufacturing, testing, selling and after sale’s service of dc manual use Inverter welding machine ARC200 elding machines.
SONGSHI specialize in manufacturing dc manual use Inverter welding machine ARC200 , circuit boards and Jump starters. The main series of the Portable arc welding machine/ inverter welder for arc welding with CE ZX7-160 are MMA and TIG, with IGBT from America, Japan, Europe, Germany etc. All the products are sold to more than 20 countries in regions, such as Europe, America, Russia, Australia, Middle East, Asia, Brazil and Thailand.
SONGSHI has large scale production based with total 3 area of construction area, 3200 grand meters and has 120 employees. Includes professional production line, module making, researching, testing and assembling lines. The production capacitor is 250.000pcs one year.

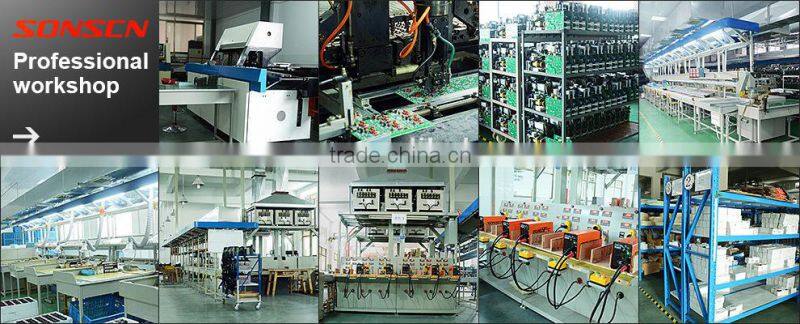

Work shop
There are 5 workshops during one welding machine production.
Work shop | Worker | Machine | Quantity/day | Work time |
Components insert in board | 10 | 3 | 1000pcs | 10hours |
Boards work shop | 40 | 10 | 1000pcs | 10hours |
Assemble workshop | 40 | 10 | 1000pcs | 10hours |
Printing workshop | 5 | 3 | 1000pcs | 10hours |
Testing workshop | 10 | 10 | 1000pcs | 10hours |
Certification
Our Portable arc welding machine/ inverter welder for arc welding with CE ZX7-160 are applied the certificate of CE,GMC,CCC etc.

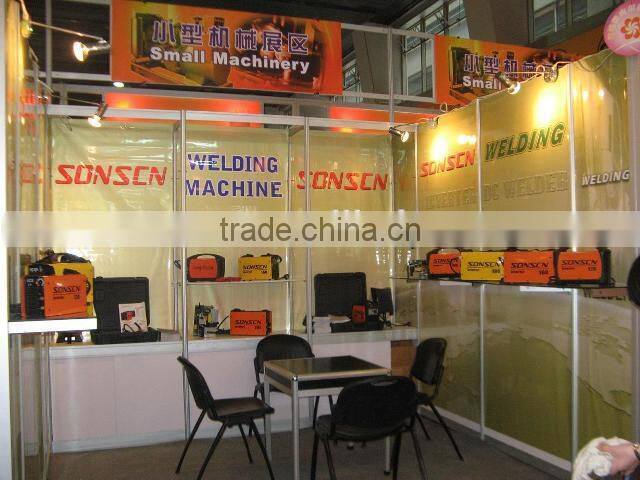

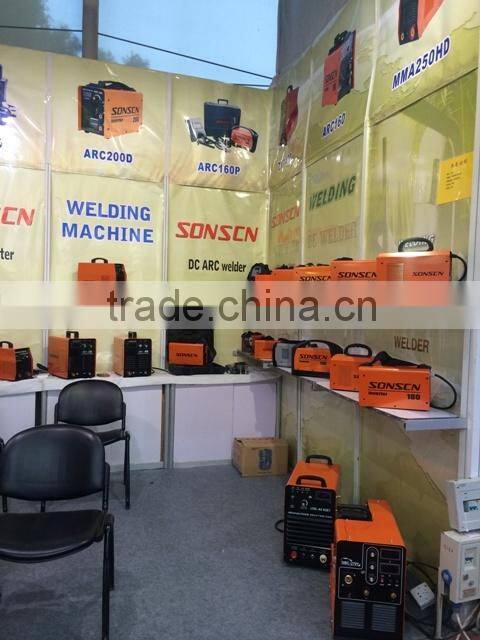

Attend the Canton Fair
Every year we attend twice Canton Fair , You can see all our Portable arc welding machine/ inverter welder for arc welding with CE ZX7-160 in the fair and check the quality of the products. Highly welcome come to visit our factory after the fair. Let's talk face to face.
FAQ
Q: Where is your factory?
A: Yongkang City, Zhejiang, China
Q: What kind of certificate you have?
A: CE and CCC, All kinds of certificates can be supply based on large purchase quantity.
Q:How long will it take if asking for the samples?
A: General speaking, 3 working days upon receipt of the payment.
Q:What is your lead time for the mass products such as 5000 units per item?
A: It is about 25-35 days after getting the advance payment.
Q:What is your payment terms?
A: T/T, by cash, western union, or L/C.
Q: What are your market reach throughout the region?
A:Our markets around the world in every corner, we have 8 years of experience in foreign trade
Q:What is your main product line?
A:We mainly produce inverter arc welders, TIG welders, Jumper starter and UPS, and offer ODM service also.
Q:Are you factory or trading company?
A:We are a factory, we provide OEM services.
Q: What is your warranty?
A: It is 12months. Usually we supply some spare parts for the customer repair with next order if there is any broken.
