Specifications
Professional manufacturerAdvanced production equipment
Delivery just- in -time
World famous top-leveled design software
Cnc machined metal gear
Jiangsu Yilian Gear Transmission Machinery Co.,Ltd is a hightechenterprise specializing in manufacturing high precision
involute cylindrical gears,dis-shaped helicalgears,gear boxes and precision sheet metal products.
|
PRODUCT DETAILS
| |

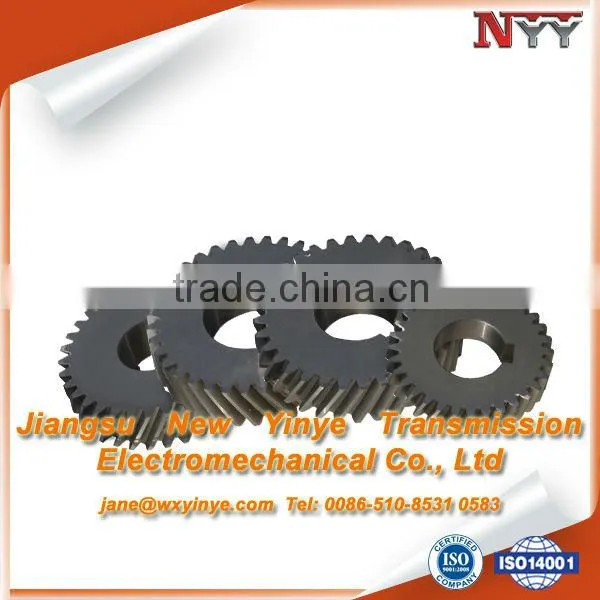

Product name |
metal gear |
Features |
dis-shaped gear,hard tooth surface,modified |
Application |
Din grade 6 ,for air compressor |
Tooth profile |
involute+modified |
Material |
16MnCr5 |
Process |
forging+carburizing +grinding |
Pressure angle |
20° |
Model |
Mn=3,Z=39,β=27°19′10″,a=20°,left hand; Mn=3,Z=38,β=28°43′36″,a=20°,left hand; Mn=3,Z=40,β=28°43′36″,a=20°,right hand; Mn=3,Z=33,β=25°50′31″,a=20°,right hand; Mn=3,Z=30,β=25°50′31″,a=20°,right hand; Mn=3,Z=35,β=28°43′36″,a=20°,right hand; Mn=3,Z=38,β=27°19′10″,a=20°,right hand; Mn=3,Z=38,β=28°43′36″,a=20°,right hand; |
Original place |
jiangsu,China |
Brand |
NYY |
PROCESSING CAPABILITY | |||||
Material |
Alloy Steel |
Casting Steel |
Gray cast iron |
Ductile Iron |
Weldment |
20CrMnTi |
20CrMnTi |
HT200 |
QT400-18 |
20CrMnTi |
|
20CrMnMo |
20CrMnMo |
HT250 |
QT400-15 |
20CrMnMo |
|
20 CrMo |
20 CrMo |
|
|
20 CrMo |
|
35CrMo |
35CrMo |
|
|
35CrMo |
|
42CrMo |
42CrMo |
|
|
42CrMo |
|
20Cr2Ni4A |
20Cr2Ni4A |
|
|
20Cr2Ni4A |
|
20CrNiMo |
20CrNiMo |
|
|
20CrNiMo |
|
20CrNi2Mo |
20CrNi2Mo |
|
|
20CrNi2Mo |
|
40CrNiMo |
40CrNiMo |
|
|
40CrNiMo |
|
18CrNiMo7-6 |
18CrNiMo7-6 |
|
|
18CrNiMo7-6 |
|
17CrNiMo6 |
17CrNiMo6 |
|
|
17CrNiMo6 |
|
34 CrNiMo6 |
34 CrNiMo6 |
|
|
34 CrNiMo6 |
|
18Cr2Ni4WA |
18Cr2Ni4WA |
|
|
18Cr2Ni4WA |
|
18Cr2Ni4WE |
18Cr2Ni4WE |
|
|
18Cr2Ni4WE |
|
45 C |
45 C |
|
|
45 C |
|
40Cr |
40Cr |
|
|
40Cr |
|
38CrMoAl |
38CrMoAl |
|
|
38CrMoAl |
|
16Mn |
16Mn |
|
|
16Mn |
|
16MnCr5 |
16MnCr5 |
|
|
16MnCr5 |
|
GCr15 |
GCr15 |
|
|
GCr15 |
|
Module |
1mm-50mm |
||||
Accuracy |
DIN Class 4, ISO/GB Class 4, AGMA Class 13, JIS Class 0 |
||||
Standard |
DIN, ISO/GB, AGMA, JIS |
||||
Heat treatment |
Quenching and tempering, gear teeth induction quenching, nitriding, carburization |
||||
Application |
Wind turbine, locomotive, feeding machinery, metallurgy machinery, mining machinery |
||||
Gear shaft length |
2500mm max. |
||||
Weight |
15 tons max. |
||||
PRODUCTION PROCESS
Professional production team, production line, experienced technical experts who engaged in this industry for
more than 10 years. We have the professional production line for gears:
1.High speed milling machines
2.internal and external grinding machine
3. advanced equippment for producing gears
4.all kinds of machining center,NC lathing machine,shaper,hobbing machine
INSPECTION PROCESS
our quality control emphasis on APQP planning stage,pre strict quality recognition,make QCP quality plan make
preventive measures for quality issues that may occurred and focus tracking in the implementation process.focus
on the detailsof the quality process control.to ensure that meet or exceed customers quality requirements.
R&D ABILITY
our company owns more than 50 patents.our company has introduced several advanced engineering design
software and applied more than 30 new technologies and new processes. also,our company is certified by
ISO9001:2008 and ISO14001:2004.
1.suitable profile and lead modification makes meshing more perfect!
fessional modeling analysis softward,dynamic simulation technology can reduce the prophase test
processes,make the design more practical
|
OUR MAIN PRODUCT
| |
spur gear,helical gear,ring gear,gear shaft,planetary reducers,planetary reducer,timing pulley,pulley wheels | |
MIMING MACHINERY |
Material: 18Cr2Ni4WA 20cR2nI4a 17Cr2NiMo 20CrNiMo 12cRnI3 42CrMoA Heat treatment: Quenching and tempering+carburization,Nitridation,Quenching and tempering+carburization, quenching and tempering Gear quality level:ISO 1328 Grade 5,AGMA 2000-A88 Q12 |
AIR COMPRESSOR INDUSTRY |
Material:17Cr2NiMo6 Heat treatment:normalization+carburization Gear quality level:DIN 3962 Grade 5,AGMA 2000-A88 Q12 |
FOOD AND PROCESS MACHINERY |
Material: 17CrNiMo6 20CrMnMo 20CrMnTi 42CrMoA Heat treatment:Normalization+carburization,quenching and tempering Gear quality level:ISO 1328 Grade 6 |
PRECISION MACHINERY |
Material: 17CrNiMo6 20CrNiMo 20CrMnTi 42CrMoA Heat treatment:Quenching and tempering+carburization,Quenching and tempering Gear quality level:ISO 1328 Grade 6,JIS B1702 Grade 2 |
Our advantages:
Advanced production equipment
Small orders accepted
Delivery just- in -time
Successful cooperation
Professional technical R&D team
Send Inquiry to This Supplier
