hardened involute gear
- 150 Piece / Pieces per Month
- shanghai
- T/T L/C D/P D/A
- Metal nine-tooth gear shaft, metal shaft, nine-tooth gear shaft
- Molybdenum Disulfide Bilayer Helical Gear, Nylon helical gear, Silent gear
- Silver star-shaped sprocket, metal sprocket, star-shaped gear, silent chain sprocket
- Black star-shaped sprocket, plastic gear, star-shaped gear, silent chain sprocket
- Metal hexagonal gear, hexagonal inner bore, custom Gear
- 40Cr worm shaft, MN2.5 worm shaft, precision worm shaft, DIN 5 worm shaft
Product Details
Standard or Nonstandard: | Nonstandard | Tooth Profile: | Helical Gear | Direction: | Right Hand |
Material: | Steel | Processing: | Forging | Pressure Angle: | 20 |
Place of Origin: | Jiangsu, China | Model Number: | hardened involute gear-6178 | Brand Name: | NYY |
Product Description
Specifications
1.Timely delivery2.Professional manufacturer
3.Top-leveled design software
4.Advanced production equipment

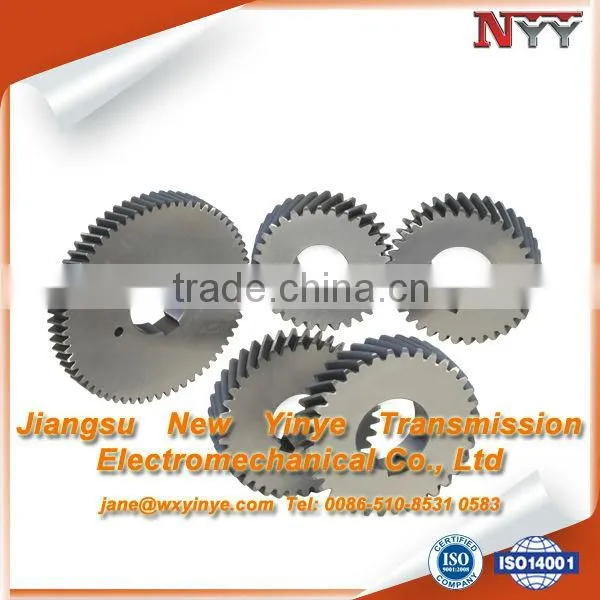

hardened involute gear
Jiangsu Yilian Gear Transmission Machinery Co.,Ltd is a hightechenterprise specializing in manufacturing high precision
involute cylindrical gears,dis-shaped helical gears,gear boxes and precision sheet metal products.
PRODUCT DETAILS | |
Product name | hardened involute gear |
Features | hard tooth surface |
Application | DIN grade 6 |
Tooth profile | involute+modification |
Material | 16MnCr5 |
Process | forging+carburizing +grinding |
Pressure angle | a=20° |
Model | Mn=3,Z=32,β=15°50′31″,a=20°,right hand; Mn=3,Z=59,β=15°50′31″,a=20°,left hand; Mn=6,Z=32,β=34°24′41″,a=20°,right hand; Mn=6,Z=35,β=34°24′41″,a=20°,left hand; Mn=5,Z=37,β=28°43′36″,a=20°,right hand; Mn=6,Z=36,β=28°43′36″,a=20°,left hand; Mn=4,Z=65,β=28°43′36″,a=20°,right hand; |
Original place | jiangsu,China |
Brand | NYY |
PROCESSING SCOPE
PROCESSING CAPABILITY | |||||
Material | Alloy Steel | Casting Steel | Gray cast iron | Ductile Iron | Weldment |
20CrMnTi | 20CrMnTi | HT200 | QT400-18 | 20CrMnTi | |
20CrMnMo | 20CrMnMo | HT250 | QT400-15 | 20CrMnMo | |
20 CrMo | 20 CrMo |
|
| 20 CrMo | |
35CrMo | 35CrMo |
|
| 35CrMo | |
42CrMo | 42CrMo |
|
| 42CrMo | |
20Cr2Ni4A | 20Cr2Ni4A |
|
| 20Cr2Ni4A | |
20CrNiMo | 20CrNiMo |
|
| 20CrNiMo | |
20CrNi2Mo | 20CrNi2Mo |
|
| 20CrNi2Mo | |
40CrNiMo | 40CrNiMo |
|
| 40CrNiMo | |
18CrNiMo7-6 | 18CrNiMo7-6 |
|
| 18CrNiMo7-6 | |
17CrNiMo6 | 17CrNiMo6 |
|
| 17CrNiMo6 | |
34 CrNiMo6 | 34 CrNiMo6 |
|
| 34 CrNiMo6 | |
18Cr2Ni4WA | 18Cr2Ni4WA |
|
| 18Cr2Ni4WA | |
18Cr2Ni4WE | 18Cr2Ni4WE |
|
| 18Cr2Ni4WE | |
45 C | 45 C |
|
| 45 C | |
40Cr | 40Cr |
|
| 40Cr | |
38CrMoAl | 38CrMoAl |
|
| 38CrMoAl | |
16Mn | 16Mn |
|
| 16Mn | |
16MnCr5 | 16MnCr5 |
|
| 16MnCr5 | |
GCr15 | GCr15 |
|
| GCr15 | |
Module | 1mm-50mm | ||||
Accuracy | DIN Class 4, ISO/GB Class 4, AGMA Class 13, JIS Class 0 | ||||
Standard | DIN, ISO/GB, AGMA, JIS | ||||
Heat treatment | Quenching and tempering, gear teeth induction quenching, nitriding, carburization | ||||
Application | Wind turbine, locomotive, feeding machinery, metallurgy machinery, mining machinery | ||||
Gear shaft length | 2500mm max. | ||||
Weight | 15 tons max. |
PRODUCTION PROCESS
Professional production team, production line, experienced technical experts who engaged in this industry for
more than 10 years. We have the professional production line for gears:
1.High speed milling machines
2.internal and external grinding machine
3. advanced equippment for producing gears
4.all kinds of machining center,NC lathing machine,shaper,hobbing machine
INSPECTION PROCESS
our quality control emphasis on APQP planning stage,pre strict quality recognition,make QCP quality plan make
preventive measures for quality issues that may occurred and focus tracking in the implementation process.focus
on the detailsof the quality process control.to ensure that meet or exceed customers quality requirements.
R&D ABILITY
our company owns more than 50 patents.our company has introduced several advanced engineering design
software and applied more than 30 new technologies and new processes. also,our company is certified by
ISO9001:2008 and ISO14001:2004.
1.suitable profile and lead modification makes meshing more perfect!
fessional modeling analysis softward,dynamic simulation technology can reduce the prophase test
processes,make the design more practical
OUR MAIN PRODUCT
| |
spur gear,helical gear,large steel ring gear,gear shaft,planetary reducers,planetary reducer,timing pulley,pulley wheels,gear wheel. | |
MIMING MACHINERY GEAR | Material: 18Cr2Ni4WA 20cR2nI4a 17Cr2NiMo 20CrNiMo 12cRnI3 42CrMoA Heat treatment: Quenching and tempering+carburization,Nitridation,Quenching and tempering+carburization, quenching and tempering Gear quality level:ISO 1328 Grade 5,AGMA 2000-A88 Q12 |
AIR COMPRESSOR INDUSTRY |
Material:17Cr2NiMo6 Heat treatment:normalization+carburization Gear quality level:DIN 3962 Grade 5,AGMA 2000-A88 Q12 |
FOOD AND PROCESS MACHINERY |
Material: 17CrNiMo6 20CrMnMo 20CrMnTi 42CrMoA Heat treatment:Normalization+carburization,quenching and tempering Gear quality level:ISO 1328 Grade 6 |
PRECISION MACHINERY |
Material: 17CrNiMo6 20CrNiMo 20CrMnTi 42CrMoA Heat treatment:Quenching and tempering+carburization,Quenching and tempering Gear quality level:ISO 1328 Grade 6,JIS B1702 Grade 2 |
Our advantages:
Advanced production equipment /Small orders accepted/Delivery just- in -time/Successful cooperation/Professional technical R&D team
Word famous top-leveled design software
