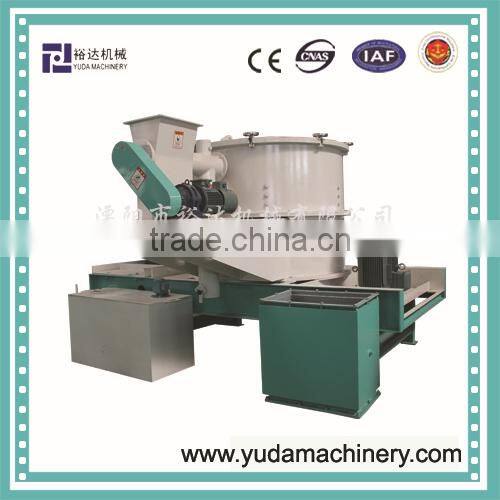

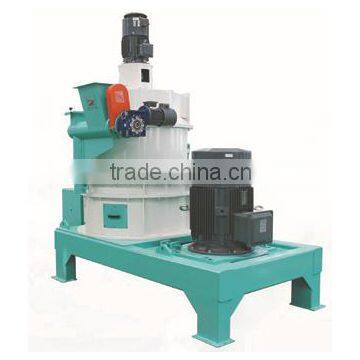

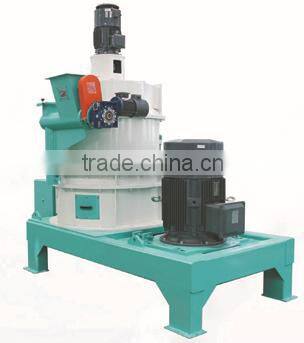

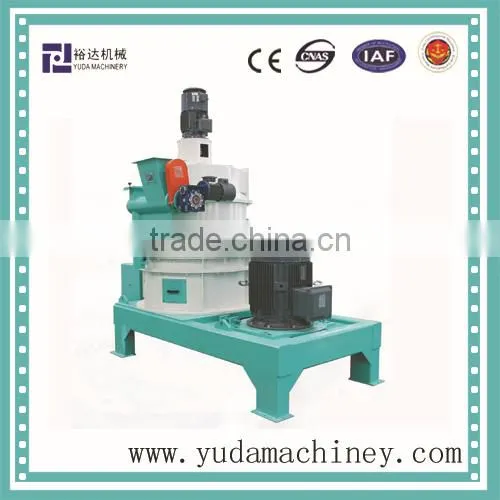

YUDA series SFWL82 vertical pulverizer
Liyang yuda machinery Co., Ltd.
Features:
-The machine has a compact structure and covers small area, with stable operation, and low vibration;
- No-screen structure, crushing and classification in the same sealed space, making a complete process, reduce the grinding energy loss;
-Unique crushing plate structure, high output;
-Advanced classification system, high classification efficiency;
-Large operating door structure, convenient to maintain;
-Unique hammer knife installationreplacing hammer knife more quickly;
-The new structure of hammer knife, effectively reduce the cost;
-Granularity is adjustable, the wind sorting, shipping material low temperature;
-Granularity of 60-300 mesh continuous adjustable, can meet the special requirements of superfine grinding;
-Equipped with special silencer, can greatly reduce the noise;
-Unique arch breaker, prevent knot arch when feeding material
Technical Parameters:
Model | Capacity t/h | Speed of main shaft r/min | Speed of of grading shaft r/min | Dia. of rotor mm | No. of narrow v-belt transmission | Main motor power kw | Selected motor power kw | Feeding motor power kw |
SFWL82 | 1.2-2.2 | 3110 | 100-1000 | 820 | 6 | 75~90 | 5.5 | 1.1 |
SFWL110 | 1.5-2.8 | 2340 | 100-1000 | 1100 | 8 | 90~110 | 7.5 | 1.5 |
SFWL130 | 2.2-3.6 | 1980 | 100-1000 | 1300 | 8 | 132~160 | 11 | 1.5 |

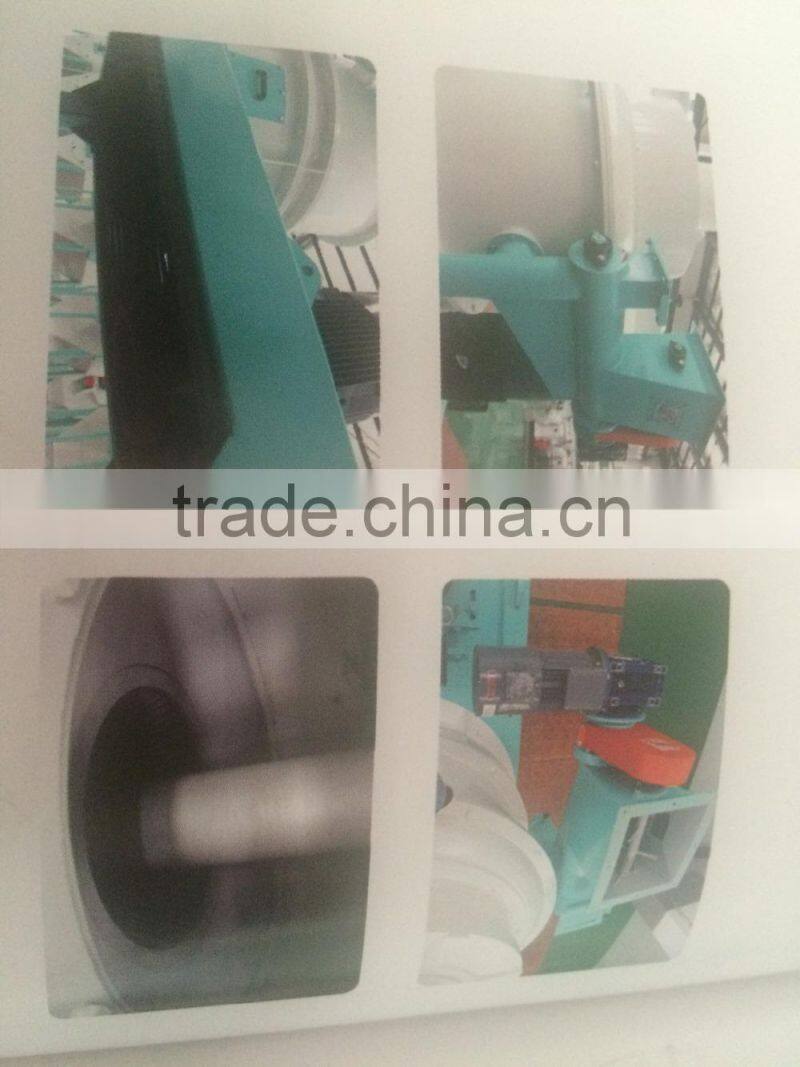

Pictures:
Yuda Machinery Co., Ltd uses advanced product equipment and technology.
- German software CNC flame cutting machine
- H section steel shot blasting cleaning machine
- International advanced cutting, driling, bending equipment
- Equipment for coating production line of the lacquer that blake
Several machines have got patent. Besides, our factory is the feed machinery engineering technology research center Changzhou. We have professional engineers to guide the installation and commission.
Good engineer team in YUDA is the guarantee for us to get your option and easy for communication with foreign customers.
Besides, we have strict technical inspection to every product in order to ensure quality of our machines.

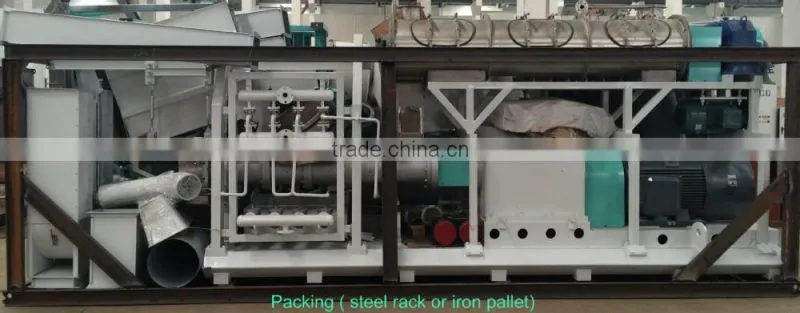

Packing:
steel rack, iron pallet, also can be customized

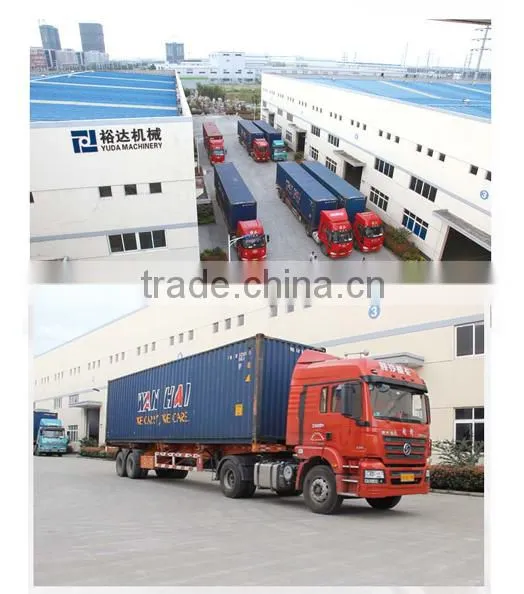

Shipping( Containers):
