Plastic Inverter Welding Machine
- Ningbo/Shanghai and so on
You May Like
Product Details
| Condition | New | Place of Origin | Zhejiang, China | |
| Brand Name | SONSCN | Model Number | ARC180 | |
| Arc Current | 10-180A | Pulse Frequency | 50~60HZ | |
| Pilot Arc Current | 30A | Rated Duty Cycle | 35@180A,60@140A | |
| Motor Type | DC Motor | Dimensions | 31X13X20cm | |
| Usage | Stick electrode welding | Voltage | 220V | |
| Power(W) | 5.4KW | Certification | CE | |
| Warranty | 12 months | After-sales Service Provided | Overseas service center available |
Product Description

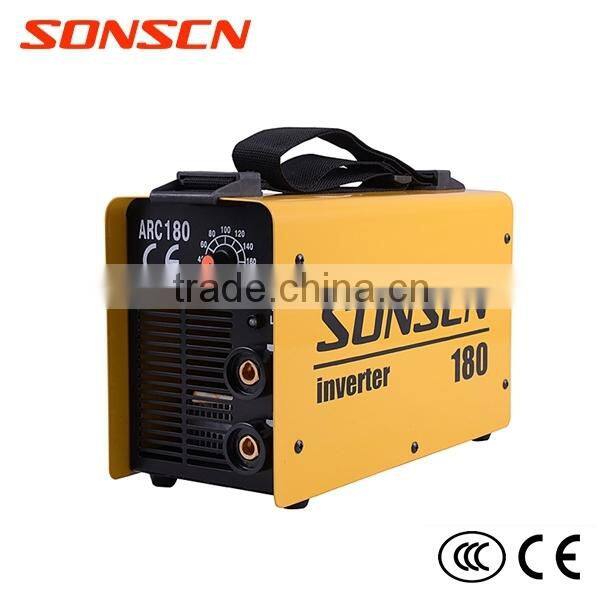

placstic inverter welding machine (ARC180)
Technical parameter
| Model | ARC180 | Input voltage | 50/60hz(1ph) |
| 230V±10% | |||
| Rated input current | Max.24A | No-load voltage | 80V |
| Eiffciency | 85% | Input power | Max.5.3kw |
| Current range | 10-190A | Duty cycle | 60% |
| Welding rod | 1.5-4mm | Welding suit | 1.5-10mm |
| Dimensions | 31x13x20cm | Weight | 4.7kgs |
| Protection class | IP21 | Standard | CE |
| Trademark: | OEM/SONSCN |

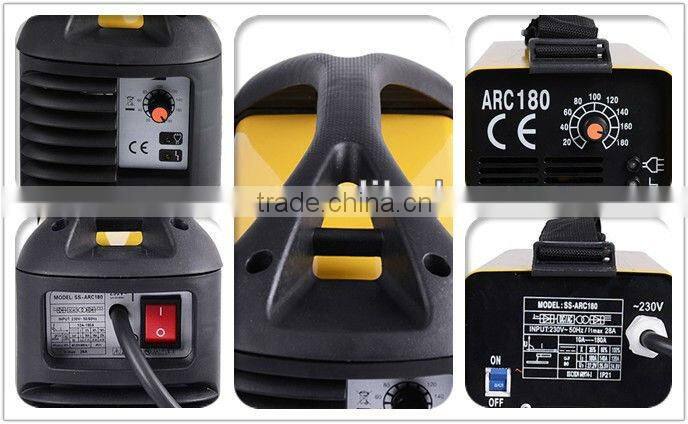

Product pictures
Product information
Product specifications:
1. IGBT inverter technology: Adopt advanced inverter technology which is characterized by
an ultrapowerful welder with smaller size and lighter weight(4.5kgs) but also guarantee its high
utilization rate of the power.
2. Light and Handy: Design with portability and outdoor use in mind,handle (or shoulder strap) on top allows you to carry the unit to everywhere.They are ideal machines suitable for small scale construction work,upholster industry,high altitude,field operation,repairing and the home handyman.
3. Hot start: Gives easy perfect arc initiation.
4. Fan cooled: Double fan minimize the intake of particle content,improve the duty
cycle,welding performance and extending the life.
5. Overload protection: Perfect self-protective function in cases of over-voltage,
low-voltage,over-current, over-heat;safe and reliable.
6. Suit for all kinds of basic welding rod,including acidity,alkalescence and cellulose
covered electrode.
7. Suit for carbon steel,stainless,alloy steels and other require
