Specifications
Foam Insulation Sheet for Wall Phenolic Panel1 Free Sample
2 OEM
3 Fast delivery
Foam Insulation Sheet for Wall Phenolic Panel
1. Description
Phenolic Foam Block is a highly efficient energy saving insulation material, with good thermal conductivity and fire resistance. Phenolic Foam Block has passed the E84/BS fire tests according to ASTM standards with proven results of 10 flames spread and 0 smoke develop which complies to most of the North American and European building inspection standards.

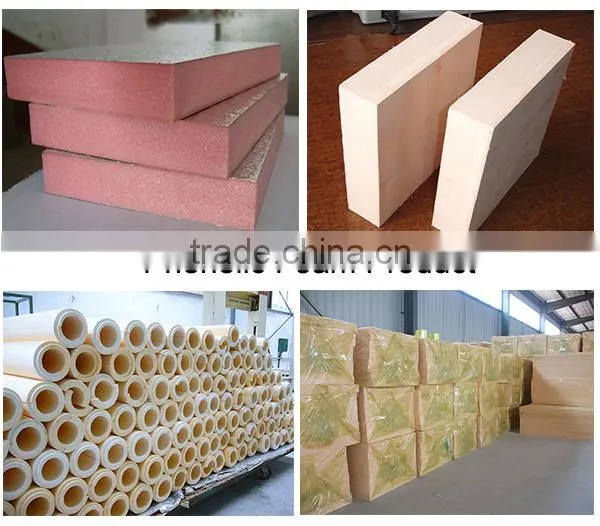

By using CNC Cutting Machines, Phenolic Foam Block can be cut into specific pipe insulation sections, pipe support, and insulation boards.
2.Technical Parameters
Density |
25-300Kg/m3 |
|
Length |
1.2mm |
|
Width |
0.6m |
|
Thickness |
30mm-150mm |
|
Thermal Conductivity |
0.016-0.035w/cm.k |
|
Working Temp |
-160 to +190degree |
|
Ranking Fire |
A1 |
|
Water absorption |
in 24 hours short term |
less than 2% |
3.Applications
Used in HVAC system as air duct insulation board or Pre-insulated Duct Board
Used in process/petrochemical applications for the insulation of pipework, tanks, vessel

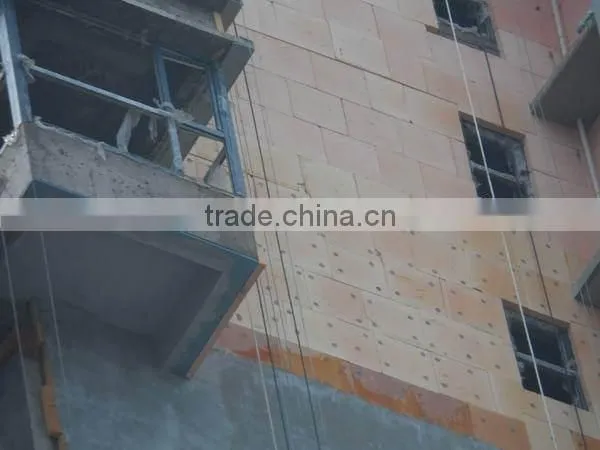

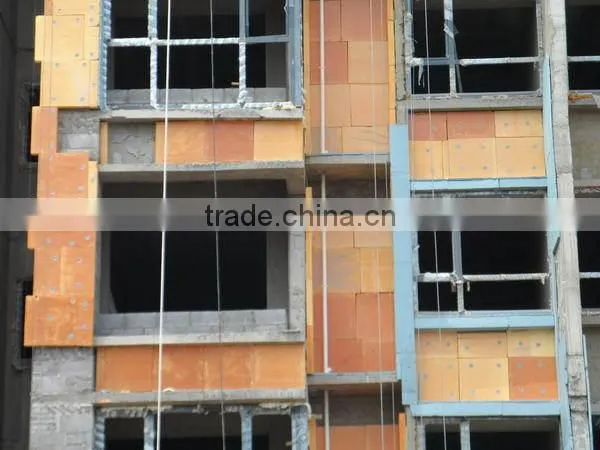

Used in roofing, cavity board, external wall board, plasterboard dry lining systems, wall insulation, floor insulation and as a sarking board
Specialised applications including fire doors, highly fire resistant panels and for insulation in surface ships, off-shore installations and submarines.
