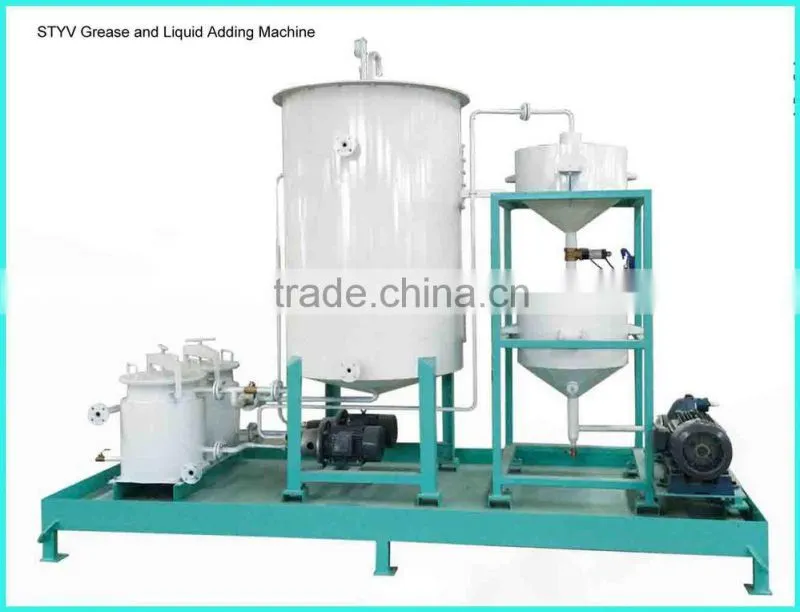

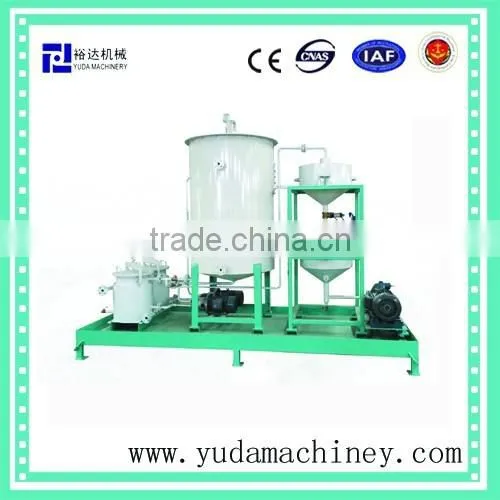

100KG SYTV series grease and liquid additive system
Main parameters of grease and liquid additive system:
Model |
Max weighing |
Oil tank |
Adding precision |
Adding speed |
Oil inlet power |
Oil outlet power |
50 KG |
50 KG |
1 ton |
± 1% |
63 L/min |
3KW*2 |
3 KW |
100 KG |
100 KG |
2 ton |
± 1% |
100 L/min |
3KW*2 |
5.5 KW |
Note: capacity is matched with mixer.
Description of grease and liquid additive system:
1. This grease and liquid additive system is used in adding oil or other liquid in feed when mixer works, which is suitable for batch type.
2. The largest amount of the liquid filling is generally not exceed 3% of the capacity of the mixer, otherwise it will influence granulating effect.
3. If it needs add more than 3%, should be oil spraying pellet after granulating.
4. The grease additive system adopts high precision liquid weighing way, programmable control system, users only need to input amount and add signal, the system can automatically add.
5. This liquid additive system equipped with double pass filter system in pipe line, can work continuously.
6.This liquid additive system has the advanced structure, high precision of add, operation, maintenance is convenient, etc.
Advantages of grease and liquid additive system:
1,The grease additive system uses load cell and computer to keep accuracy.
2,The dual filtration system makes sure that pollution discharge do not influence its work.
3,The grease and liquid additive system has advanced structure, with high accuracy.
4,The liquid additive system is reliable easy to operate and repair, well anti-interference performance, high degree of automation.

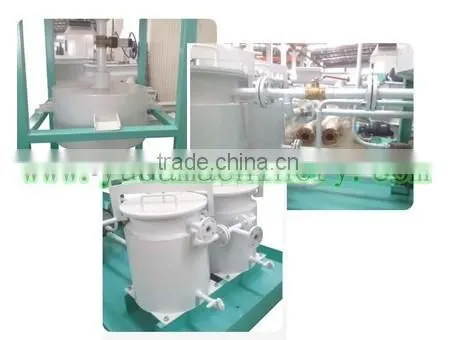

Details of grease and liquid additive system:
Grease and liquid additive system equipped with mixer:
Packing:
steel rack, iron pallet, also can be customized
Shipping( Containers):
We have series crusher, mixer, pellet mill, cooler, crumbler, sifter, extruder, elevator, conveyor, cleaner, packing machine and so on.
We also have biomass machinery for biomass fuel:
Besides, we have some turn-key projects.
All above-showed are small parts of our company.
We welcome you to visit our factory. And Please feel free to contact with me.
