Home > Security & Protection > Surveillance, Control & Protection > CCTV Camera > IR Low Speed Dome IP Camera SA6803L-IR ip Camera Software

IR Low Speed Dome IP Camera SA6803L-IR ip Camera Software

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

SSG

Model Number:

SA6803L-IR

Contact Supplier Request Quote Chat Now

Shenzhen Security Sunlight Electronic Corp., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name SSG

Model Number SA6803L-IR

Type Digital Camera

Style Dome Camera

Sensor CMOS

Technology Other, HD

Specifications

1. Built-in SONY/LG integration camera
2. Support Color/BW mode converting; 36 IR LEDs, IR distance 100 m

IR Low Speed Dome IP Camera SA6803L-IR

1.Basic Description
SA6803L-IR series based on IP network, achieve network digital surveillance, transmit clear, smooth video surveillance images.

SA6803L-IR series built-in HD integration camera, advanced H.264 codec, Supports dual streaming, Transmit high-quality H.264 video in the low-bandwidth network environment smooth , also supports MJPEG compression; high performance precision Integration camera achieve zoom, with built-in full-speed PTZ, Suitable for large-scale, multi-angle surveillance and Continuous tracing target; Support Color/BW mode converting, Particularly suitable for outdoor illumination of low environmental;Support audio, alarm ,IR-CUT function,TF card storage,provide third-party systems integration interface.
The series use high-strength aluminum alloy shield, integrated dome design; Protection grade:IP66; Built-in temperature control device (fan and Optional heater),Suitable for bitter cold and scorching heat, and other harsh environments (Outdoor mold).

Apply to forests, scenic, highway, railway, airport, port, square, park, street, railway stations, stadiums, residential district and other places. Provide 720P HD video image, in the indoor / outdoor low illumination environment with excellent reduction ability.

With video surveillance system software platform, can realize different network environments of large-scale network surveillance.

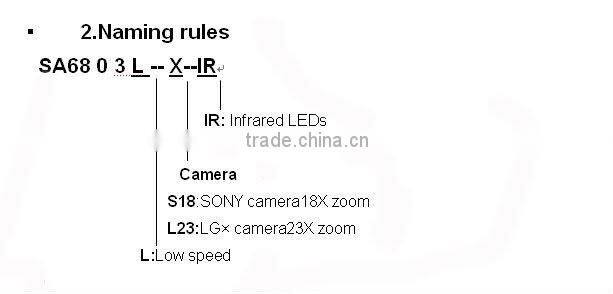

3.Expand Type
Basic:SA6803L-S18-IR,SA6803L-S18N-IR
SA6803L-L23-IR,SA6803L-L23N-IR

4.Key Features

* Built-in SONY/LG integration camera
* Max resolution: 704*576
* Horizontal speed: 6º~14º/sec
* Support Color/BW mode converting; 36 IR LEDs, IR distance 100m
* H.264/MJEG is optional, dual streaming,high compression ratio,and high quality.
* Support Micro SDHC storage; SD2.0 standard
* Auto focus,manual priority; Auto iris, manual priority
* Manual control of speed and lens focal length is proportional, ensure smooth and accurate search target
* Horizontal rotation range: 360°, Vertical rotation range :180
* Preset positions: 64
* Auto Scan, Horizontal /Vertical rotation range angle can be set,scanning speed adjustable
* Patrol: 4 groups, each patrol up to 16 presets
* Power off memory function
* Title, date and time, stream information, azimuth angle, zoom display
* Support motion detection, network fault detection and alarm video, image snapping
* Built-in Web server enables the use of a standard Web browser for viewing and management
* Quick and easy electrical connection
* Protection grade:IP66
* Built-in surge voltage protection and lightning protection devices
* Installation: indoor/outdoor wall-mounted, Ceiling mounting
* Support ONVIF protocol

5.Applications Scenarios
Applicable to forests, scenic, highway, railway, airport, port, square, park, street, railway stations, stadiums, residential district and other places.
