High Quality Wireless Outdoor Pir Detector

US$ 1 - 2 MOQ: 5 Sets

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

SSG

Model Number:

SSG-SSGB

Shenzhen Security Sunlight Electronic Corp., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name SSG

Model Number SSG-SSGB

Usage Other, security protection

Specifications

High Quality wireless outdoor pir detector
1.Detection distance:50~250m
2.Low false alarm rate
3.CE,FCC

High Quality wireless outdoor pir detector

Synchronized Pulsed Beams
99.5% Beam Blocking Stability
Frost and Dew Protection
High Grade Aspherical Lens
LED Indicators for Quick Allignment
Adjustable Beam Interruption Period
A. G. C(Automatic Gain Control) Circuit
Detection method: Active Infrared Beam
Beam characteristics: Pulsed infrared dual beams
Interruption period: 50~700m sec(selectable)
Power input: DC12~24V/AC11~18V
Current consumption: 70mA max/80mA max/90mA max/100mA max/100mA max
Alarm period: 2Sec(± 1)nominal
Alarm output: Form C relay (AC/DC 30V 0.5A max)/also can do wireless
Tamper switch: N. C. Opens when cover is removed (receiver only)
Environment humidity: 95% max
Alignment angle: ± 10° Vertical, ± 90° Horizontal
Mounting: Wall or pole
Weight: 2168g(Both transmitter and receiver)
Dimension: 285*90*96mm
Appearance: PC Resin(Black)

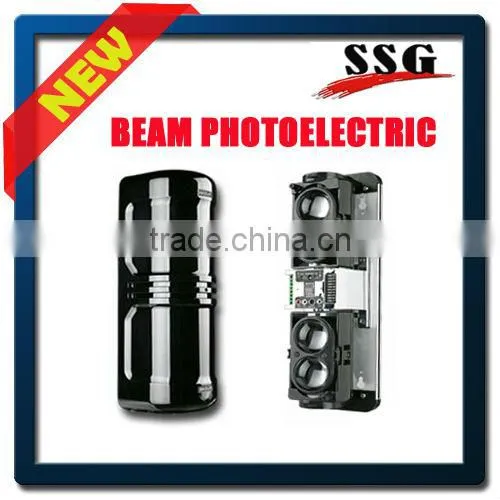

Beam photoelectric detector:

The beam photoelectric detectors is designed for indoor and outdoor applications.Consisting of a separate transmitter and receiver, they are designed to activate an alarm when an intruder passes within the direct line of sight between the transmitter and receiver.it is full compatible with SSG central control panel,with relay output when activated,wired or wireless connecting to central panel optional.

Full compatible with SSG central control panel,wired or wireless connecting optional
