Home > Products > DC Centrifugal Fan > dc 24v 48v centrifugal fan 225*99mm

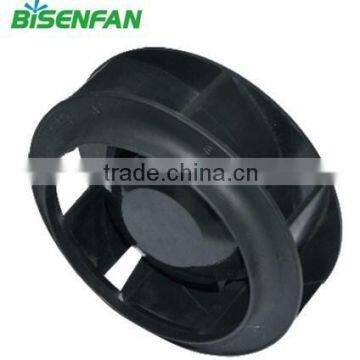

dc 24v 48v centrifugal fan 225*99mm
USD $35 - $40
/ Piece
5 Pieces(Min.Order)
- 1000 Piece / Pieces per Month
- Shenzhen
- T/T Credit Card
You May Like
-
120mm 220v ec axial fan 120*120*25mm
-
EC 220V 92*92*38mm high performance axial fan for welder machine product
-
EC Fan 120x120x38mm AC-DC Axial Cooling Fan 12038 with PWM function
-
2015 new product high air flow EC 120*120*38mm fan with PWM/FG
-
EC 220v High speed quality axial fan 120*120*80mm for equipments
-
2015 new EC 220V 80*80*38mm cooling fan with high air flow
Product Details
| Electric Current Type | DC | Blade Material | Plastic | |
| Mounting | Duct Fan | Place of Origin | Guangdong, China | |
| Brand Name | Bisenfan | Model Number | BDB22599H24 | |
| Power | 108W | Voltage | 24V | |
| Air Volume | 650CFM | Speed | 2600RPM | |
| Certification | CE, ROHS | After-sales Service Provided | Overseas service center available |
Product Description
Product Description

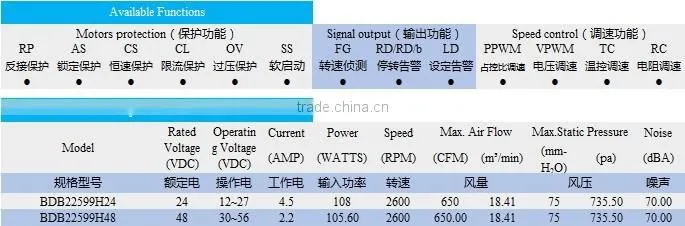

dc centrifugal fan parameters
dc centrifugal fan 225*99mm P-Q Curve
225*99mm dc fan Dimension drawing(mm)
Remarks:
1). The models in the list are common specifications, voltage and speed can be customized as customer requirements,Welcome to ask samples.
2). Final products specifications is subject to the Approval Sheet. Please pay attention updated products information in our website.
