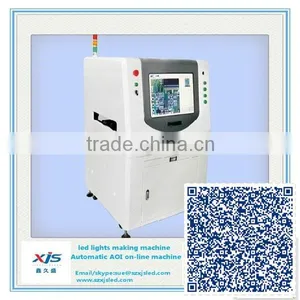

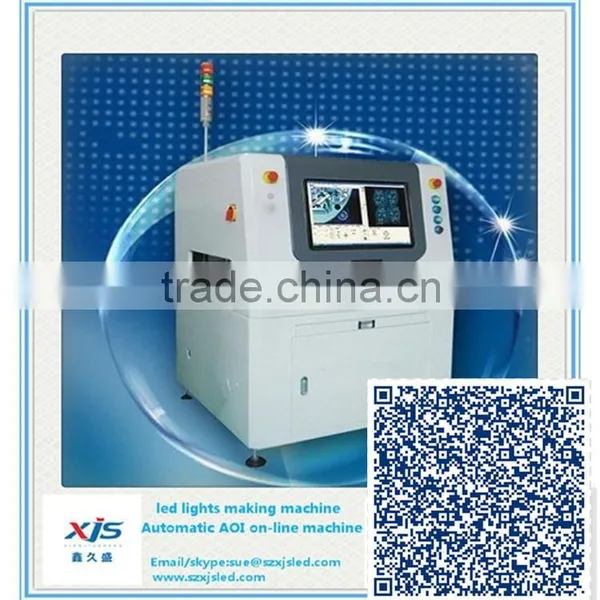

inline aoi
Aoi machine
specifications of Aoi System of High Precision
Product Specifications | |
Programming mode |
Automatic write, manually write, CAD data import, automatic mapping component library |
Detection Mode |
Detection coverage optimization of the entire board. Puzzle and multi mark. Containing Back Mark function |
Detection Type |
Whether the solder paste printing, offset, less tin, more tin circuit. Even tin. Pollution and other parts defects missing parts, offset, skew, tombstone, Celi, turning parts, wrong parts, damaged, back and other small tin tin solder joint defects, Weld, and even tin, copper PCB pollution black pad , separation, lack of copper foil (chipout), oxidation (the machine features) |
Image recognition |
Automatic setting its parameters (such as offset, polarity, short circuit, etc.) according to different testing requirements |
SPC and process transfer |
The whole record test data and statistical analysis can be viewed in any area of production conditions and quality analysis |
PCB size |
50×50mm(Min)-400×400mm(Max)It can be customized according to a larger size |
PCB Curvature |
3% <5mm or PCB diagonal |
PCB Part height |
Top: <40mm below <60mm |
PCB Transmission |
Bottom-up fixed needle top function automatically compensates for PCB distortion, automatically into and out of the plate. Automatically adjust the width |
Positioning accuracy |
<10um |
Movement speed |
800mm/sec(Max) |
The image processing speed |
0201 chip<9ms |
Camera and lighting system |
1600 * 1200 pixel full-color high-speed digital CCD camera, ytterbium head resolution 18um, three-channel white LED light or RGB light source |
Drive System |
Ac servo motor systems, precision ground ball screw |
Minimum part test |
0201 chip & 0.3pitch IC |
Calculation Method |
Color operation, color extraction, gray scale computing, image contrast, etc. |
Output Display |
22-inch widescreen (16: 10,1680 * 1050 resolution) HDMI display |
Network communication |
support |
Data Transfer Tool |
Support CAD, Excel, Txt and other common formats |

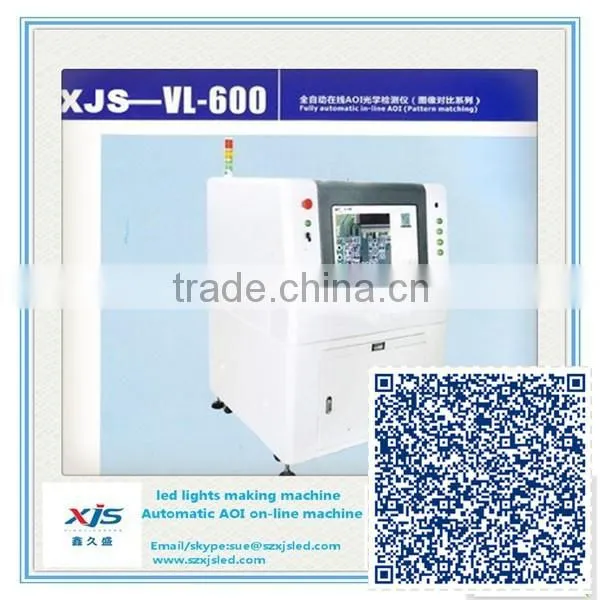

Machine Model |
XJS-VL-600(ON- LINE) |
Weight |
600KG |
Equipment Dimensions |
1000×1020×1400mm |
Equipment |
Complies with CE safety standards |
Pressure Requirements |
0.49MPa |
specifications of Aoi System of High Precision
Product Specifications | |
|
Programming mode |
Automatic write, manually write, CAD data import, automatic mapping component library |
|
Detection Mode |
Detection coverage optimization of the entire board. Puzzle and multi mark. Containing Back Mark function |
|
Detection Type |
Whether the solder paste printing, offset, less tin, more tin circuit. Even tin. Pollution and other parts defects missing parts, offset, skew, tombstone, Celi, turning parts, wrong parts, damaged, back and other small tin tin solder joint defects, Weld, and even tin, copper PCB pollution black pad , separation, lack of copper foil (chipout), oxidation (the machine features) |
|
Image recognition |
Automatic setting its parameters (such as offset, polarity, short circuit, etc.) according to different testing requirements |
|
SPC and process transfer |
The whole record test data and statistical analysis can be viewed in any area of production conditions and quality analysis |
|
PCB size |
50×50mm(Min)-400×400mm(Max)It can be customized according to a larger size |
|
PCB Curvature |
3% <5mm or PCB diagonal |
|
PCB Part height |
Top: <40mm below <60mm |
|
PCB Transmission |
Bottom-up fixed needle top function automatically compensates for PCB distortion, automatically into and out of the plate. Automatically adjust the width |
|
Positioning accuracy |
<10um |
|
Movement speed |
800mm/sec(Max) |
|
The image processing speed |
0201 chip<9ms |
|
Camera and lighting system |
1600 * 1200 pixel full-color high-speed digital CCD camera, ytterbium head resolution 18um, three-channel white LED light or RGB light source |
Drive System |
Ac servo motor systems, precision ground ball screw |
Minimum part test |
0201 chip & 0.3pitch IC |
Calculation Method |
Color operation, color extraction, gray scale computing, image contrast, etc. |
Output Display |
22-inch widescreen (16: 10,1680 * 1050 resolution) HDMI display |
Network communication |
support |
Data Transfer Tool |
Support CAD, Excel, Txt and other common formats |
|
Machine Model |
XJS-VL-600(ON- LINE) |
Weight |
600KG |
Equipment Dimensions |
1000×1020×1400mm |
|
Equipment |
Complies with CE safety standards |
|
Pressure Requirements |
0.49MPa |
Advantages of Aoi System of High Precision
*Application of SMT production line process all the visual detection phase of low-cost and high-performance testing equipment, set up after the paste is printed Elsie, Front and rear furnace plurality of detection positions, a machine with many functions
*Complete automated programming based on CAD data to automatically search the component library
*Puzzle with multiple mark, including Bad mark function
*It can detect a variety of models board species, the camera automatically recognize Mark points, Barcode and OCV (text), according to the recognition results with automatically calls the associated program.
Test Step of Aoi System of High Precision
Application of Aoi System of High Precision
A:PCB testing :
B: Solder paste print inspection:
C: Placement inspection:
D: Reflow inspection:
Best selling types Aoi System of High Precision
Packaging and shipping of Aoi System of High Precision
Packed in Wooden Case
( Packaging can be packed with the requirements of buyers.)
Aoi System of High Precision
Our services
1.We will reply your inquiry within 12 hours.
2.Excellent design team with designers of more than 12 years experience, can offer professional advice for practical application;
3.8000,000 pcs light source annual production capacity, the products export to Europe, South America, Russia, etc;
4.We offer OEM&ODM services. Can print your own logo on product , can customize the retail box packing and other things.
5.The goods will be tested before sent to you.
6.For the goods you ordered, we will pay attention to the appearance and performance.
Aoi System of High Precision
About us
Shenzhen Xinjiusheng Automation Equipment Co.Ltd., founded in 2010, is a hi~tech enterprise which research and development, production, sales, and owns subsidiary corporations such as Shenzhen Xinjiusheng Lighting Technology Co.Ltd. Our factory is located in shenzhen Bao'an district , with a total area of more than 3000 square meters and over 100 staff . Our sales department is located in the centre of Nanshan district, Shenzhen, which is a prosperous area with convenient transportation. Our main products are SMT pick and place machine,LED panel lights, LED tube lights, LED down lights and so on. For further information, please feel free to contact us.

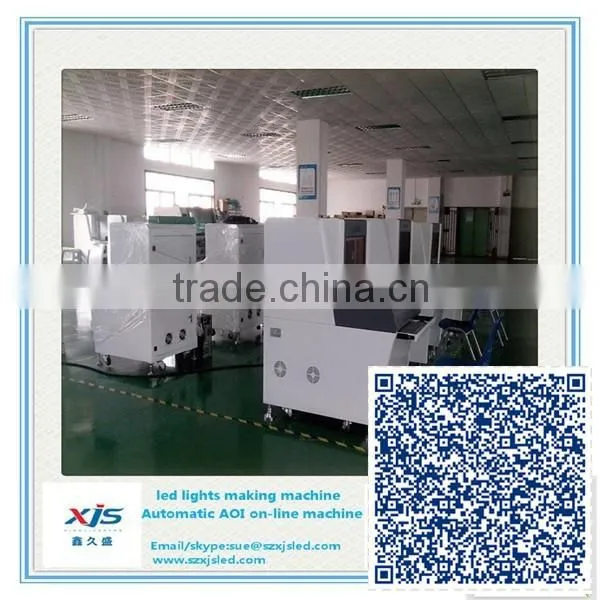

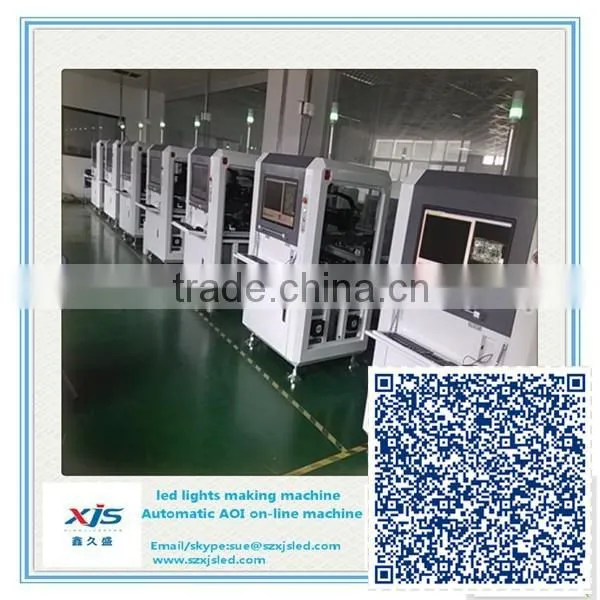

Our sucessful cases
Main Products
AOI on-line machine
SMT pick and place machine
Lead-free Reflow Soldering
Aging stand
Semiautomatic solder paste printing machine
LED down light ,led ceiling light, LED flood light,LED high bay light,
LED street light,LED corn lights,LED decorative soft strip lights
and bar lights,LED spotlights,LED panels,LED Tube lights,
LED board lights,LED bulb light,other residetial and commercial LED lights.
If you have any interest to our LED lighting products,Pls kindly contact us.
