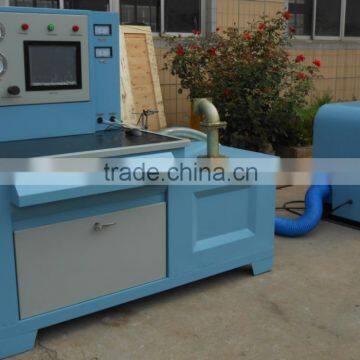

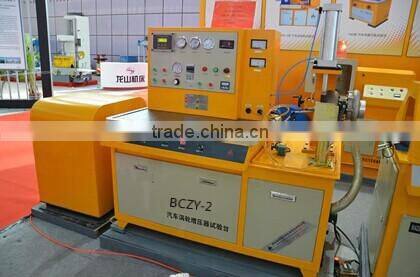

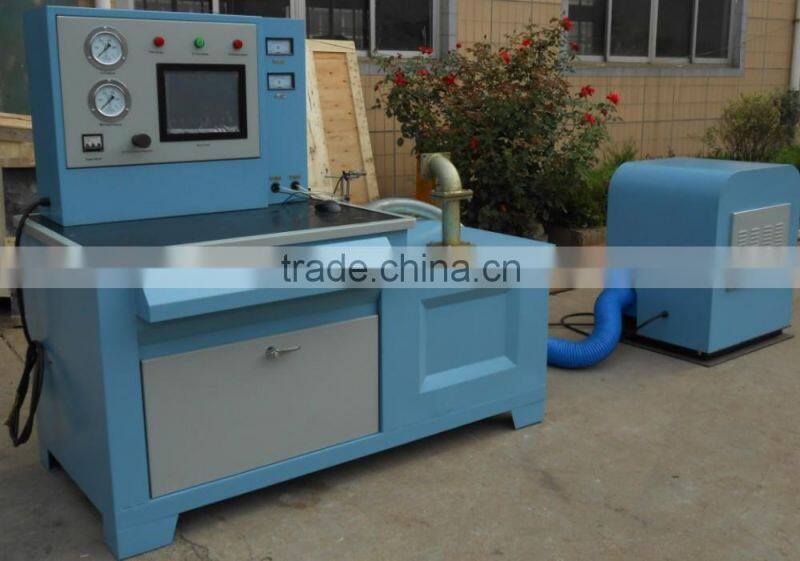

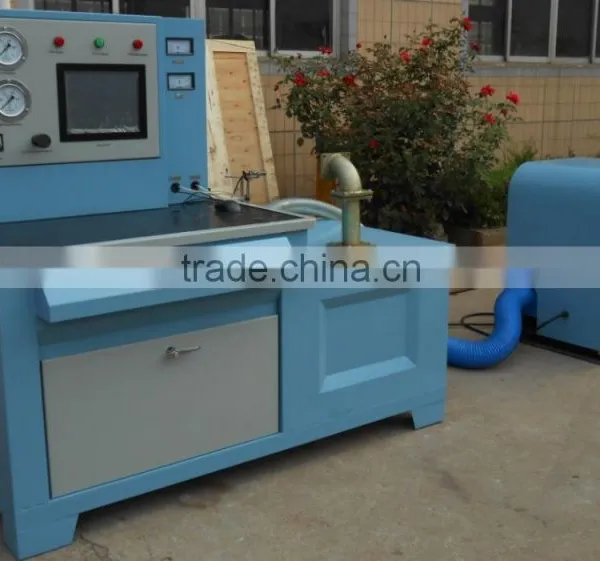

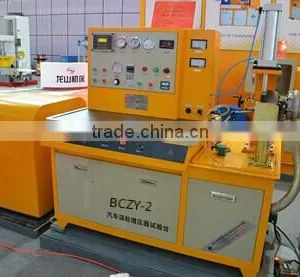

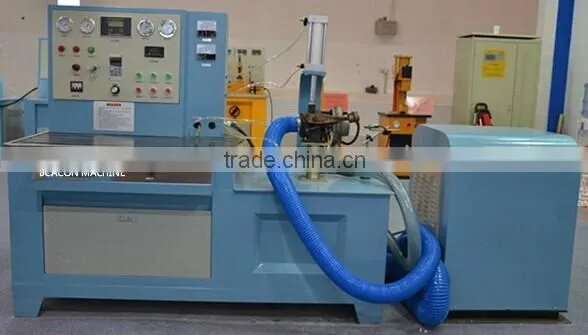

BCZY-2C Model Automobile Turbocharger Test Bench
1.Function Introduction

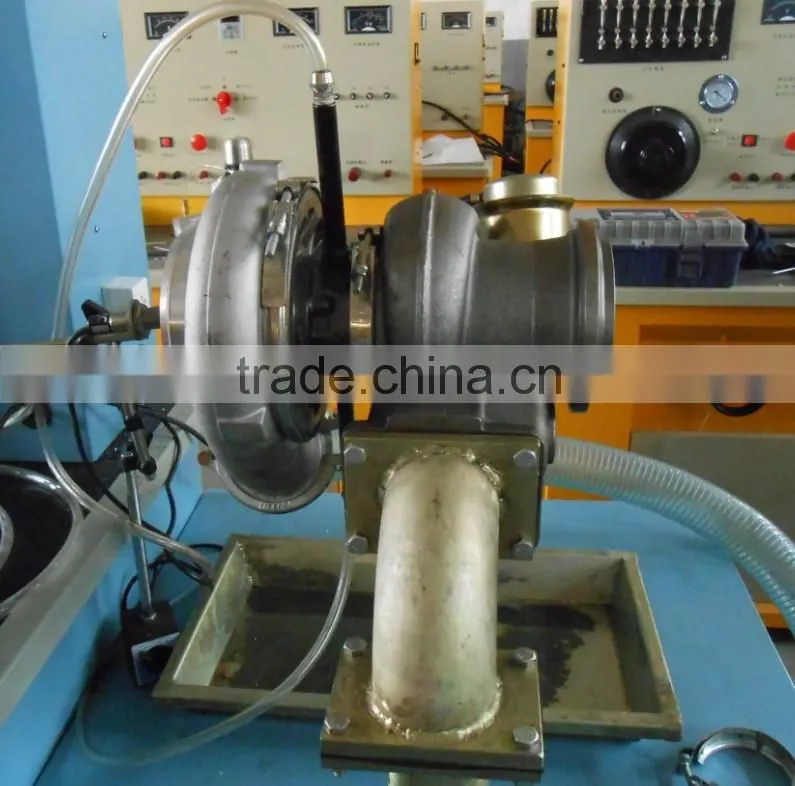

This test bench is applicable for testing performance of turbocharger on various models vehicles and can carry out dynamic test of boost pressure, air flow and lubrication of turbocharger.
It can carry out contrast test of inlet & outlet air pressure difference of various turbochargers and read the values

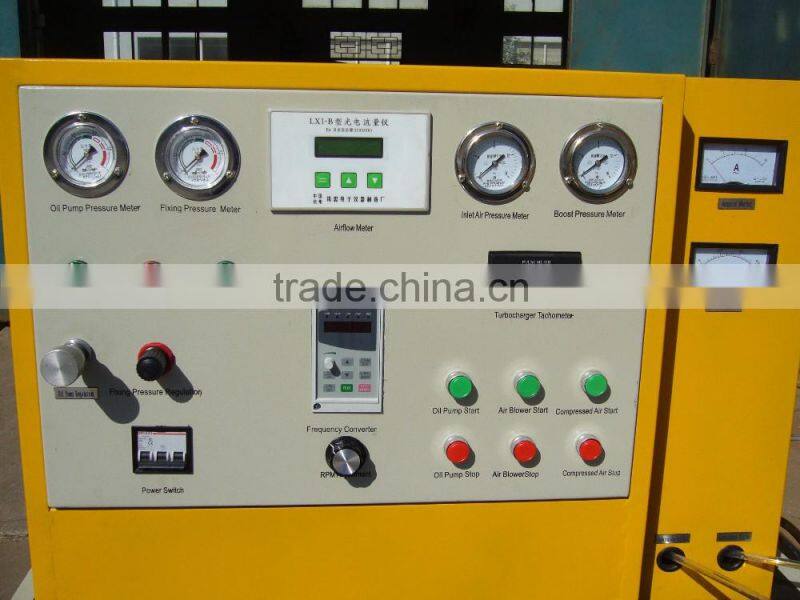

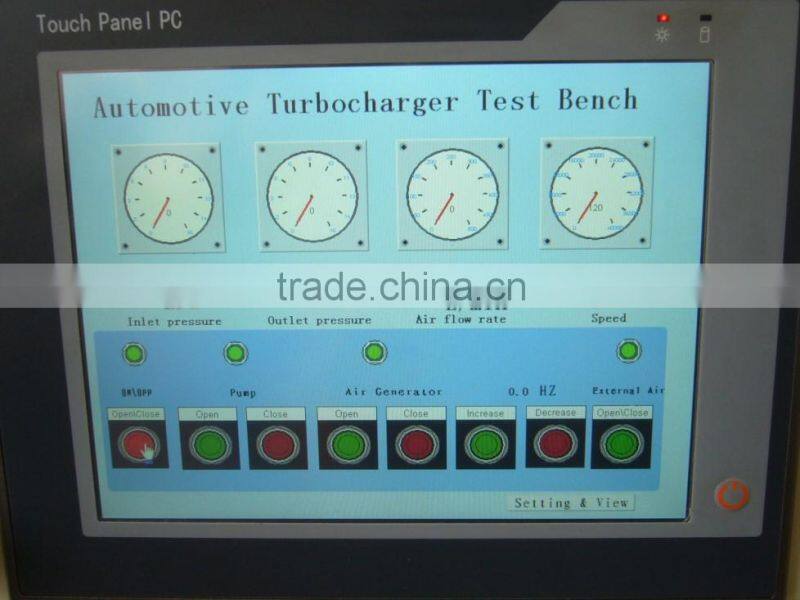

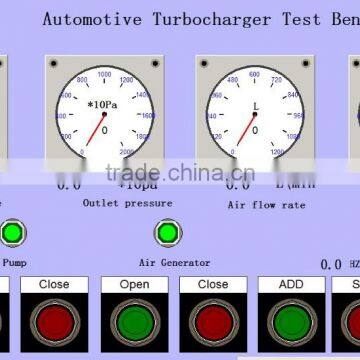

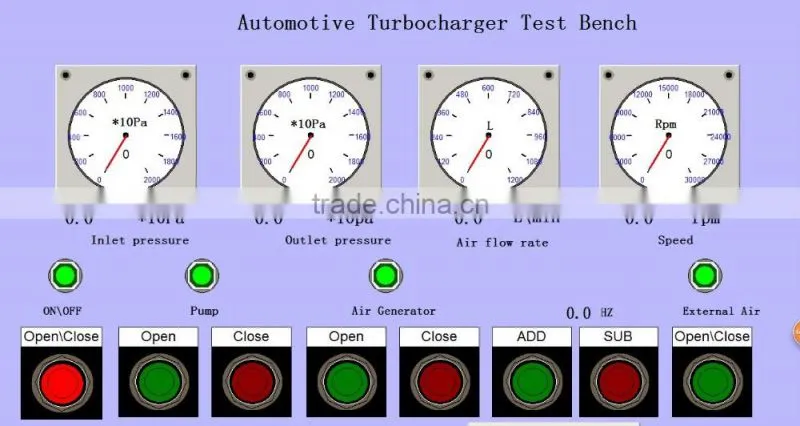

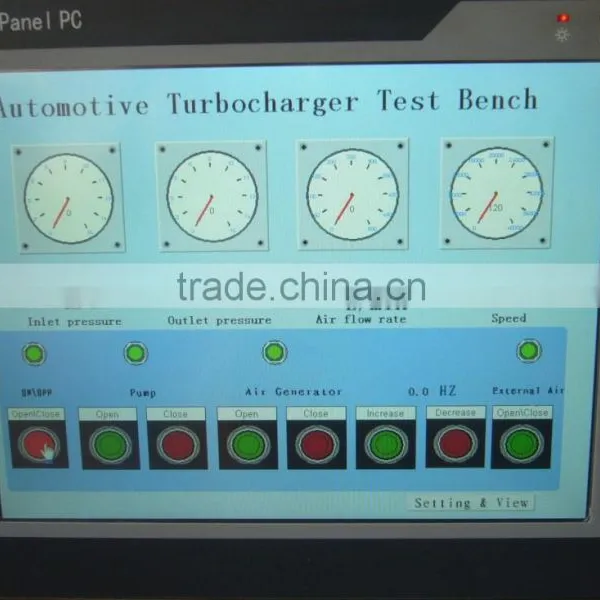

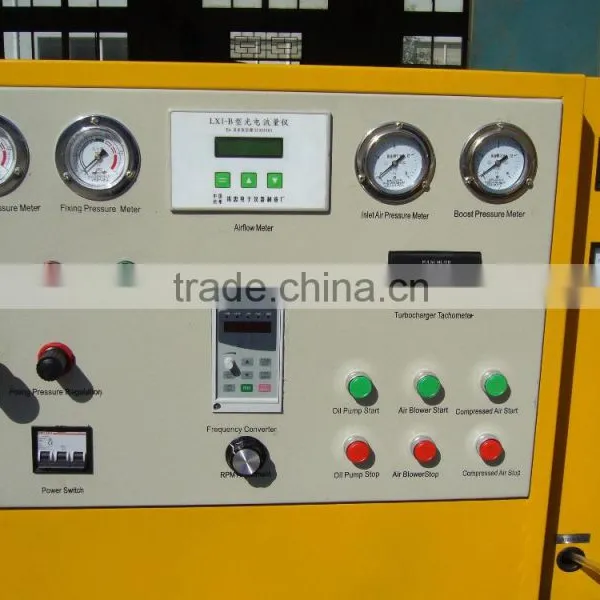

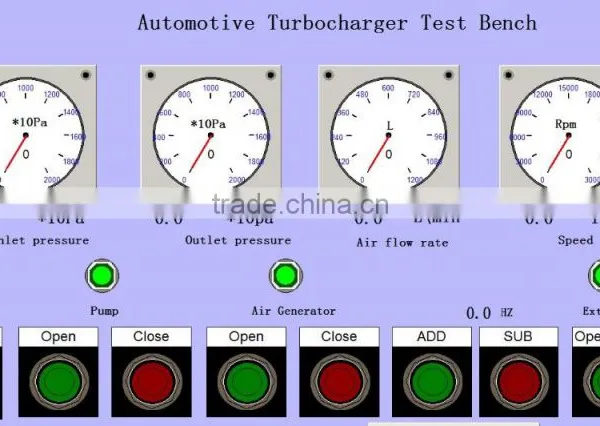

It adopts the advanced touch screen, control the test by touching the screen and read the test data immediately.
Soft keyboard inside, it can number, store and keep file for reference of the tested turbocharger, and print the test result and wave form curve with a printer. It achieves comprehensive dynamic test and data record of turbocharger.
2. Technical Parameter
Power: AC AC380V 50HZ (made to Measure)
Power of airflow generator: 5.5KW (made to order)
Frequency converter power: 7.5KW
RPM of airflow generator: 0--20000r/min
Maximum air pressure of airflow generator: 5KPa
Maximum flow rate of airflow generator: 1500m³/h
Power of oil pump motor: 750W
Rated pressure of oil pump: 0.3MPa
Maximum displacement of oil pump: 15L/min
